Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the secondary AIR valve bracket bolt.
  3. Loosen the oil level indicator tube nut.
  4. Pull the oil level indicator tube from the crankcase.

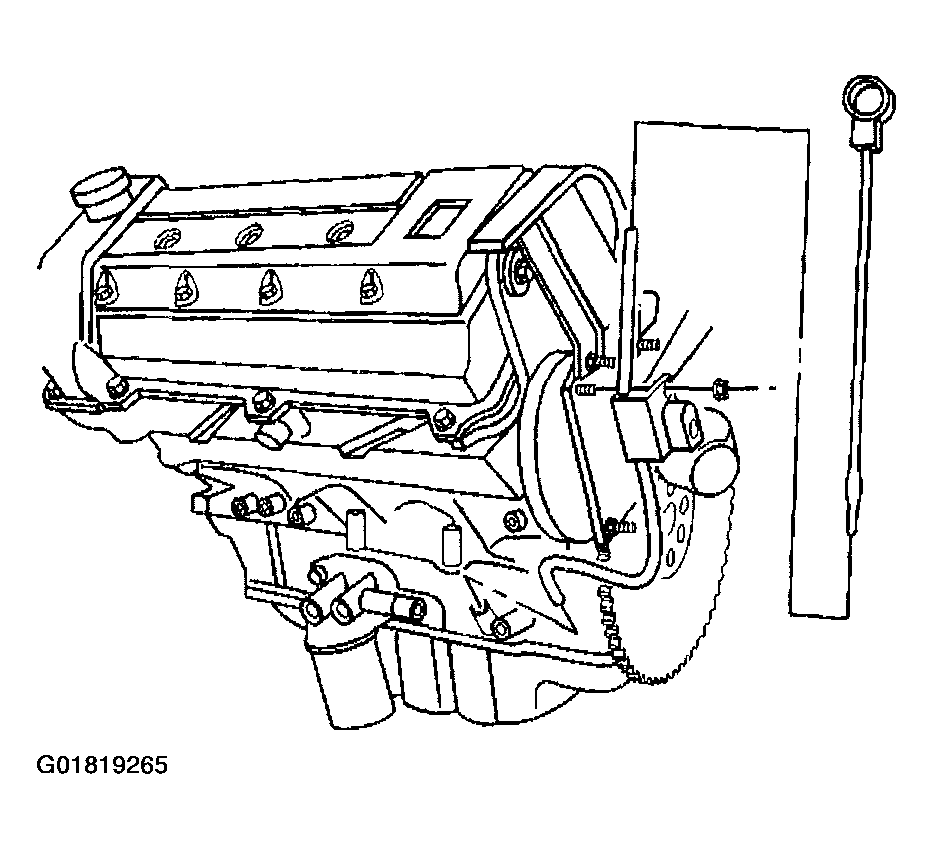

    Fig 1: Removing Oil Level Indicator & Tube
    G01819265Courtesy of GENERAL MOTORS CORP.
