Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 nuts (2) from the fuel injector sight shield (1).
  2. Lift the sight shield from the front and pull forward to disengage the rear tab from the bracket.

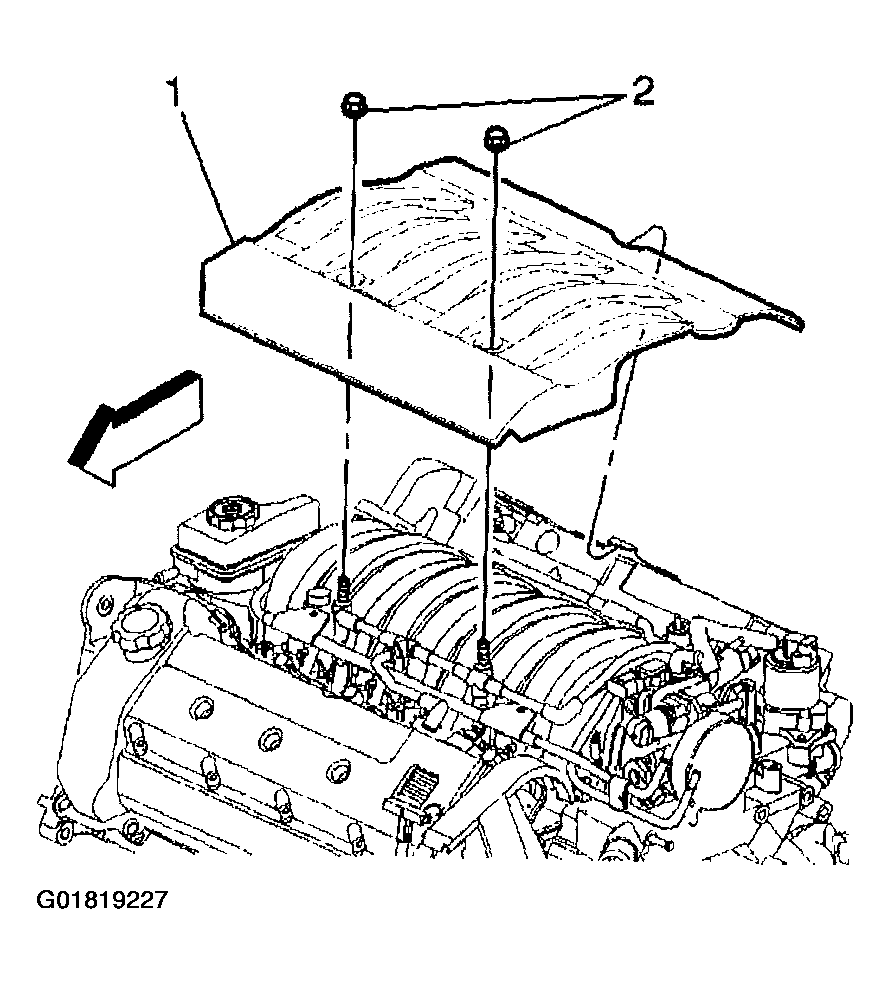

    Fig 1: Removing Fuel Injector Sight Shield
    G01819227Courtesy of GENERAL MOTORS CORP.
