Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Support the engine assembly with a suitable jack.
  4. Remove the nut securing the engine mount to the engine mount bracket.
  5. Lower the jack allowing the engine to lower slightly.
    Fig 1: Removing Engine Mount To Engine Mount Bracket Nut
    G01819213Courtesy of GENERAL MOTORS CORP.
  6. Remove the nut (4) and bolt (1) securing the right engine mount to the frame rail.
  7. Remove the two nuts (3) securing the right engine mount to the frame rail.
  8. Remove the right engine mount (2).

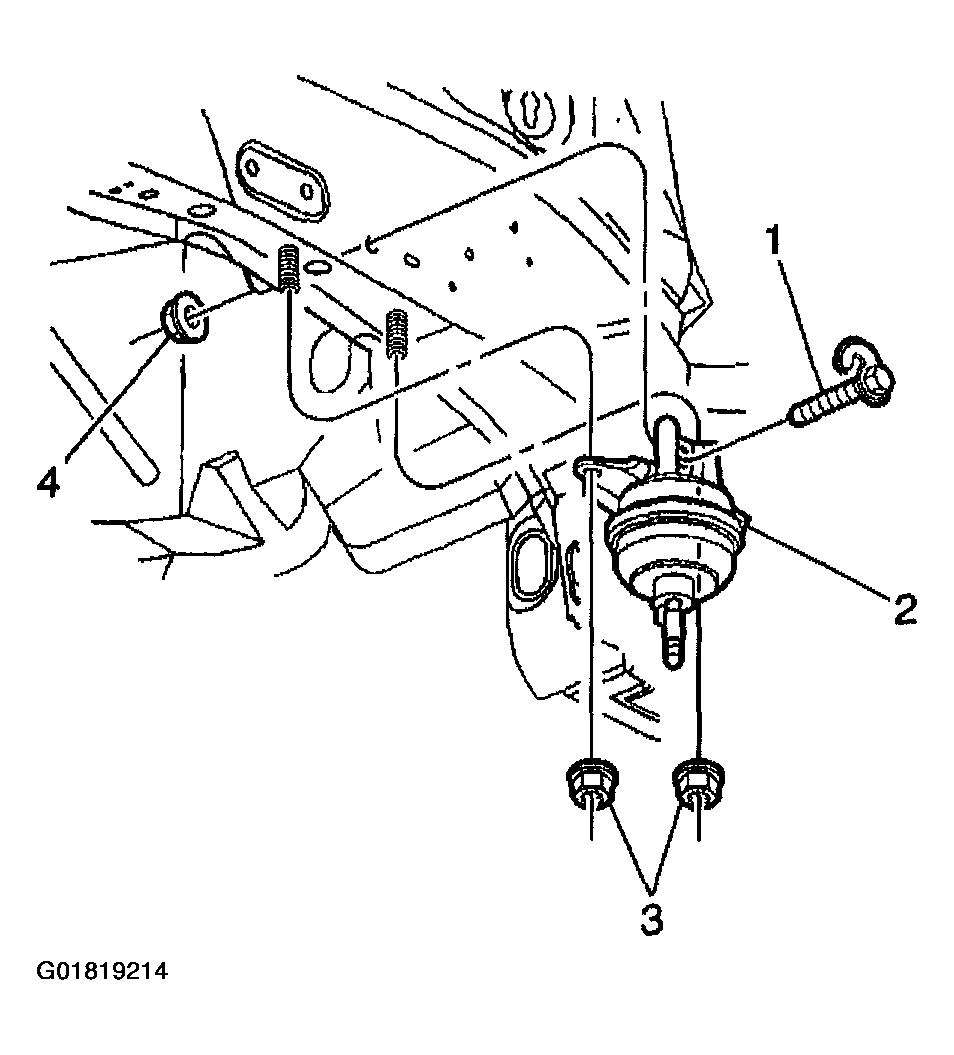

    Fig 2: Removing Right Engine Mount
    G01819214Courtesy of GENERAL MOTORS CORP.
