Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the nut securing the front engine mount to the engine frame.
  3. Remove the engine frame. Refer to FRAME REPLACEMENT in Frame and Underbody.
  4. Remove the nut securing the front engine mount to the front engine mount bracket.
  5. Remove the front engine mount.

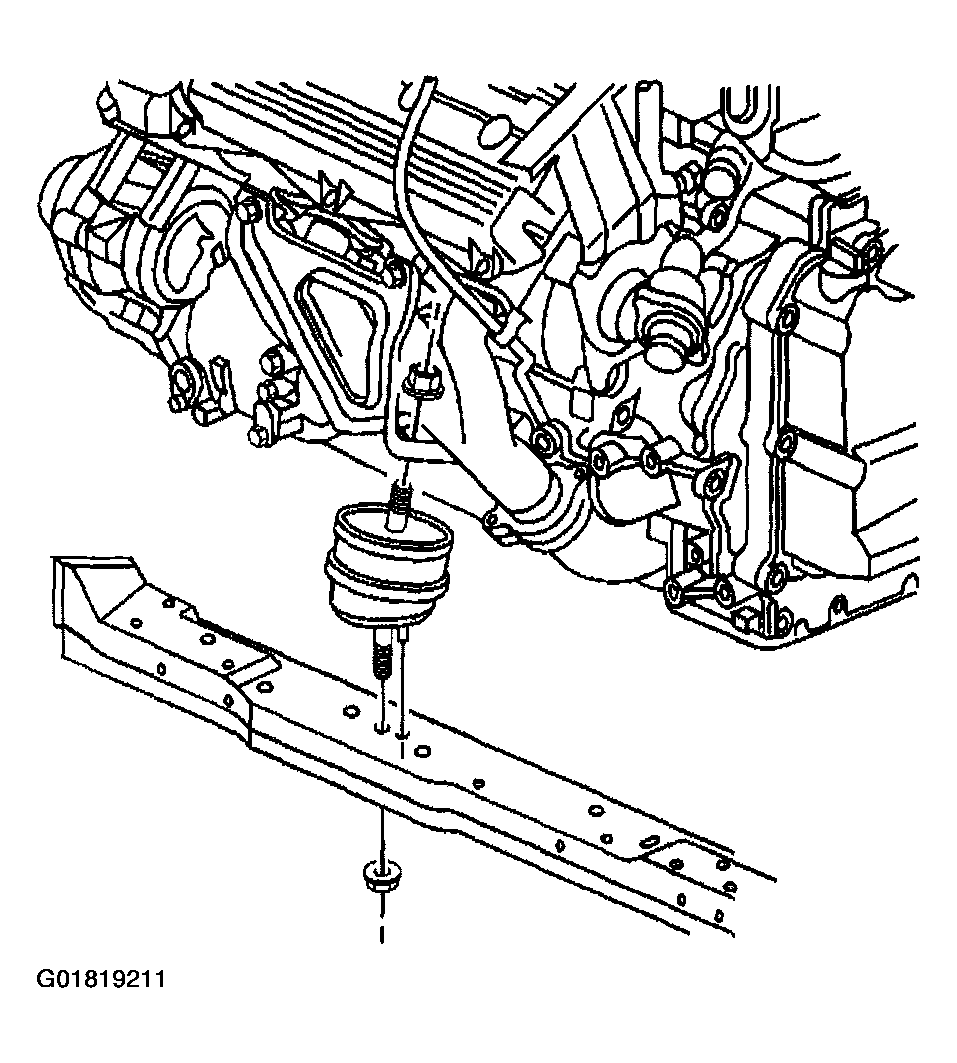

    Fig 1: Removing Front Engine Mount
    G01819211Courtesy of GENERAL MOTORS CORP.
