Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle assembly. Refer to TRANSAXLE (4T80-E) .

    Important:  Do not reuse the flywheel bolts.

  2. Remove the eight mounting bolts.
  3. Remove the flywheel and the reinforcement.
  4. Clean and inspect the engine flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION .

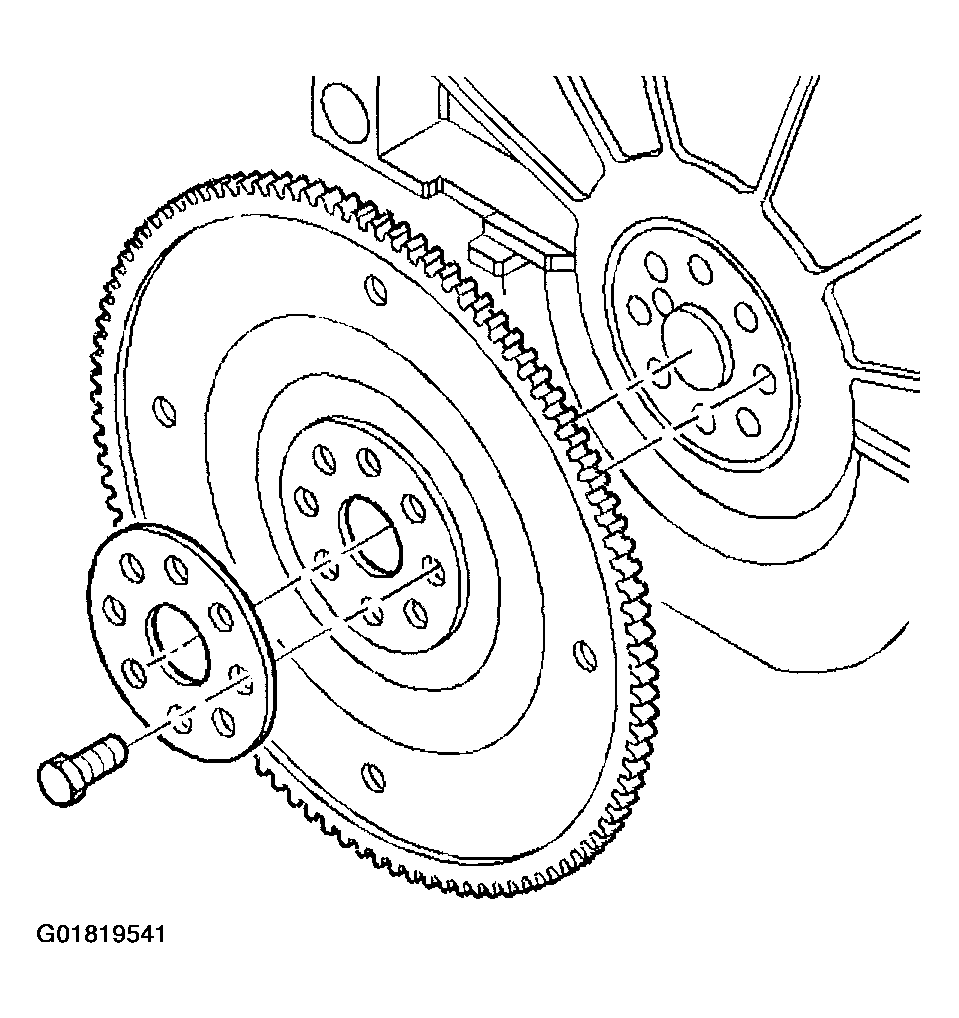

    Fig 1: Removing Flywheel
    G01819541Courtesy of GENERAL MOTORS CORP.
