Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the drive belt tensioner bolt (2).
  3. Remove the drive belt tensioner (1).

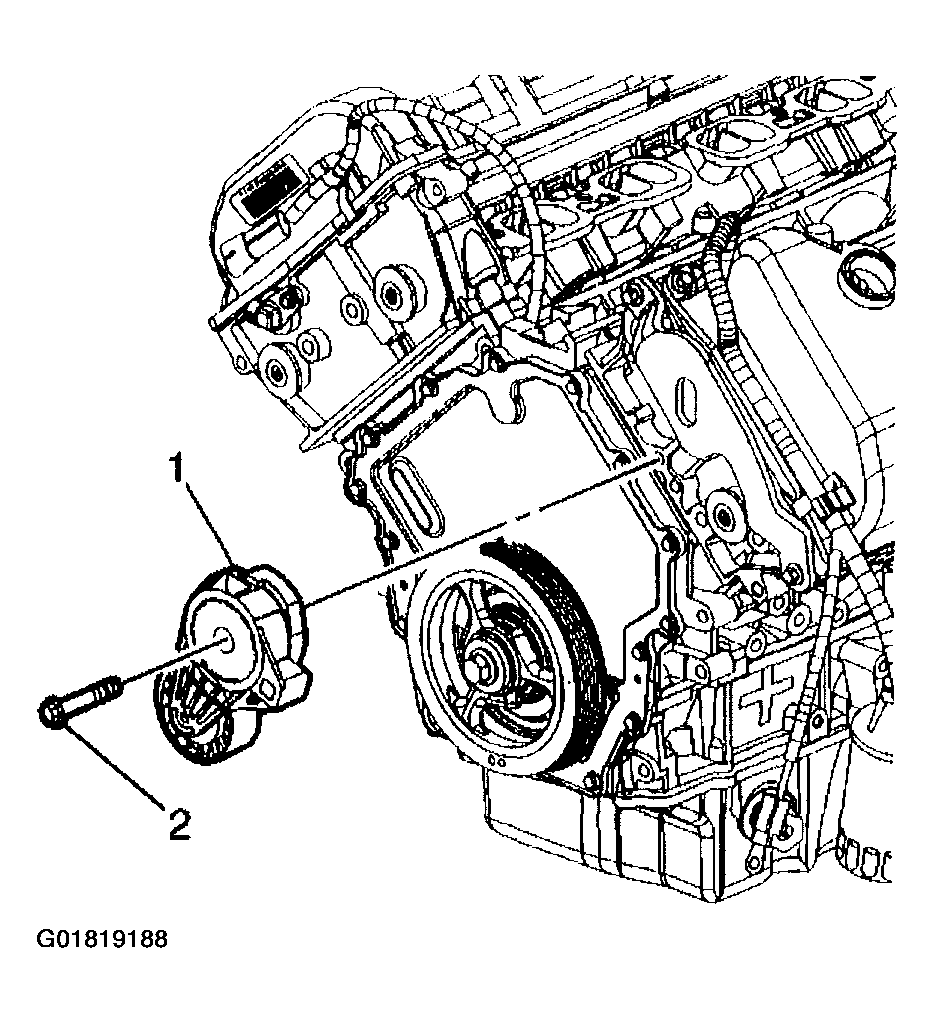

    Fig 1: Removing Drive Belt Tensioner & Bolt
    G01819188Courtesy of GENERAL MOTORS CORP.
