Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the belt tensioner (6).

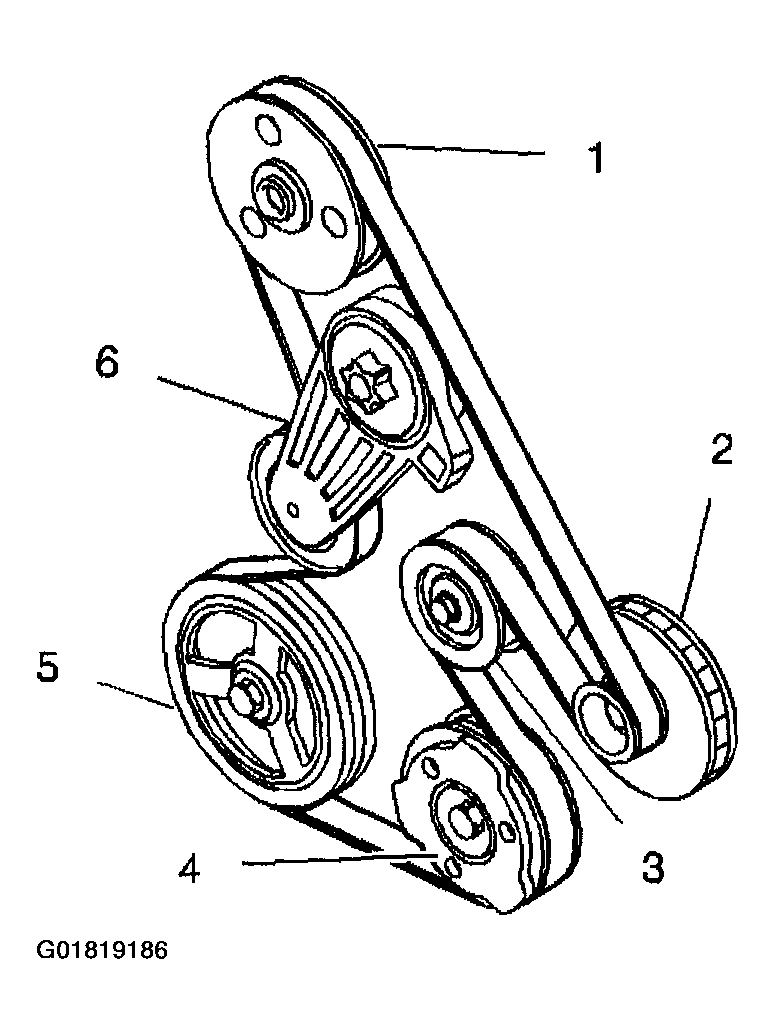

    Fig 1: Removing Belt Tensioner
    G01819186Courtesy of GENERAL MOTORS CORP.
  2. Remove the belt from the power steering (1) and generator (2) pulleys.
  3. Twist the belt for clearance from the tensioner and the front cover. Also twist the belt in order to clear the power steering pulley (1) and engine mount bracket.
  4. Raise the vehicle.
  5. Remove the right side splash shield. Turn the wheel to the extreme right.
  6. Remove the belt from the crankshaft (5) and air conditioning compressor (4) pulleys.
  7. Twist the belt for clearance between the idler pulley and the engine mount bracket.
  8. Remove the belt.
