Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry defrost grille upward to release retainers. Disconnect harness connector from Sunload Sensor and remove Sunload Sensor. See Fig 1. To install, reverse removal procedure.

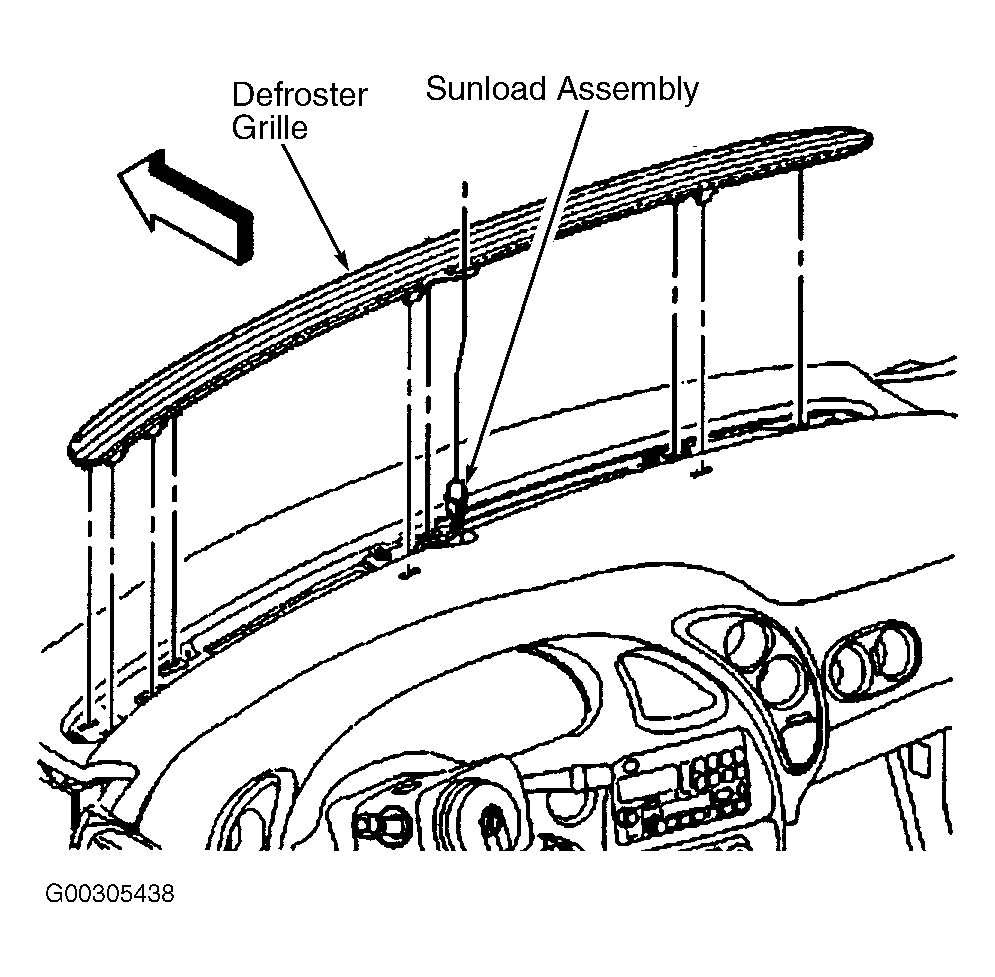

Fig 1: Removing & Installing Sunload Sensor
G00305438Courtesy of GENERAL MOTORS CORP.
