Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Discharge A/C system, using approved refrigerant recovery/recycling equipment. Remove the lower radiator air deflector. See Figure.
Disconnect the Compressor Hose from the Compressor. See Fig 1. Disconnect the Compressor Hose from the Accumulator. See Figure. To install reverse removal procedure.

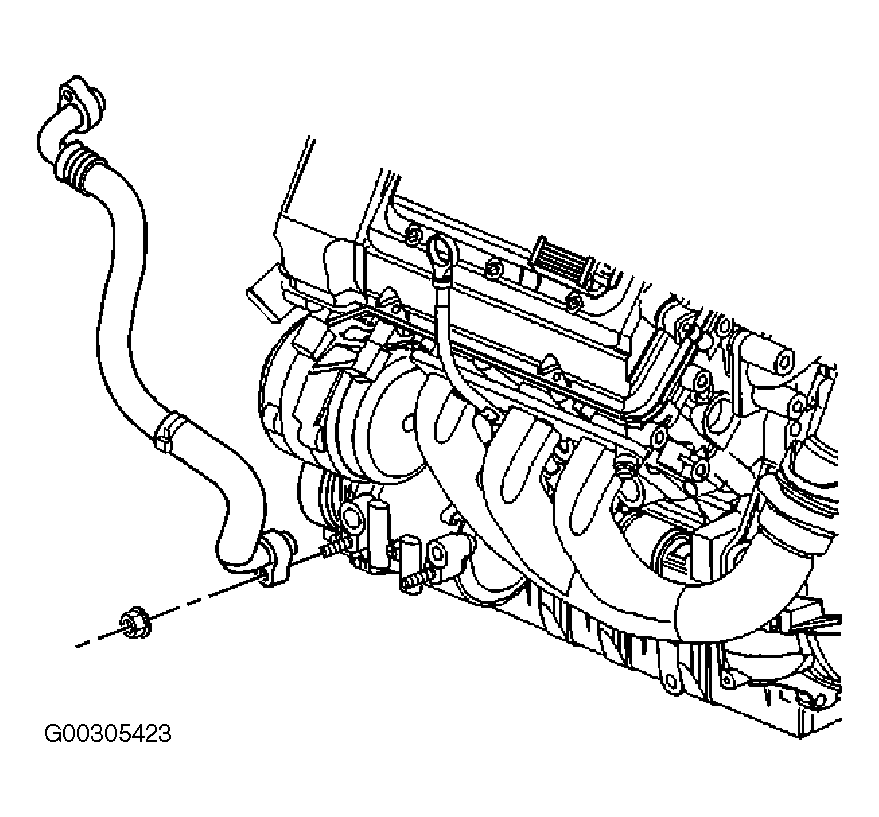

Fig 1: Removing & Installing Compressor Hose At Compressor

Courtesy of GENERAL MOTORS CORP.
