Idle Air Control Valve: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect Idle Air Control (IAC) valve (1) harness connector (2). See Fig 1 .
  2. Drain the cooling system into approved container.
  3. Disconnect 2 coolant hoses (2) to IAC valve. See Fig 2 .
  4. Remove 3 IAC valve (3) retaining bolts. See Fig 2 .
  5. Remove IAC valve (4) from throttle body (1).
  6. Remove any remaining IAC valve gasket (4).

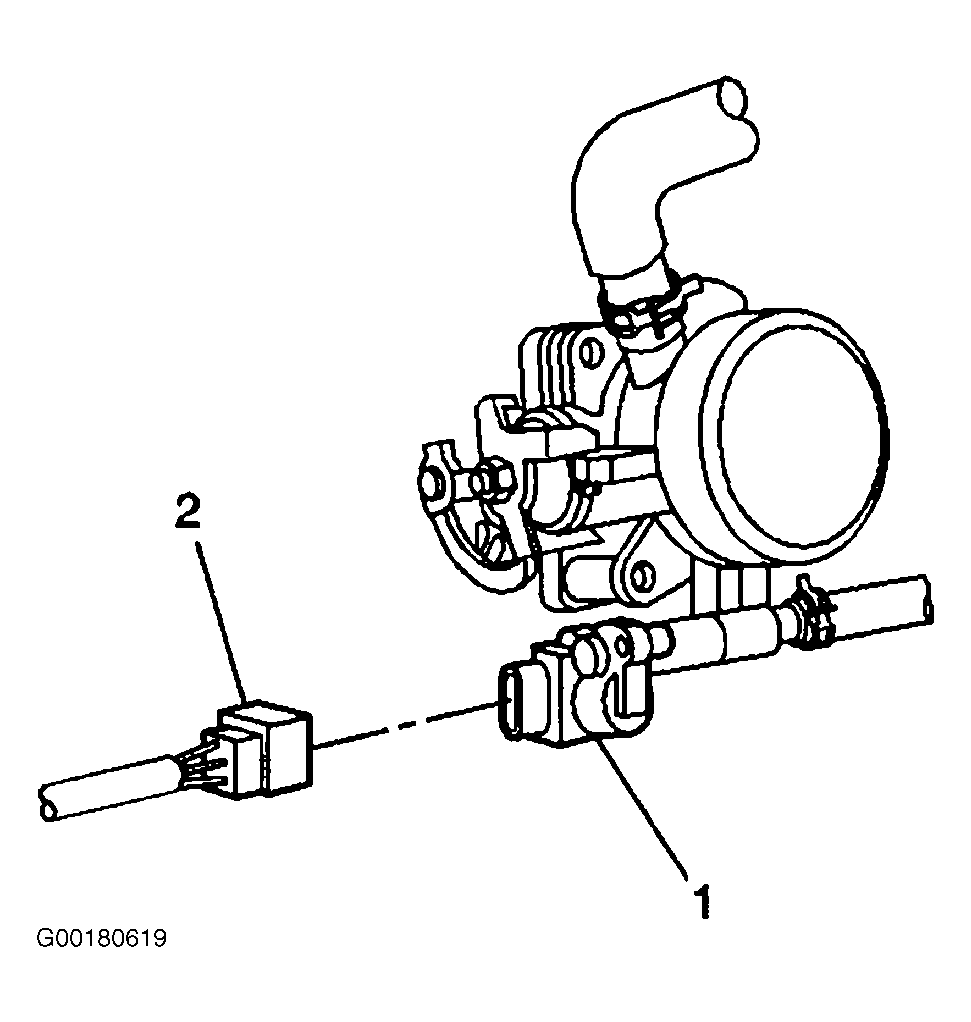

Fig 1: Disconnecting Idle Air Control Valve Harness Connector
G00180619Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing/Installing Idle Air Control Valve
G00180620Courtesy of GENERAL MOTORS CORP.
