Oil Cooler Lines (Rear): Installation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

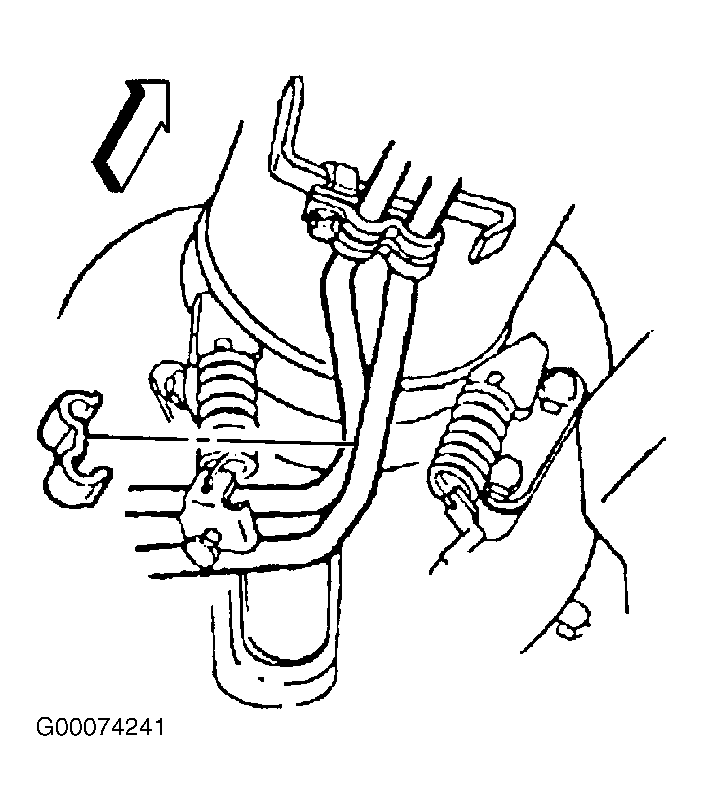

  1. Install the transmission oil cooler (TOC) rear pipes into position. Install the TOC rear pipe front and rear retaining clamps and bolts. See Figure . Tighten the transmission oil cooler rear pipe front and rear retaining clamp bolts to specification. See TORQUE SPECIFICATIONS  . Install the TOC rear pipe middle clip.

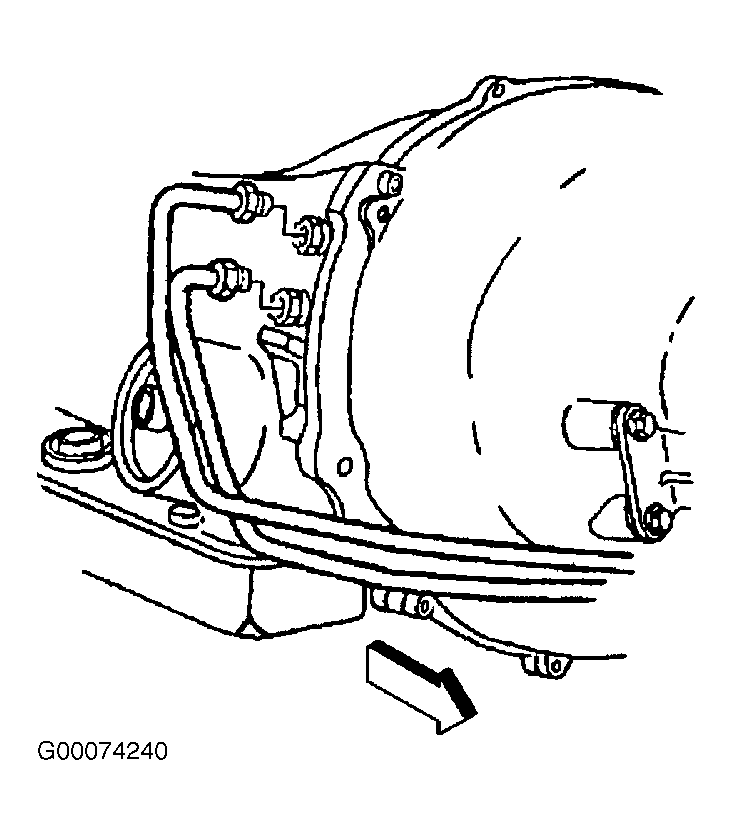

  2. Install the TOC rear pipe rear clip. See Figure . Remove the caps from the rear of the TOC rear pipes and remove the plugs from the transmission fittings. ALIGN and HAND-START, then tighten ONLY by hand to seat the TOC rear upper and lower pipe fittings to the transmission fittings. See Figure . Tighten the transmission oil cooler rear upper and lower pipe fittings to the transmission fittings to specification. See TORQUE SPECIFICATIONS  .
  3. ALIGN and HAND-START, then tighten ONLY by hand to seat the TOC rear upper and lower pipe fittings to the junction fittings at the engine flywheel housing. See Figure . Tighten the transmission oil cooler rear upper and lower pipe fittings to the junction fittings at the engine flywheel housing to specification. See TORQUE SPECIFICATIONS  .

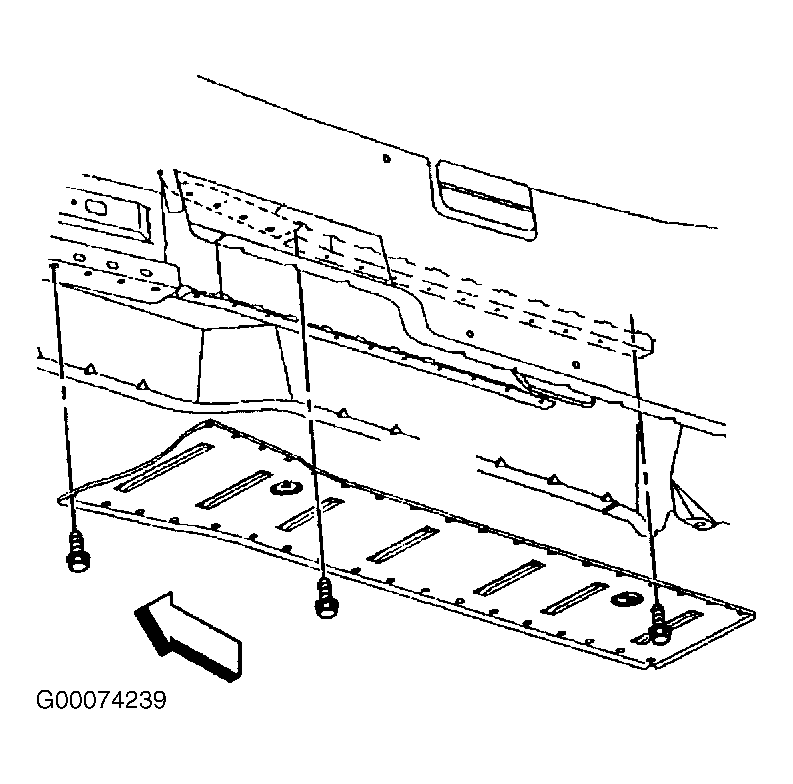

  4. Install the driveline tunnel closeout panel. See Figure . Install the right side muffler. Install the catalytic converter. Check the transmission fluid level. See CHECKING FLUID LEVELS  under LUBRICATION. Add if necessary. Lower the vehicle.
