Removal & Installation (All Others)

Disconnect CKP sensor harness connector. Remove CKP sensor retaining bolt. Remove CKP sensor. See Figure-Fig 9 . To install, reverse removal procedure.

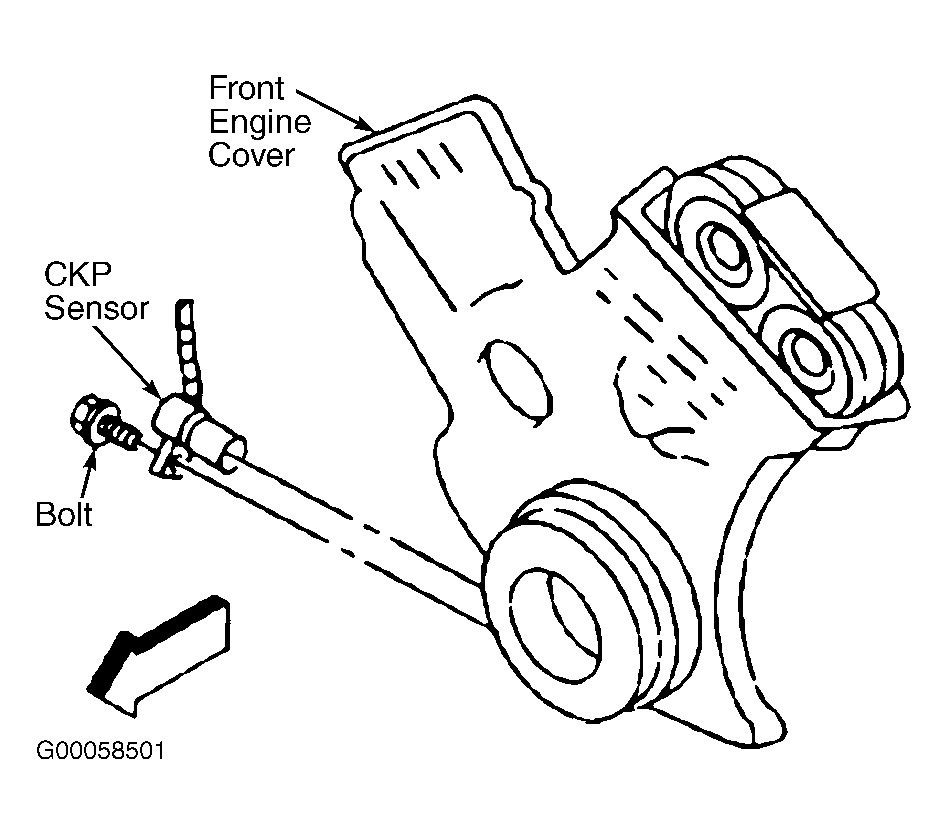

Fig 1: Locating CKP Sensor (2.2L)

Courtesy of GENERAL MOTORS CORP.

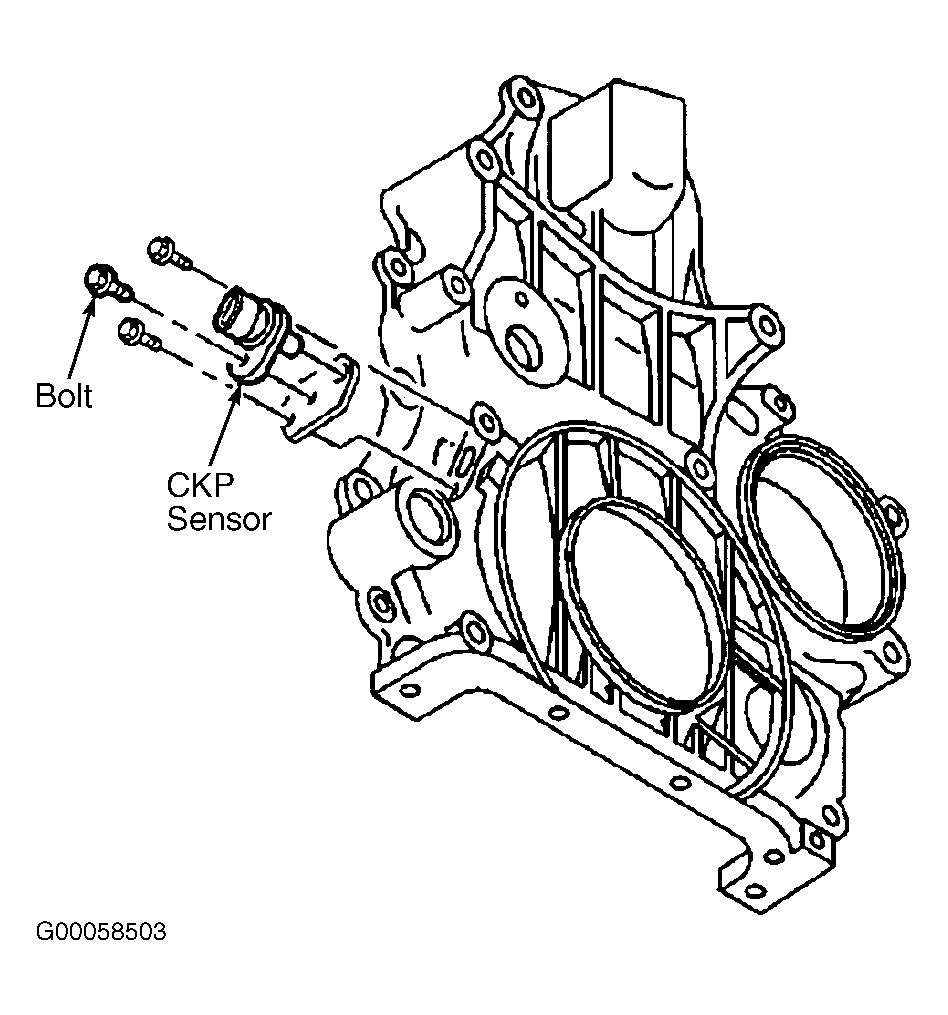

Fig 2: Locating CKP Sensor (2.5L)

Courtesy of GENERAL MOTORS CORP.

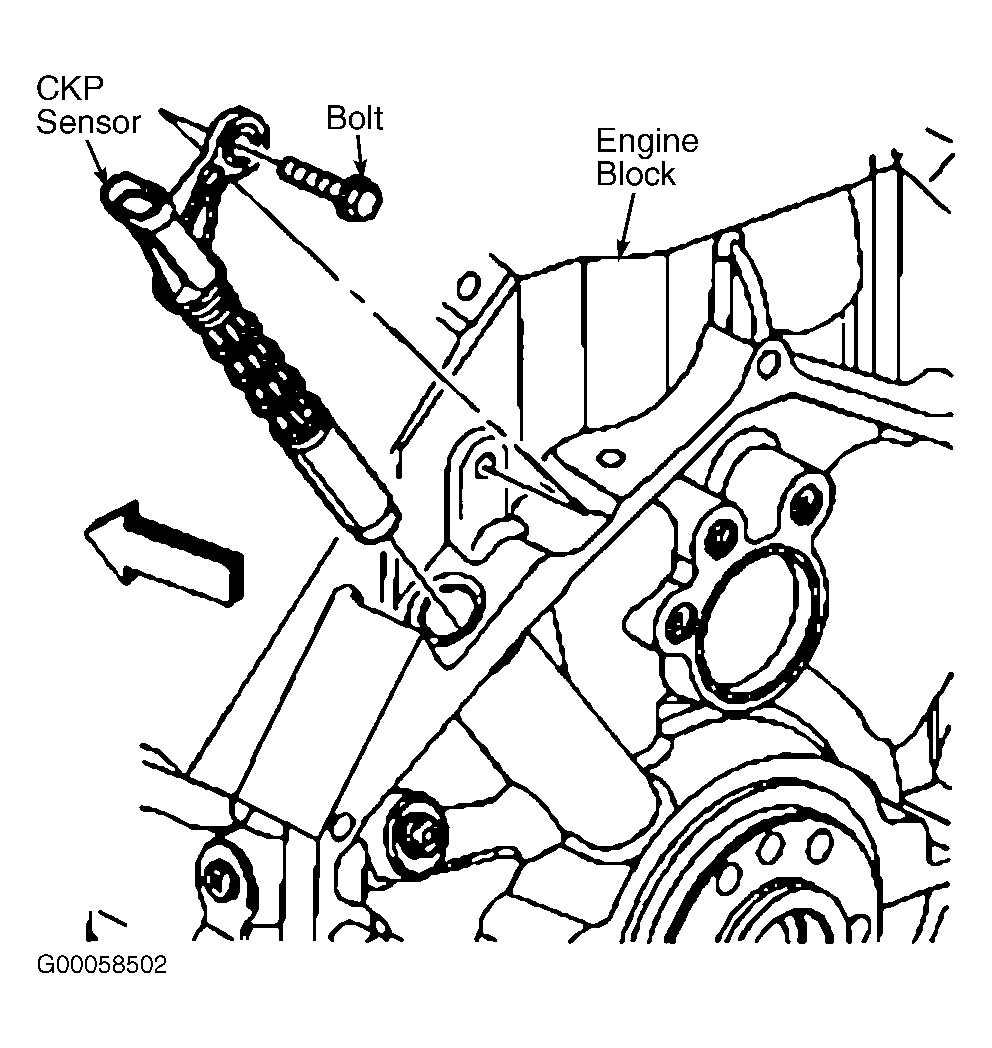

Fig 3: Locating CKP Sensor (3.4L - 7X Sensor)

Courtesy of GENERAL MOTORS CORP.

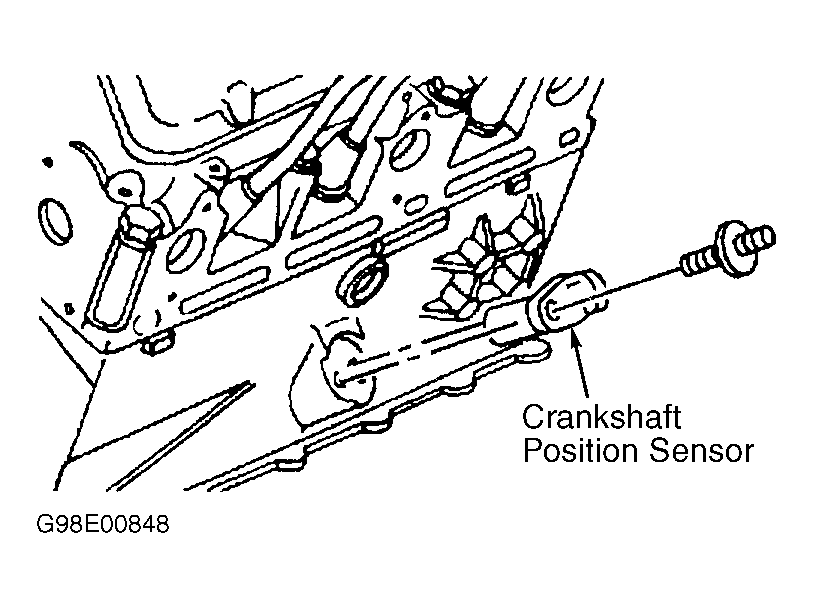

Fig 4: Locating CKP Sensor (3.4L - 24X Sensor)

Courtesy of GENERAL MOTORS CORP.

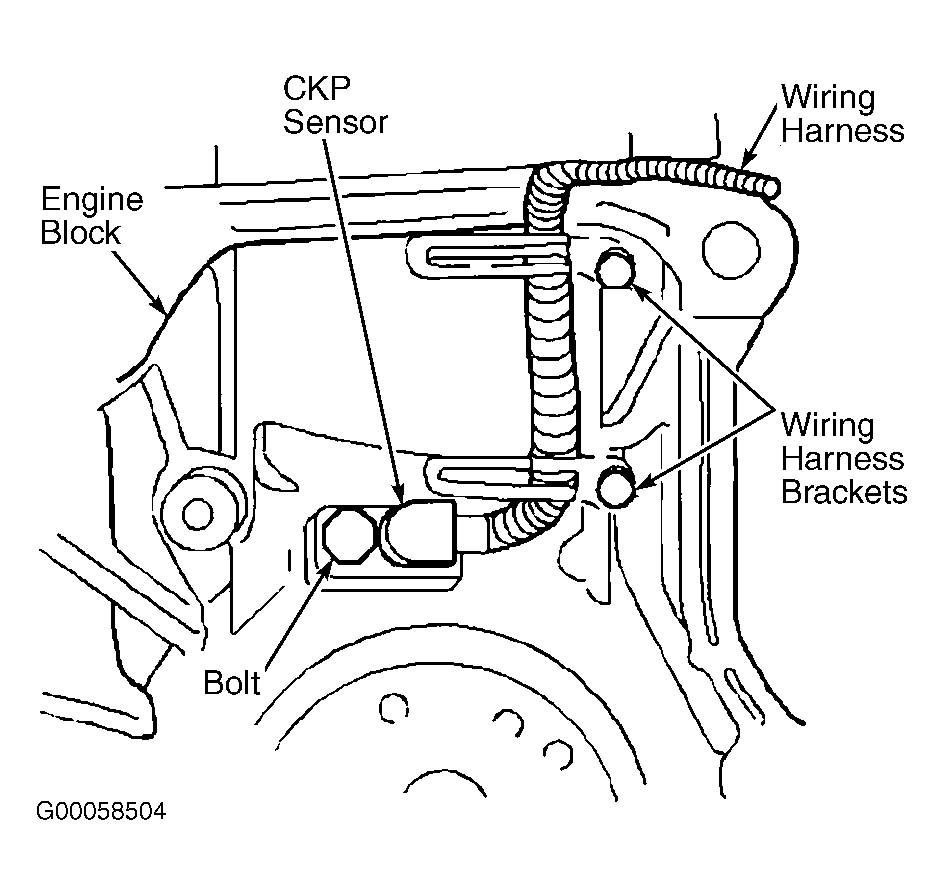

Fig 5: Locating CKP Sensor (4.3L, 5.0L & 5.7L)

Courtesy of GENERAL MOTORS CORP.

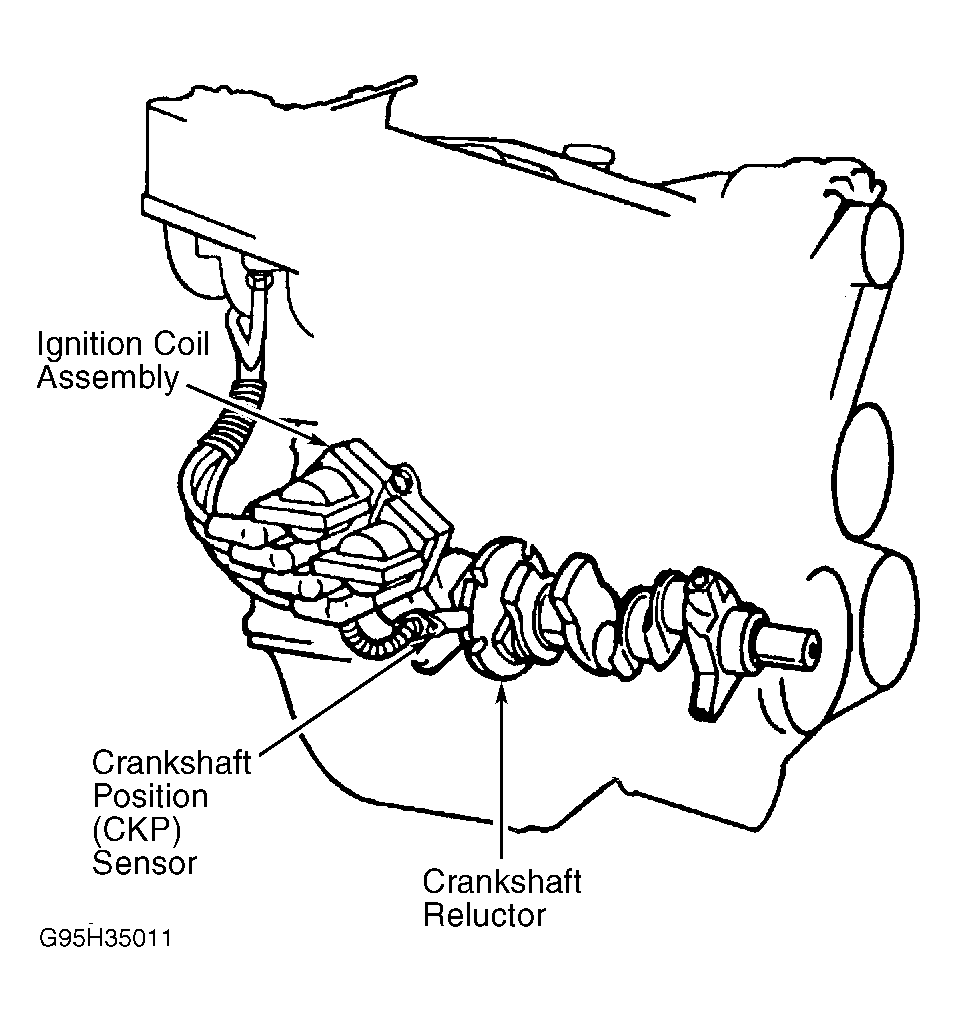

Fig 6: Locating CKP Sensor (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.

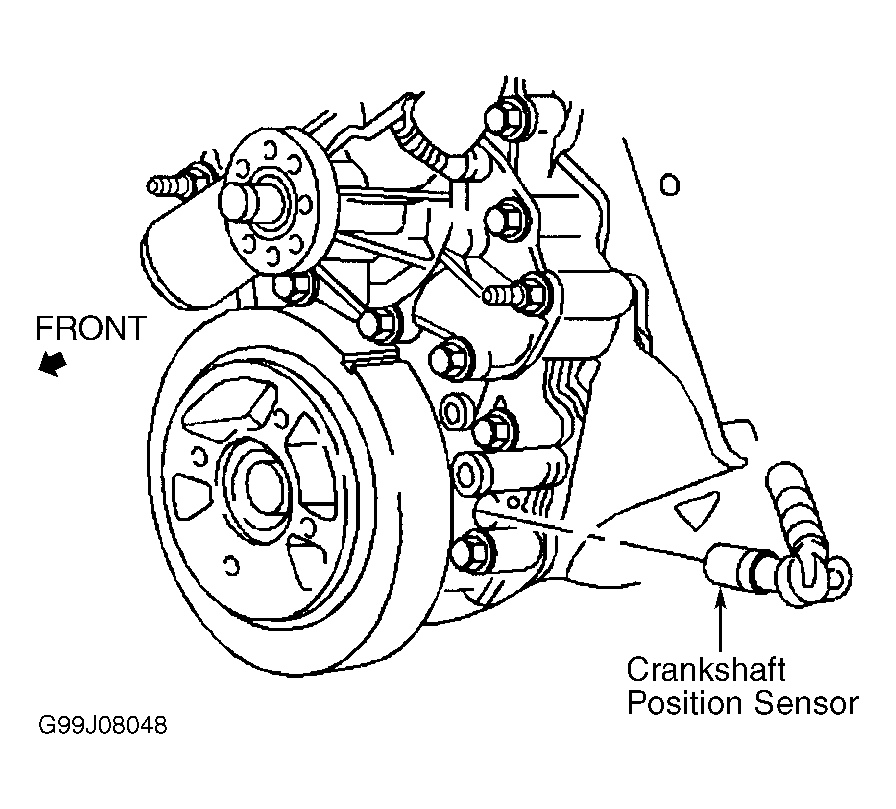

Fig 7: Locating CKP Sensor (6.5L)

Courtesy of GENERAL MOTORS CORP.

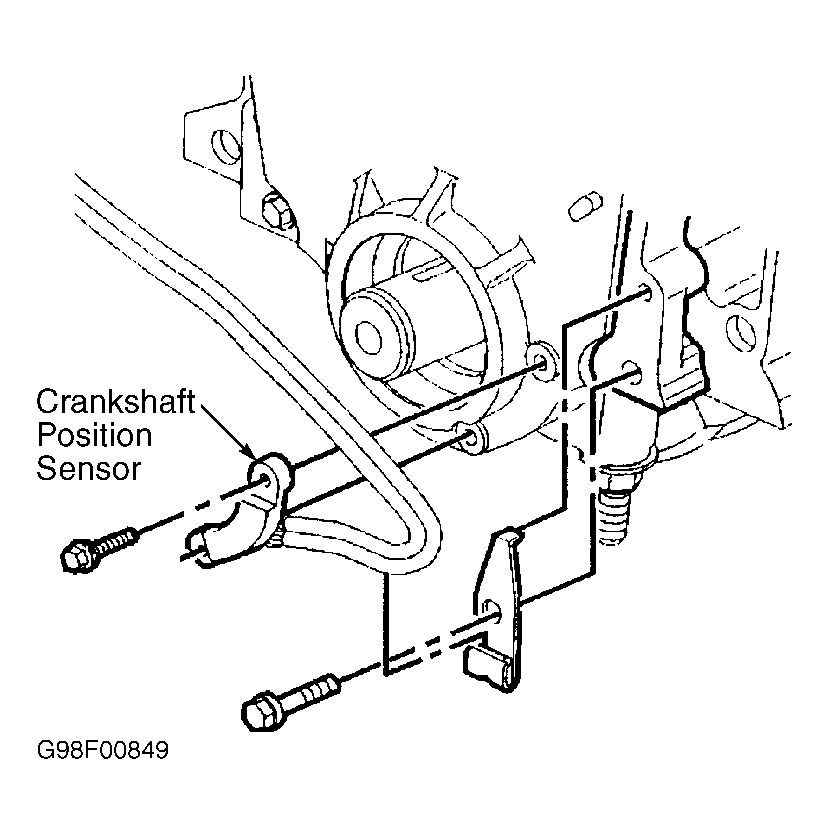

Fig 8: Locating CKP Sensor (6.6L)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Locating CKP Sensor (8.1L)

Courtesy of GENERAL MOTORS CORP.
