Removal & Installation (Except 2.0L & 2.5L)

On engines equipped with distributor, Camshaft Position (CMP) sensor is located within distributor. Remove screw and remove CMP sensor from distributor. See Fig 4. On engines equipped with distributorless ignition, CMP sensor is located on engine block adjacent to camshaft. See Fig 2-Fig 7 . To install, reverse removal procedure.

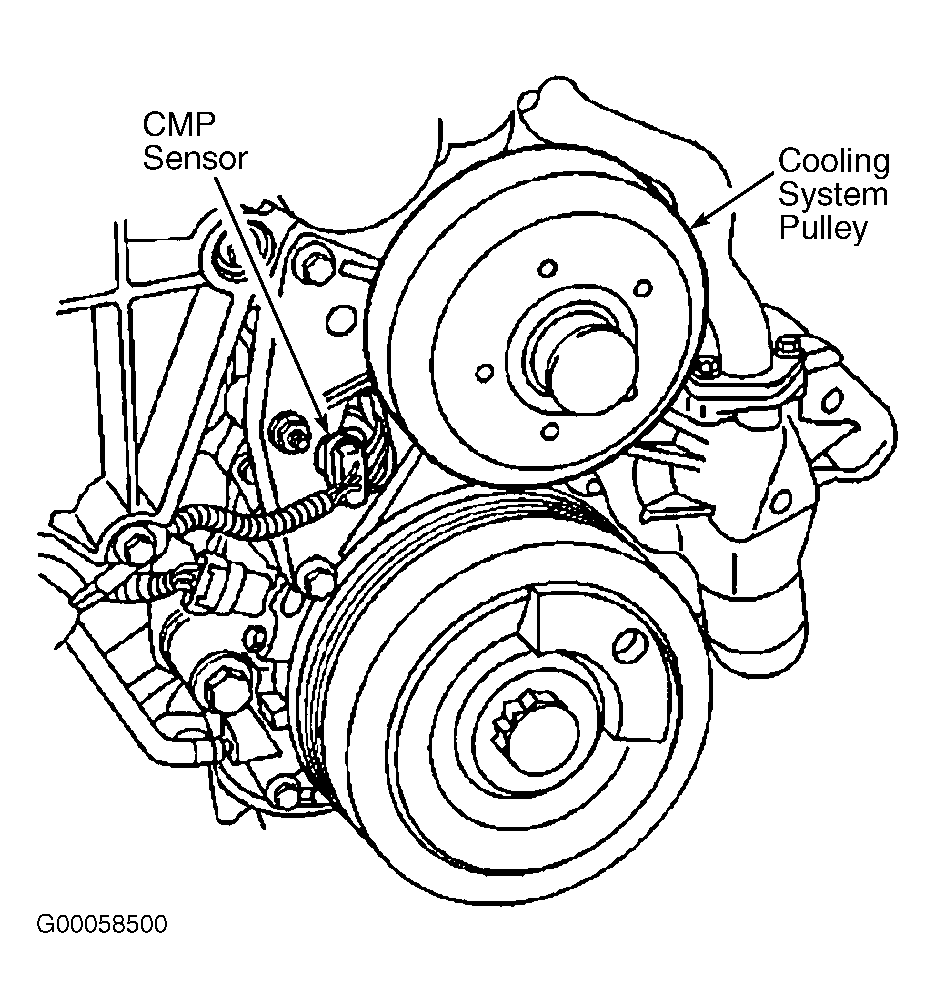

Fig 1: Locating CMP Sensor (2.0L)

Courtesy of GENERAL MOTORS CORP.

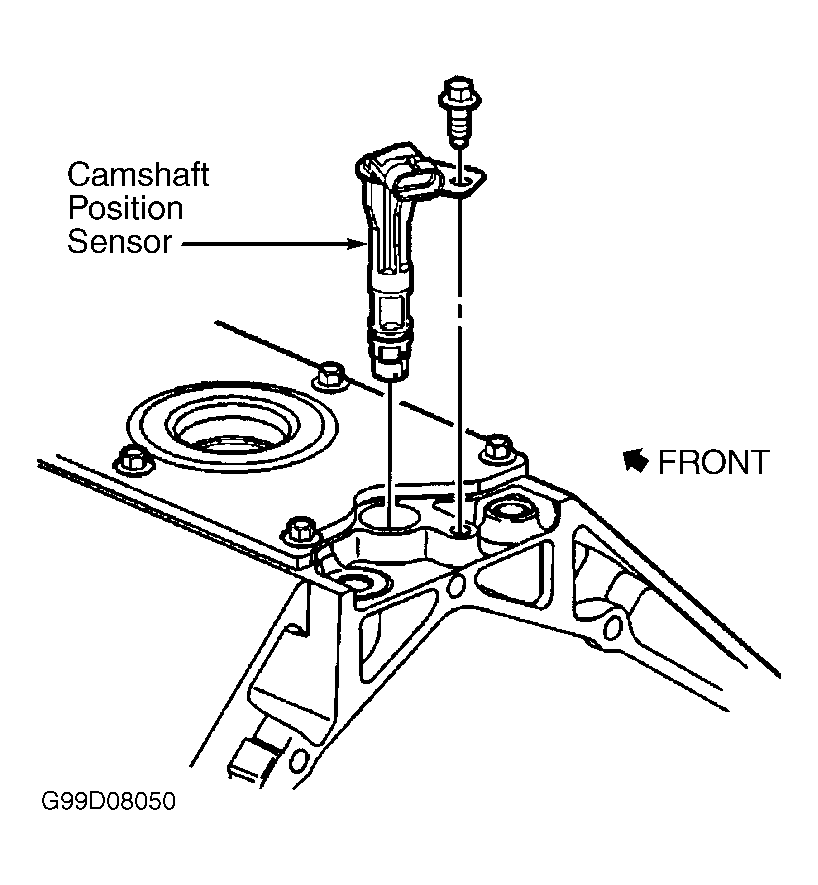

Fig 2: Locating CMP Sensor (2.2L)

Courtesy of GENERAL MOTORS CORP.

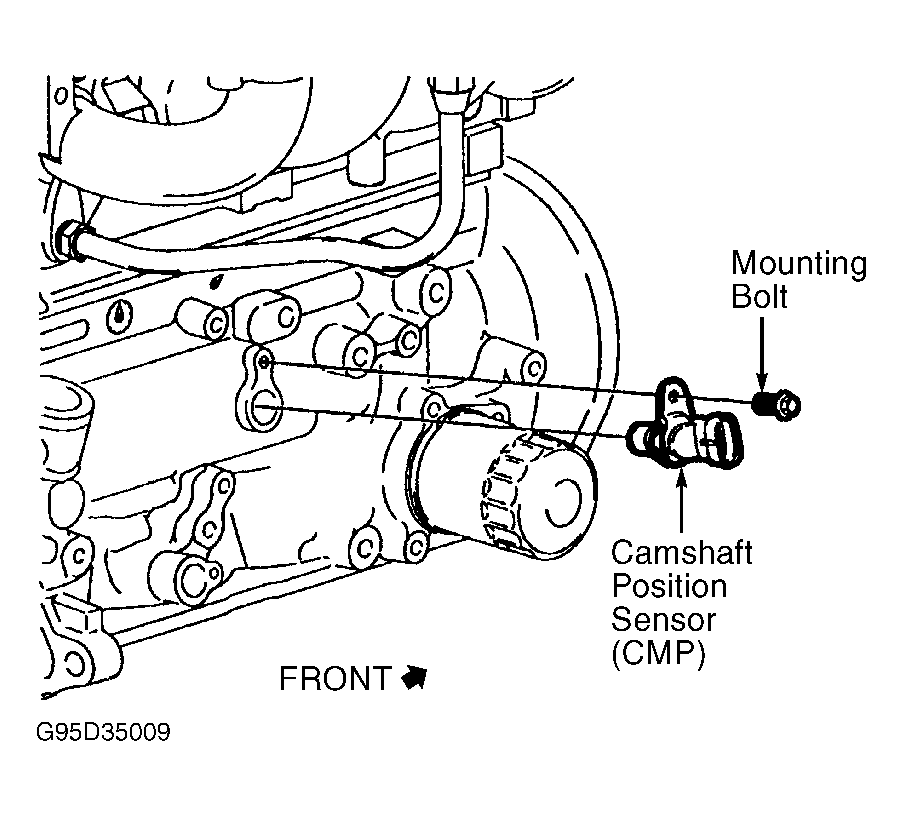

Fig 3: Locating CMP Sensor (3.4L)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating CMP Sensor (4.3L, 5.0L & 5.7L)

Courtesy of GENERAL MOTORS CORP.

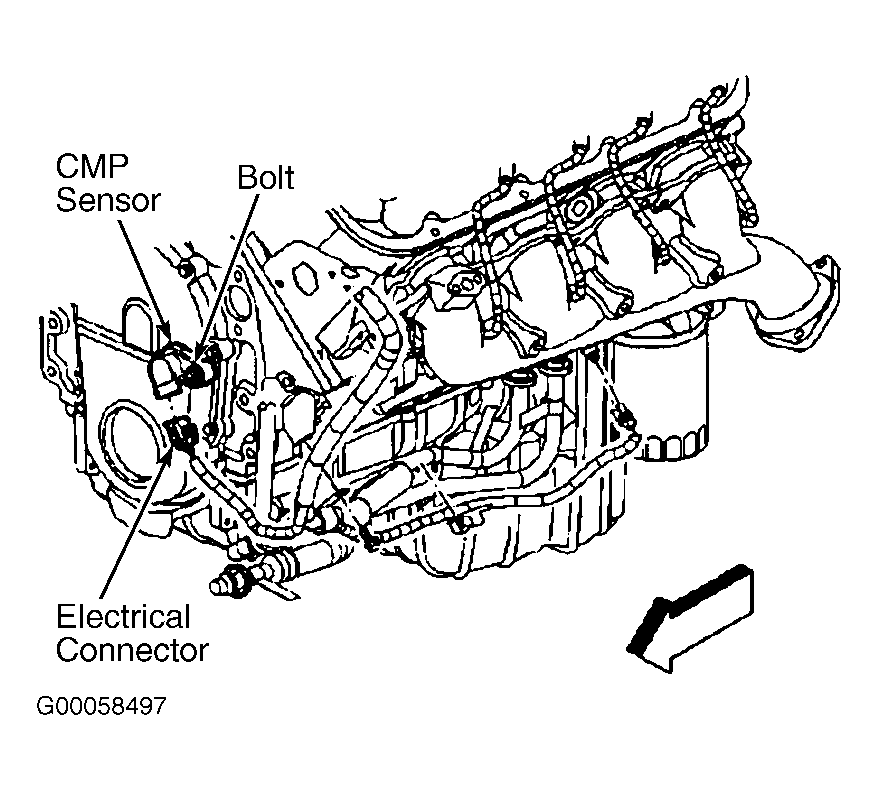

Fig 5: Locating CMP Sensor (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Locating CMP Sensor (6.6L)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating CMP Sensor (8.1L)

Courtesy of GENERAL MOTORS CORP.
