Removal & Installation (2.0L)

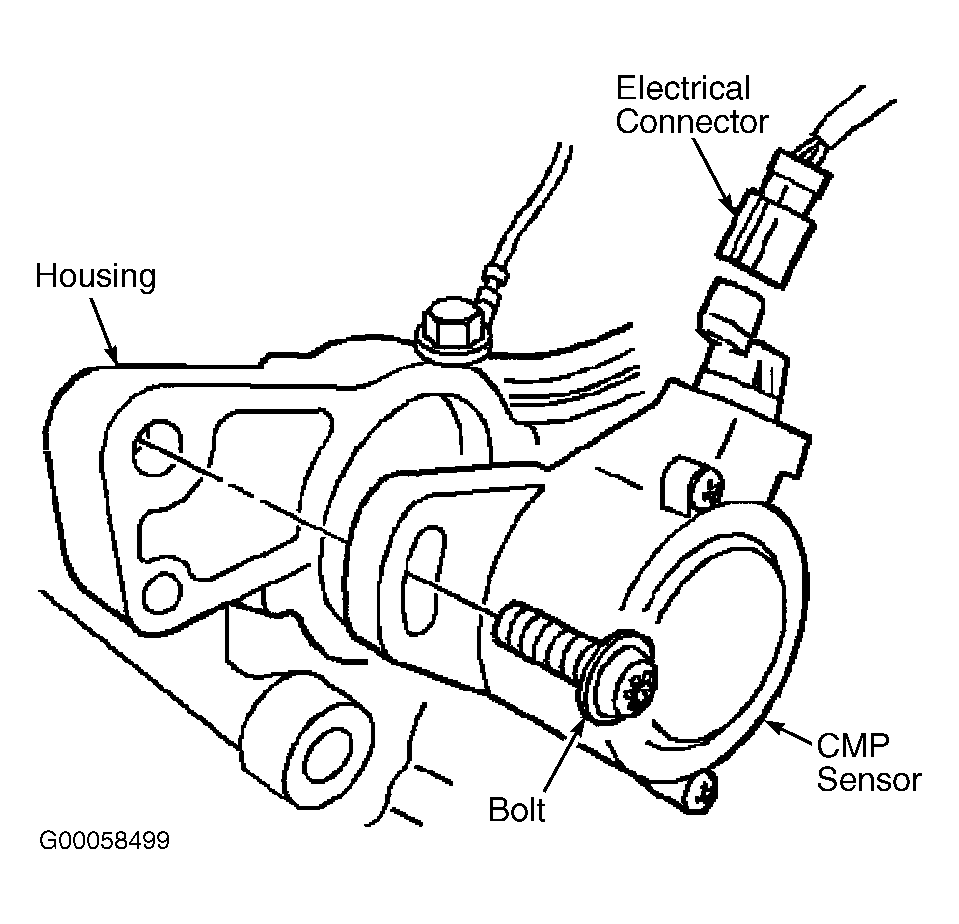

Remove electrical connector from Camshaft Position (CMP) sensor. Remove sensor retaining bolt. Remove CMP sensor. See Figure. To install, apply thin coat of oil to "O" ring seal. To complete installation, reverse removal procedure.
