Fuel Injector Nozzle Tube Sleeve Replacement (6.6L): Removal

Drain the cooling system.
Remove the fuel injector(s). Refer to Removal (6.6L) .
Install Fuel Injector Sleeve Remover/Installer (J 45910) into the fuel injector sleeve.

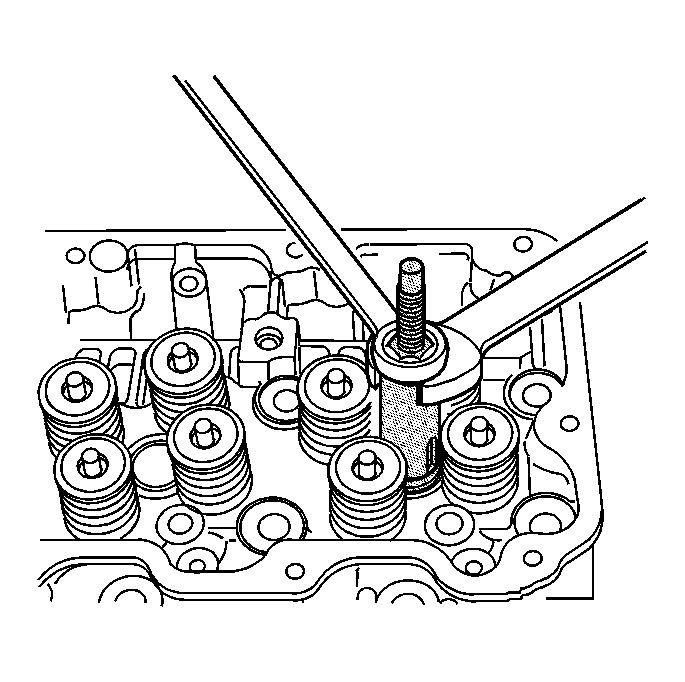

Fig 1: View Of J 45910 In Fuel Injector Sleeve
Courtesy of GENERAL MOTORS CORP.
Tighten the nut while holding the Fuel Injector Sleeve Remover/Installer.

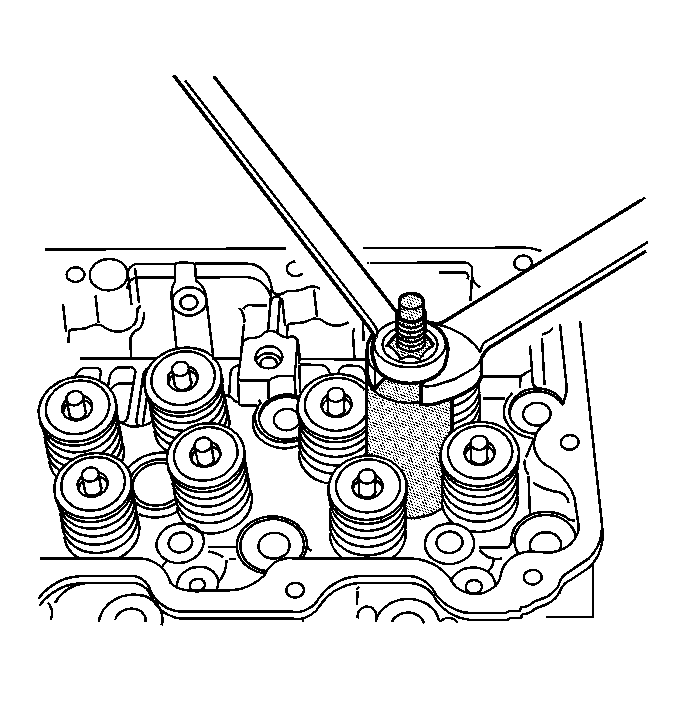

Fig 2: Tightening Nut
Courtesy of GENERAL MOTORS CORP.
Install J 45910-2 over J 45910-1, which is part of kit J 45910, and add the washer and nut.

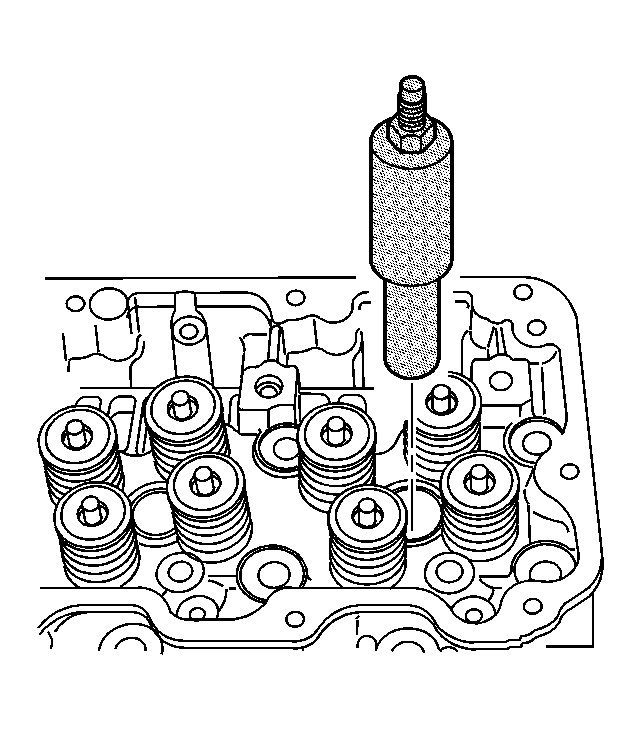

Fig 3: View Of J 45910-2, J 45910-1, Washer & Nut
Courtesy of GENERAL MOTORS CORP.
Hold J 45910 while turning the nut to remove the fuel injector sleeve.

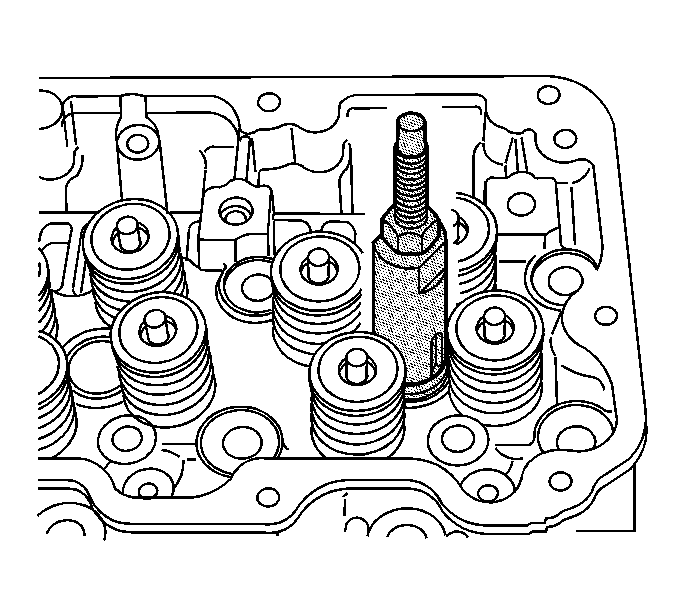

Fig 4: Removing Fuel Injector Using J 45910
Courtesy of GENERAL MOTORS CORP.
Remove the J 45910 with the fuel injector sleeve.

Fig 5: View Of J 45910 Removed From Fuel Injector Sleeve
Courtesy of GENERAL MOTORS CORP.
Remove the O-rings (1).

Fig 6: View Of O-Rings & Fuel Injector Sleeve
Courtesy of GENERAL MOTORS CORP.
