Removal & Installation (Front Door)

Remove front door panel switch plate. See FRONT DOOR PANEL SWITCHES . If equipped with manual windows, use Door Handle Clip Remover (J-9886-01) to remove clip from window regulator. Remove manual window handle. After removing window handle, go to next step. If vehicle is equipped with power windows, go to next step.
Remove 2 screws located near door armrest. Using Trim Pad/Garnish Clip Remover (J-38778), pry door panel from door. Carefully peel water deflector from door. Disconnect outside door handle rod from handle. After disconnect outside door handle rod from handle, go to next step.
Disconnect lock rod from outside door handle lock cylinder. Disconnect front door lock module wiring harness. Remove outside door handle screws. Remove outside door handle from door. See Fig 1 .

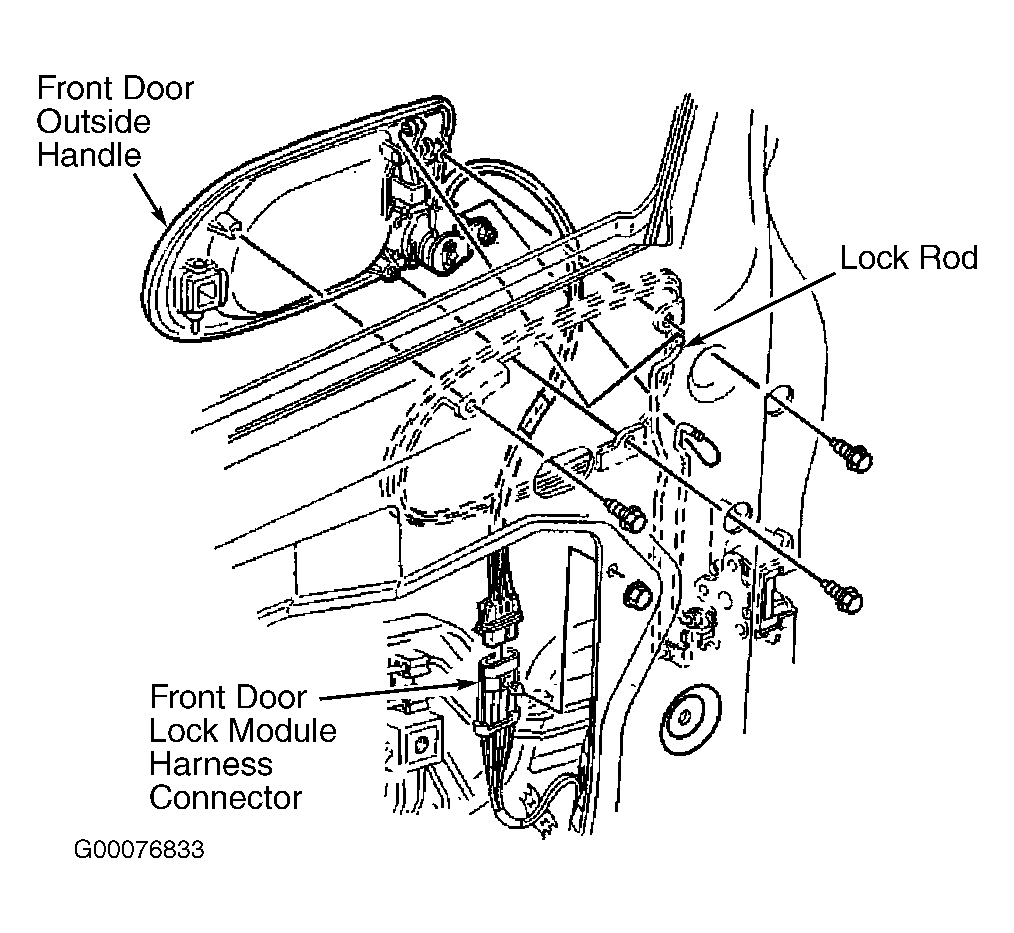

Fig 1: Removing Front Door Outside Handle
Courtesy of GENERAL MOTORS CORP.
Disconnect door lock cylinder retainer from outside handle. Disconnect door lock cylinder from front door outside handle. Remove door lock cylinder from door. To install, reverse removal procedure. Tighten outside handle screws to 89 INCH lbs. (10 N.m). Ensure water deflector is properly installed to prevent water leaks after installation.
