Component Locations

COMPONENT LOCATIONS

Component Location
Ambient Air Temperature Sensor In Front Of Radiator, Right Side Of Vehicle
Ambient Light Sensor Center Of Instrument Panel Upper Trim Pad, Near Windshield Defroster Vent
Body Control Module Below Instrument Panel, Right Of Glove Box
Brake Fluid Level Indicator Sensor Right Side Of Brake Fluid Reservoir
Content Theft Deterrent Indicator Top Center Of Instrument Panel, Near Defrost Vent
Data Link Connector Below Steering Column, Bottom Of Knee Bolster
Daytime Running Lights Control Module Behind Instrument Panel, To Right Of Steering Column
Door Lock & Door Ajar Indicator Switch In Center Rear End Of Respective Door, Part Of Door Lock
Driver Information Center In Roof Console
Electronic Brake Control Module On Brake Master Cylinder
Engine Coolant Level Indicator Module Mounted To Right Rear Of Radiator, Below Radiator Cap
Engine Coolant Temperature Sensor On Left Side Top Of Engine
Engine Oil Level Indicator Switch Center Of Engine Oil Pan
Engine Oil Pressure Indicator Switch Front Of Engine, Behind Starter
Fuel Level Sending Unit Inside Fuel Tank
Fuel Tank Under Left Side, Middle Of Vehicle
Ignition Key Alarm Switch Part Of Ignition Lock Module Assembly
Ignition Lock Module Assembly In Steering Column
In-Line Connector C201 On Left Side Of Steering Column, Near Base
In-Line Connector C305 In Body Wiring Harness, Mounted As Pass-Through Under Vehicle, Behind Back Sea
Instrument Panel Fuse Block Behind Right Side Instrument Panel Endcap
Interior Lighting Override Switch Overhead Console Switch Bank
Liftgate Ajar Switch Part Of Liftgate Lock
Liftgate Lock Inside Liftgate, Below License Plate
Park Brake Indicator Switch Part Of Park Brake Assembly, In Lower Left "A" Pillar
Powertrain Control Module In Air Cleaner Housing
Relay Center Right Side Of Instrument Panel, On Body Control Module Mounting Bracket
Sliding Door Jamb Switch Mounted To Rear Opening Of Respective Door
Splice Pack SP205 In Data Link Connector Harness
Supplemental Inflatable Restraint System Sensing & Diagnostic Module Under Right Front Seat
Transaxle Range Switch Left Rear Corner Of Engine Compartment, On Top Of Transaxle
Underhood Fuse Block Right Front Corner Of Engine Compartment, Near Battery

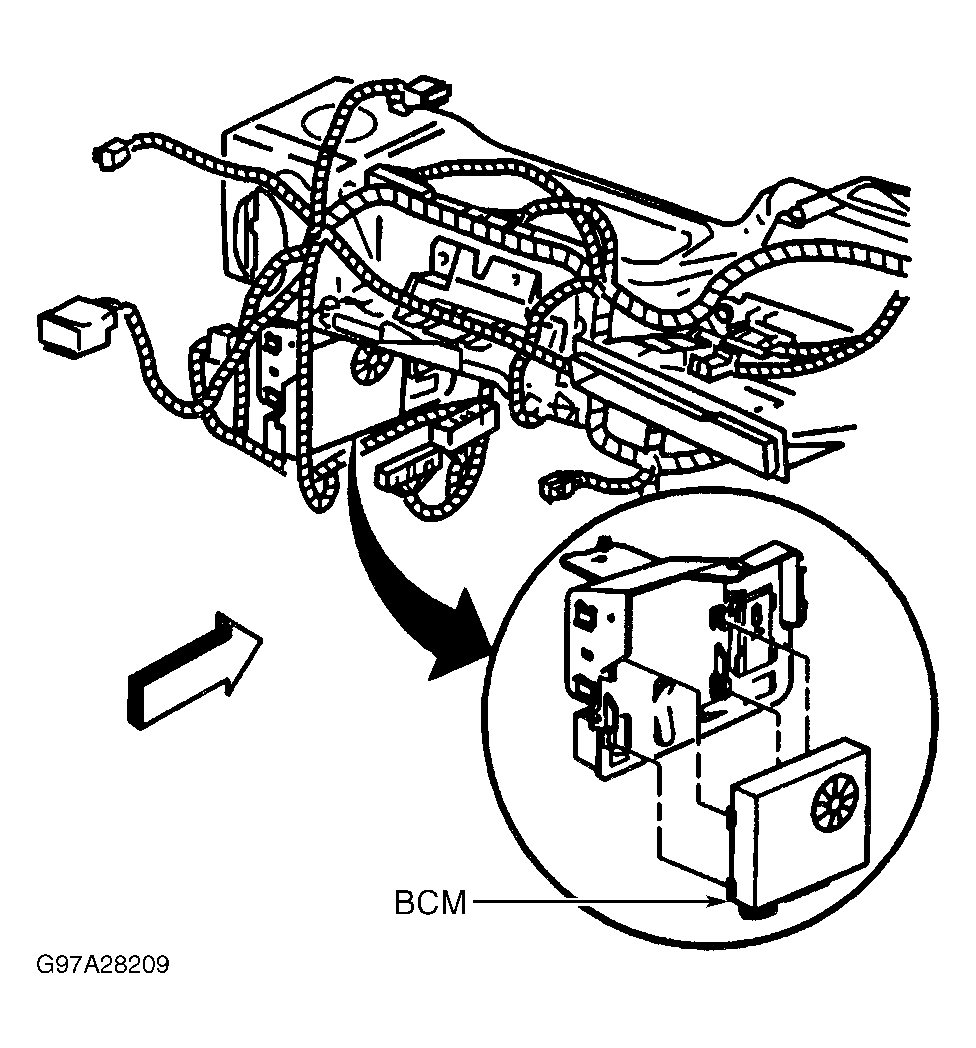

Fig 1: Locating Body Control Module
G97A28209Courtesy of GENERAL MOTORS CORP.

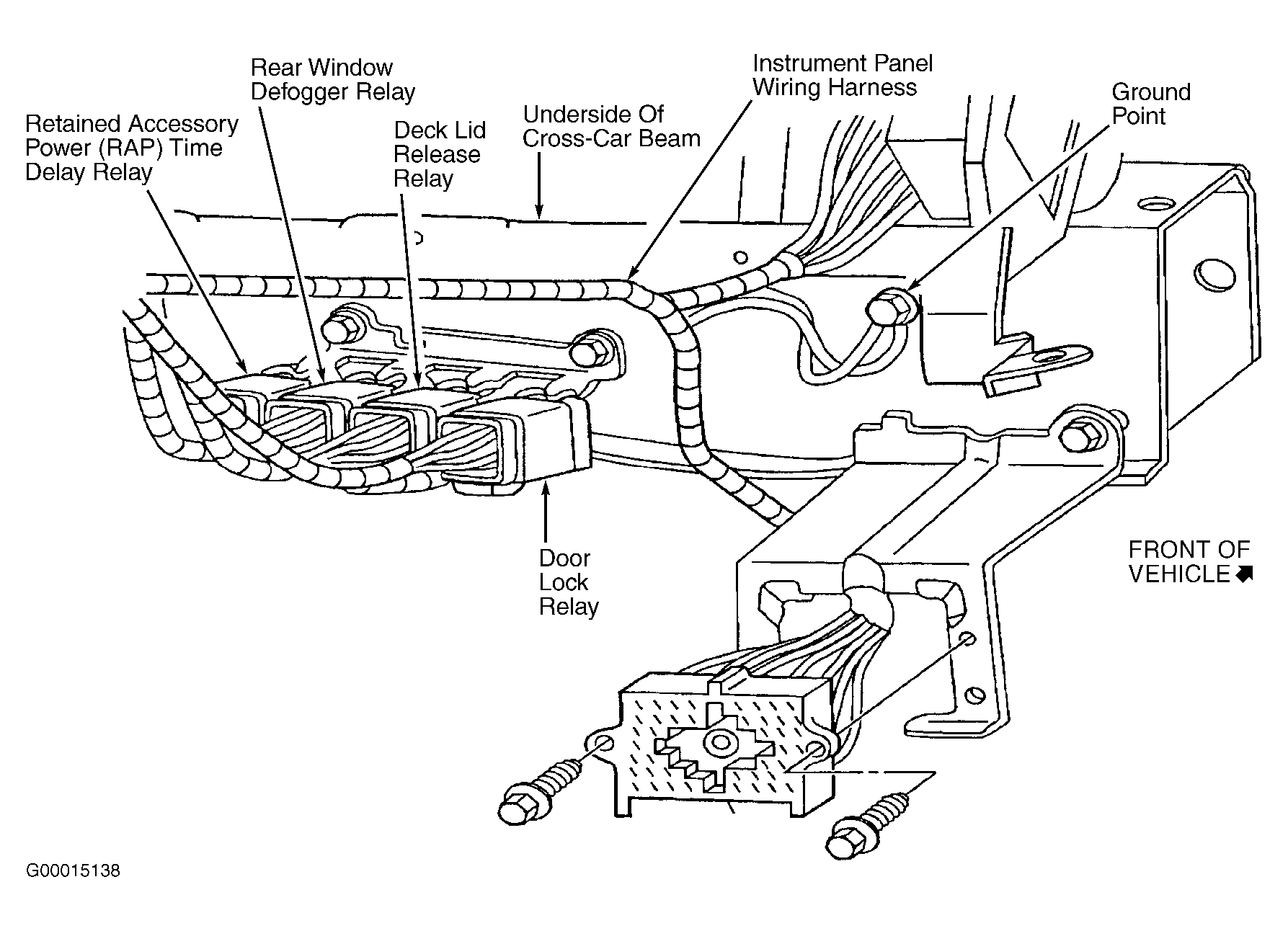

Fig 2: Locating Cross-Car Beam-Mounted Components
G00015138Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Data Link Connector & Splice Pack SP205
G00059246Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Daytime Running Lights Control Module
G00059256Courtesy of GENERAL MOTORS CORP.

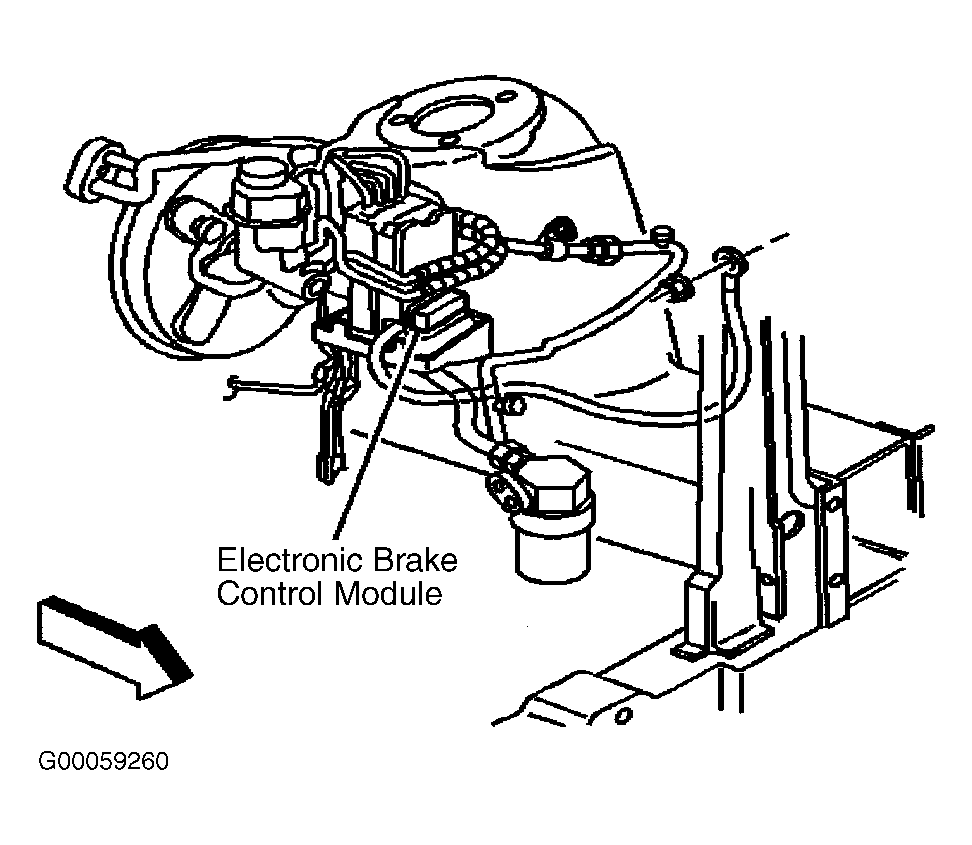

Fig 5: Locating Electronic Brake Control Module
G00059260Courtesy of GENERAL MOTORS CORP.

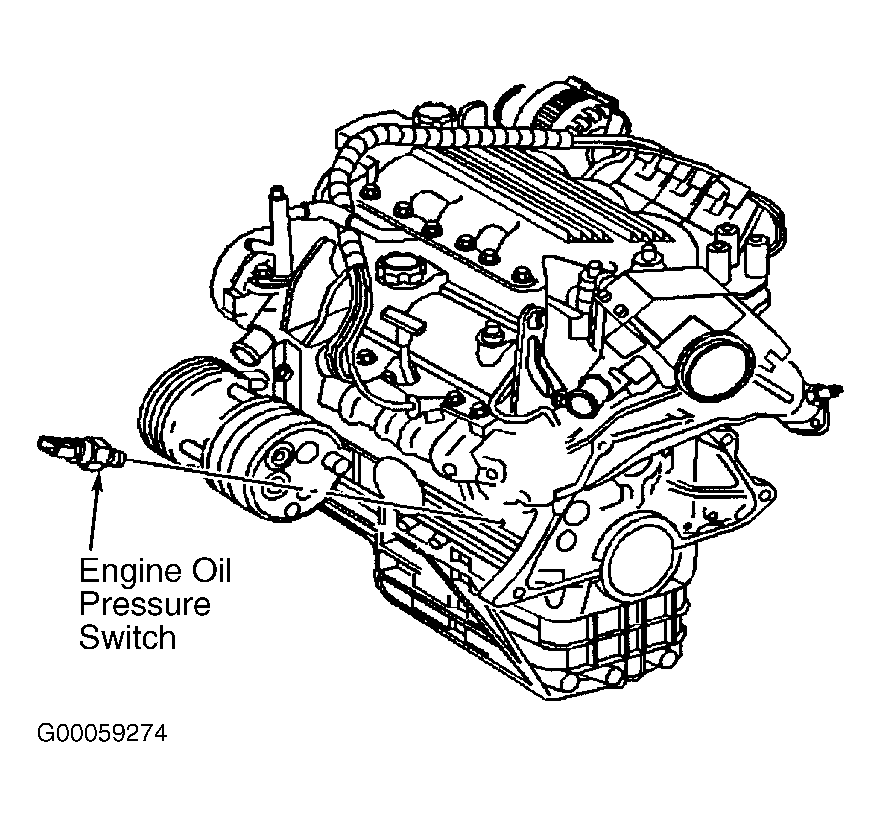

Fig 6: Locating Engine Oil Pressure Switch
G00059274Courtesy of GENERAL MOTORS CORP.
Fig 7: Locating Ignition Key Alarm Switch & Lock Module Assembly
G00059277Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating In-Line Connector C201
G00059276Courtesy of GENERAL MOTORS CORP.
Fig 9: Locating In-Line Connector C305
G00059271Courtesy of GENERAL MOTORS CORP.

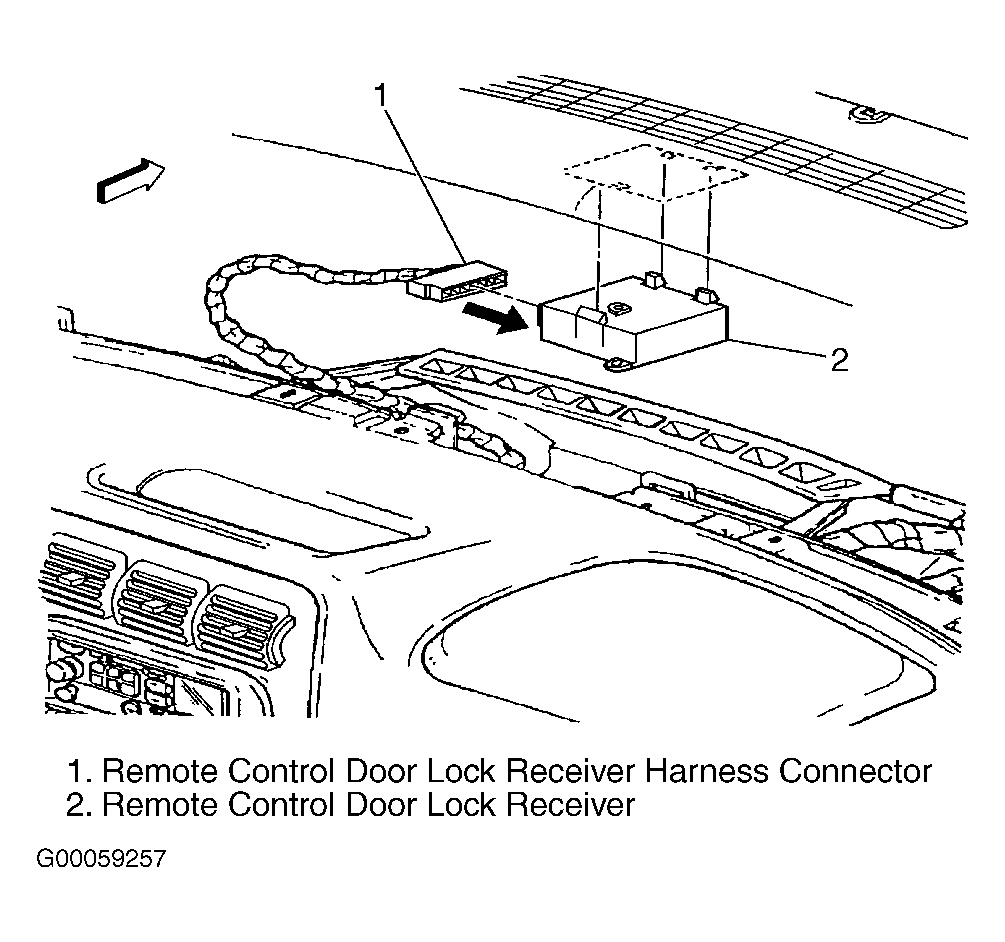

Fig 10: Locating Remote Control Door Lock Receiver
G00059257Courtesy of GENERAL MOTORS CORP.

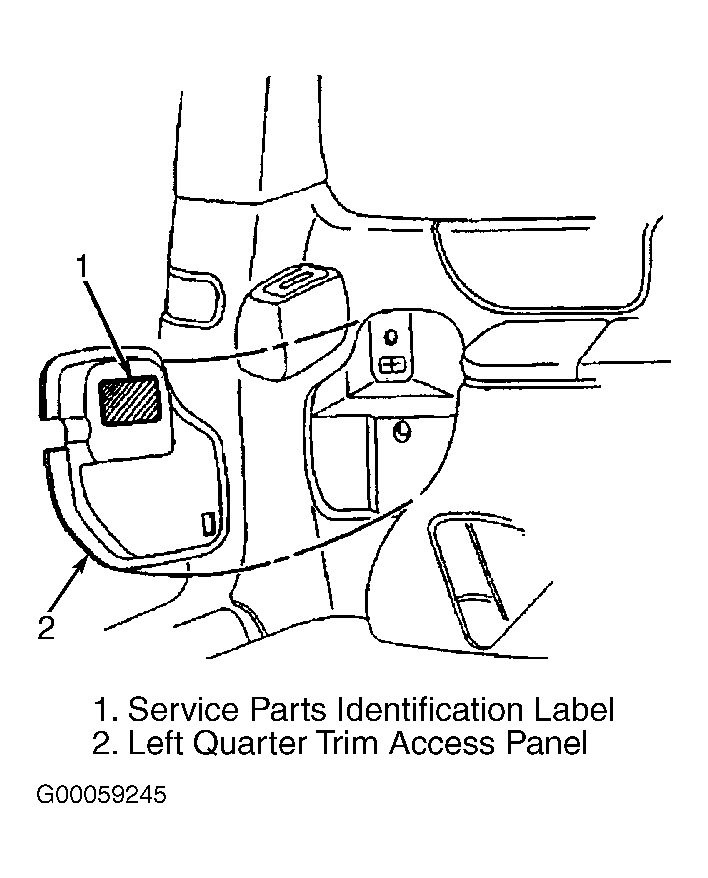

Fig 11: Locating Service Parts Identification Label
G00059245Courtesy of GENERAL MOTORS CORP.

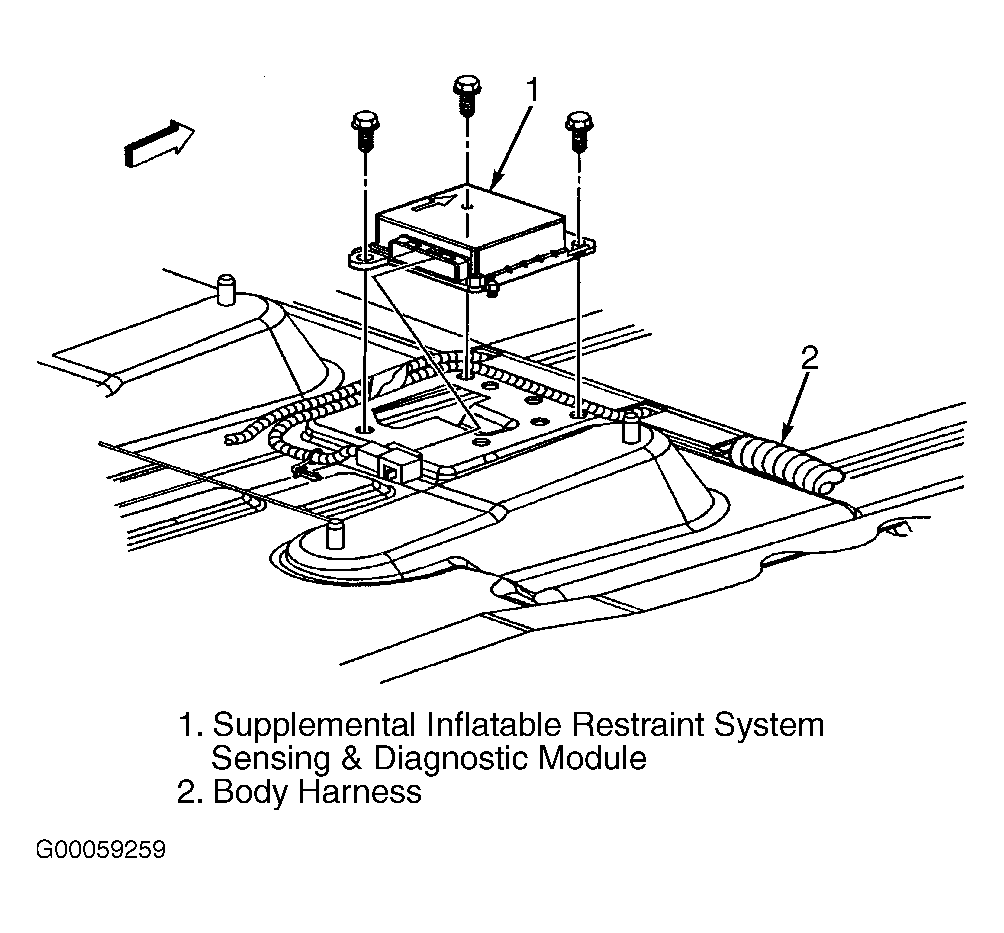

Fig 12: Locating Supplemental Inflatable Restraint System Sensing & Diagnostic Module
G00059259Courtesy of GENERAL MOTORS CORP.
Fig 13: Locating Theft Deterrent Control Module
G00059262Courtesy of GENERAL MOTORS CORP.

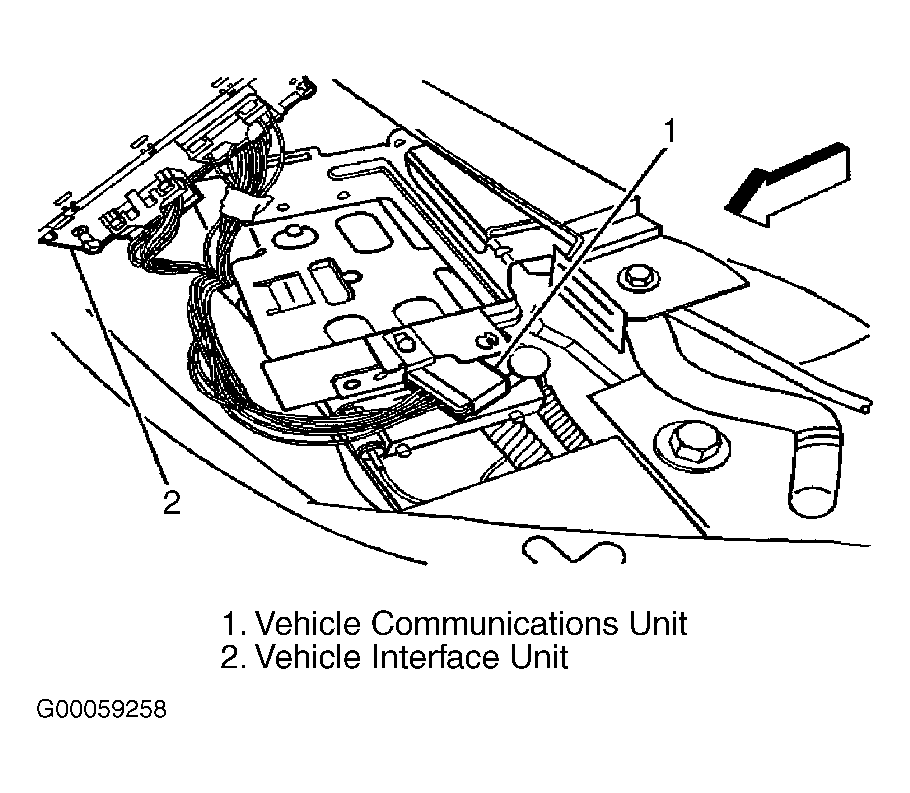

Fig 14: Locating Vehicle Communication Unit & Vehicle Interface Unit
G00059258Courtesy of GENERAL MOTORS CORP.
