Rear Parking Assist Schematics (Rear Object Sensor Control Module, Power and Ground)

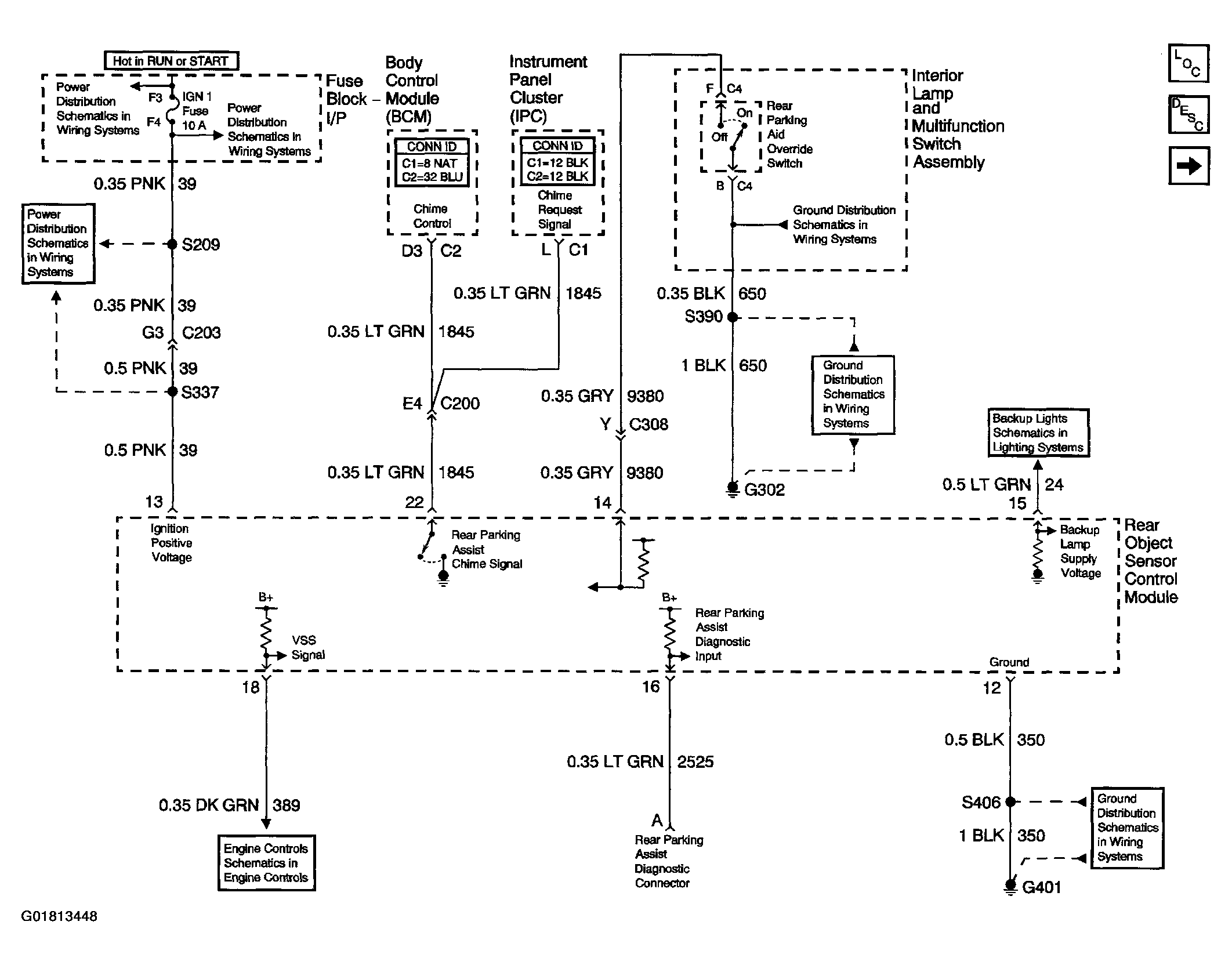

Fig 1: Rear Parking Assist Schematics (Rear Object Sensor Control Module, Power And Ground)
G01813448Courtesy of GENERAL MOTORS CORP.

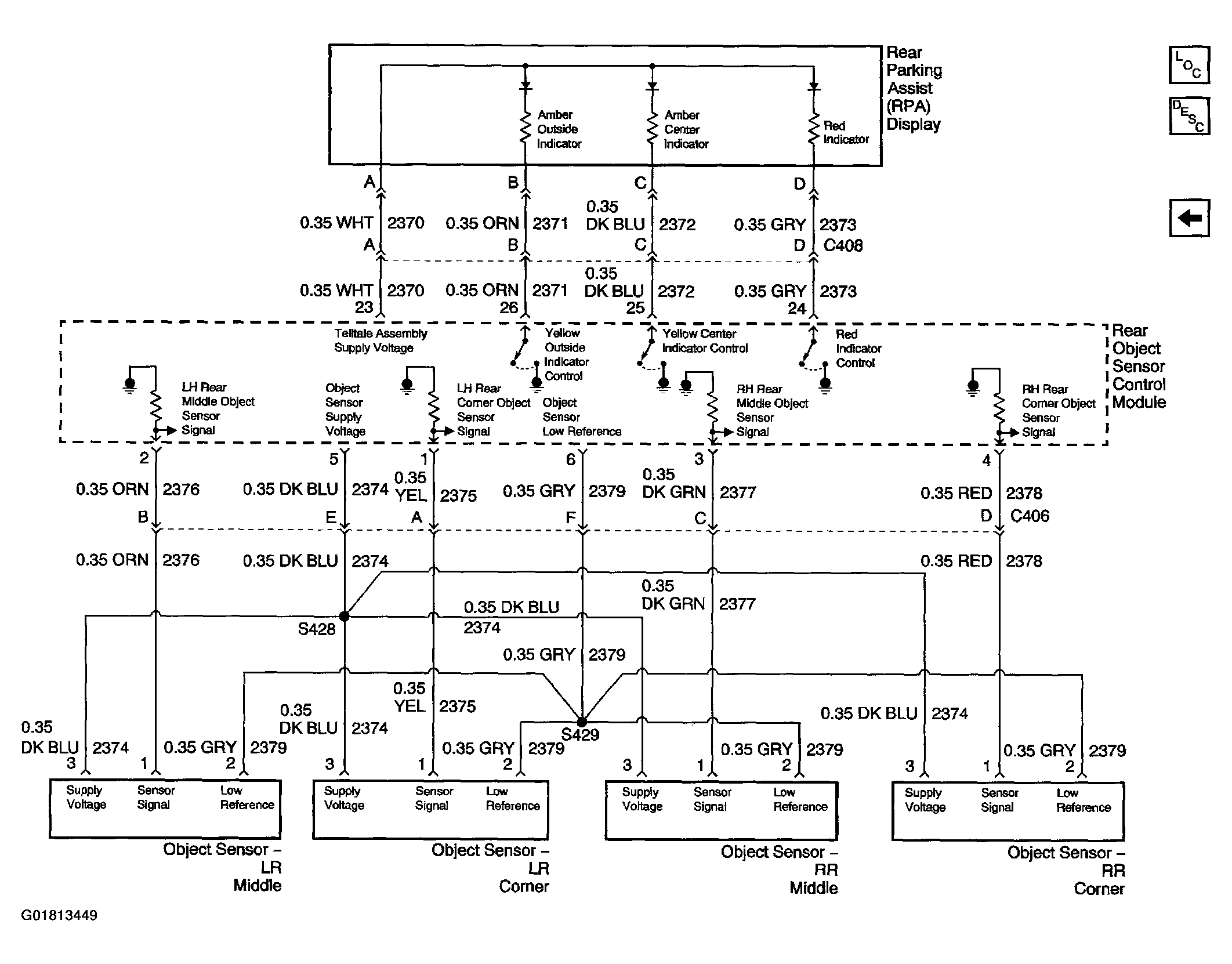

Fig 2: Rear Parking Assist Schematics (Object Sensors)
G01813449Courtesy of GENERAL MOTORS CORP.
