Removal Procedure

Remove rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (OLDSMOBILE) or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC) .

Fig 1: Object Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Lift the locking tabs on the housing (4) and remove the rear object sensor (1).

Fig 2: Removing Locking Tabs On Housing & Rear Object Sensor
Courtesy of GENERAL MOTORS CORP.

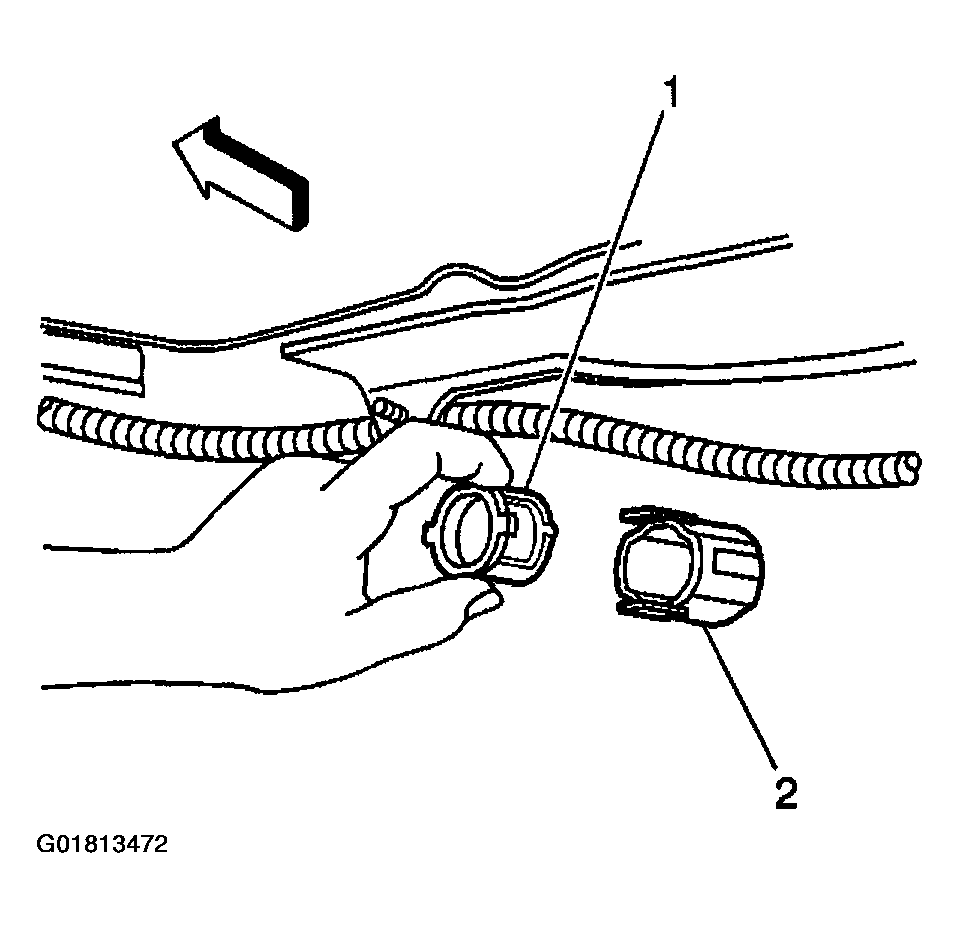

Squeeze the spring (1) and remove it from the housing (2).

Fig 3: Squeezing Spring & Removing From Housing
Courtesy of GENERAL MOTORS CORP.
Release the tabs on the housing and remove.

Fig 4: Releasing Tabs On Housing
Courtesy of GENERAL MOTORS CORP.
Remove the rear object sensor bezel from the rear fascia.

Fig 5: Removing Rear Object Sensor Bezel
Courtesy of GENERAL MOTORS CORP.
