Removal Procedure

Position your fingers between the headliner and the information center telltale assembly bezel and gently pull down to release the display bezel retainers.

Fig 1: Releasing Display Bezel Retainers

Courtesy of GENERAL MOTORS CORP.

Use a small flat-bladed tool to release the locking tab at the rear of the telltale assembly.

Fig 2: Releasing Locking Tab At Rear Of Telltale Assembly Using A Flat-Bladed Tool
Courtesy of GENERAL MOTORS CORP.
Tilt the information center telltale assembly down and pull down to remove.

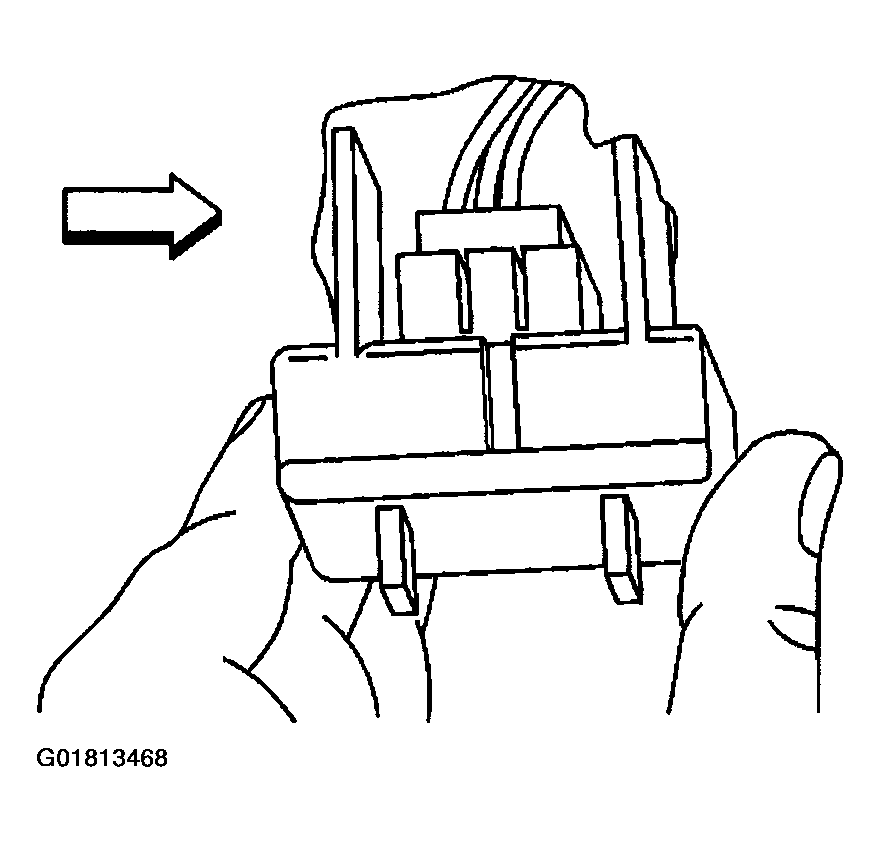

Fig 3: Disconnecting Electrical Connector From Information Center Telltale Assembly
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the information center telltale assembly.
