Installation Procedure

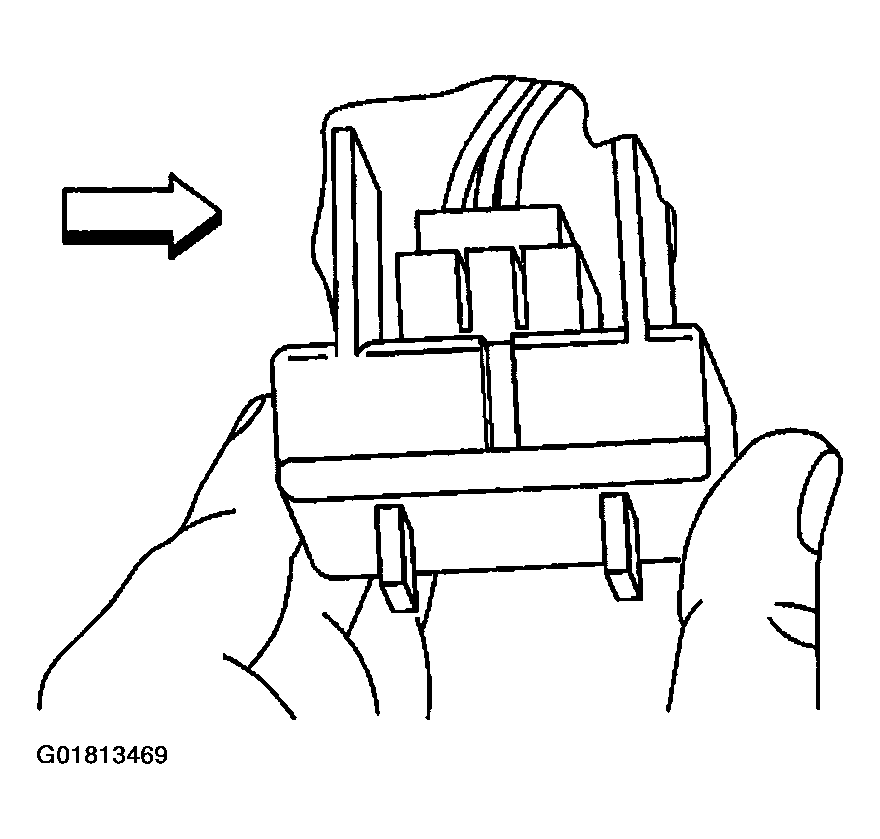

Fig 1: Connecting Electrical Connector To Information Center Telltale Assembly
G01813469Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the information center telltale assembly.
  2. Position the information center telltale assembly into the headliner until locking tab locks into position. It may be necessary to rock the display into position.
  3. Install bezel by pressing into place until the locking tabs are fully seated.
