Rear Parking Assist Connector End Views

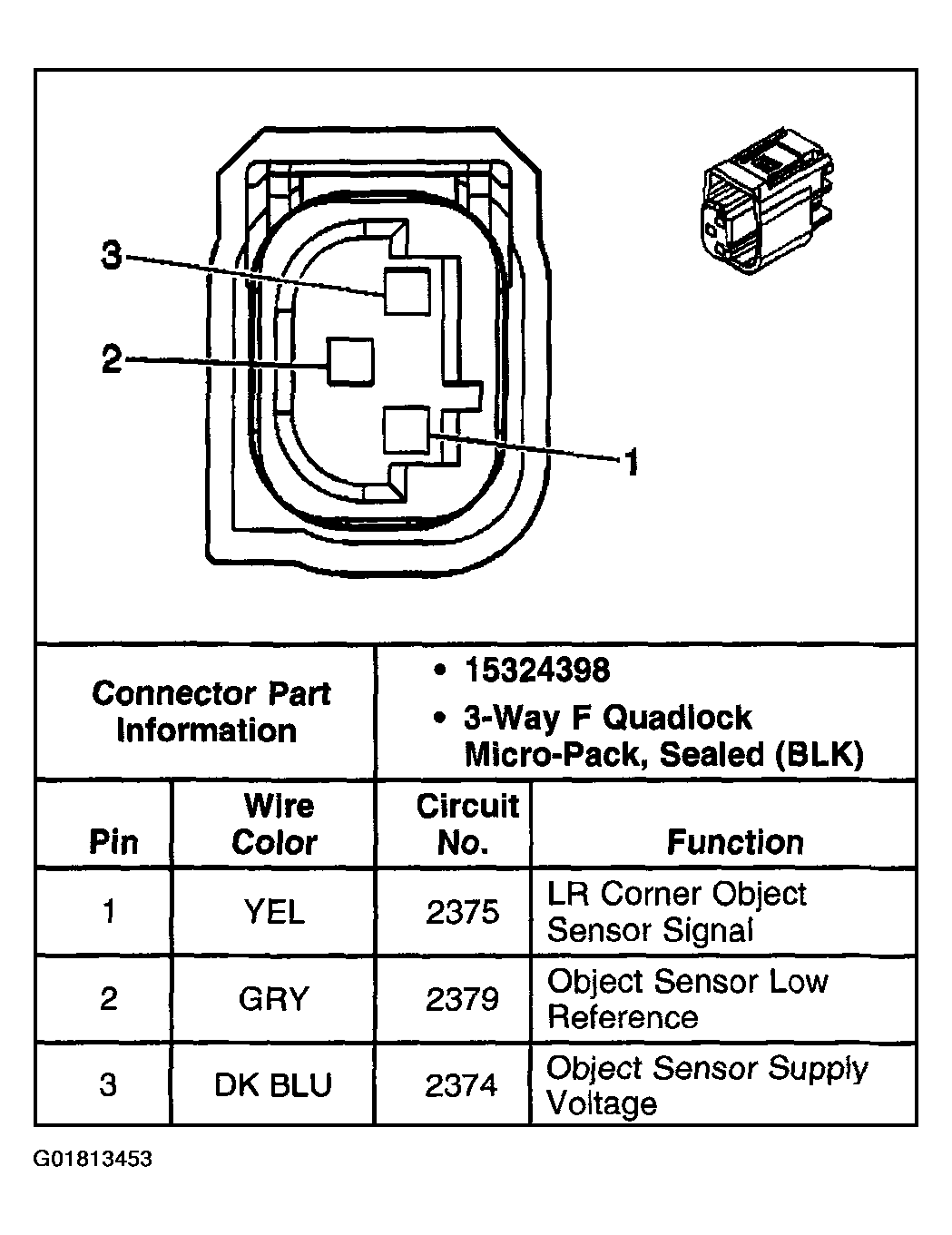

Fig 1: Object Sensor - LR Corner

Courtesy of GENERAL MOTORS CORP.

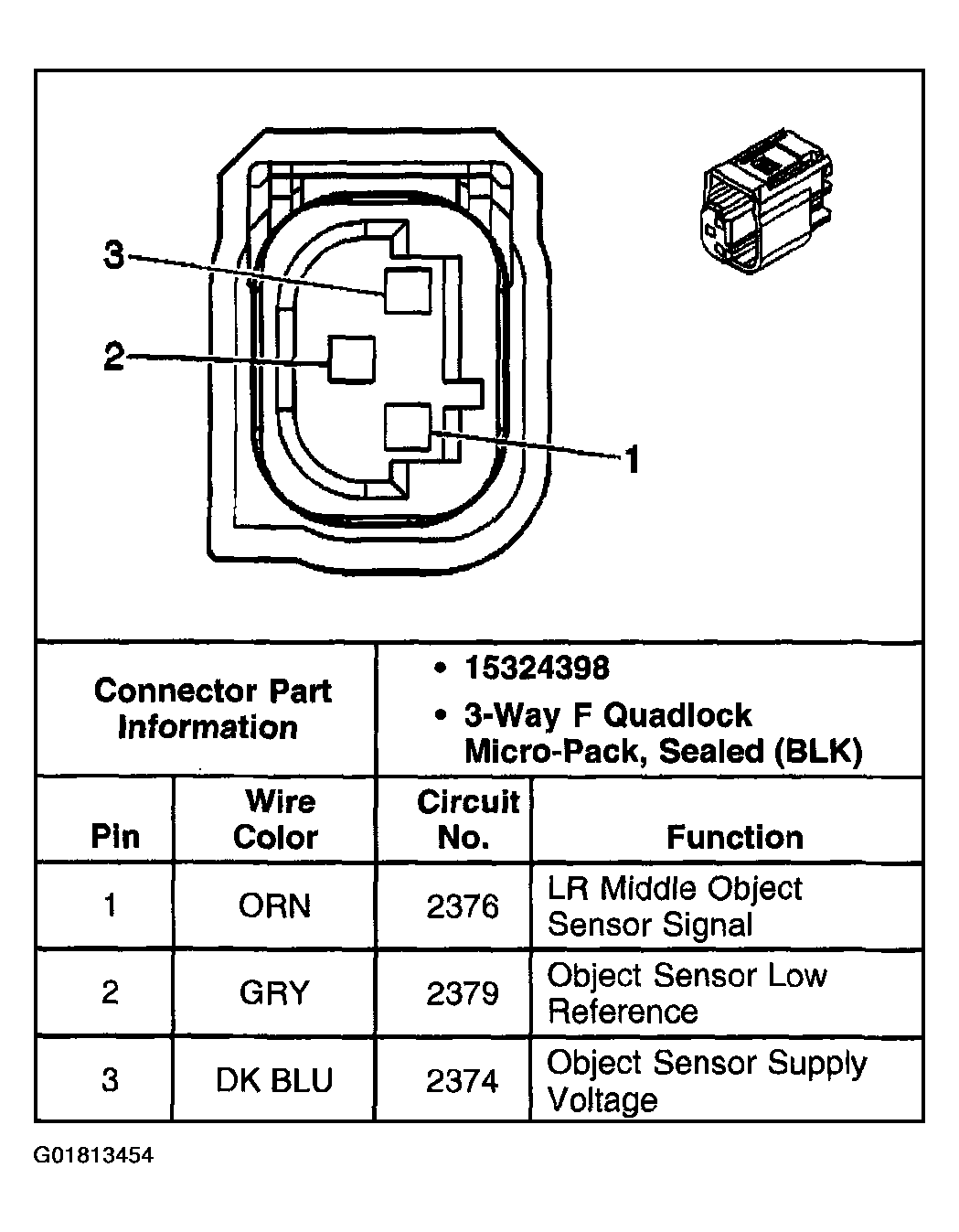

Fig 2: Object Sensor - LR Middle

Courtesy of GENERAL MOTORS CORP.

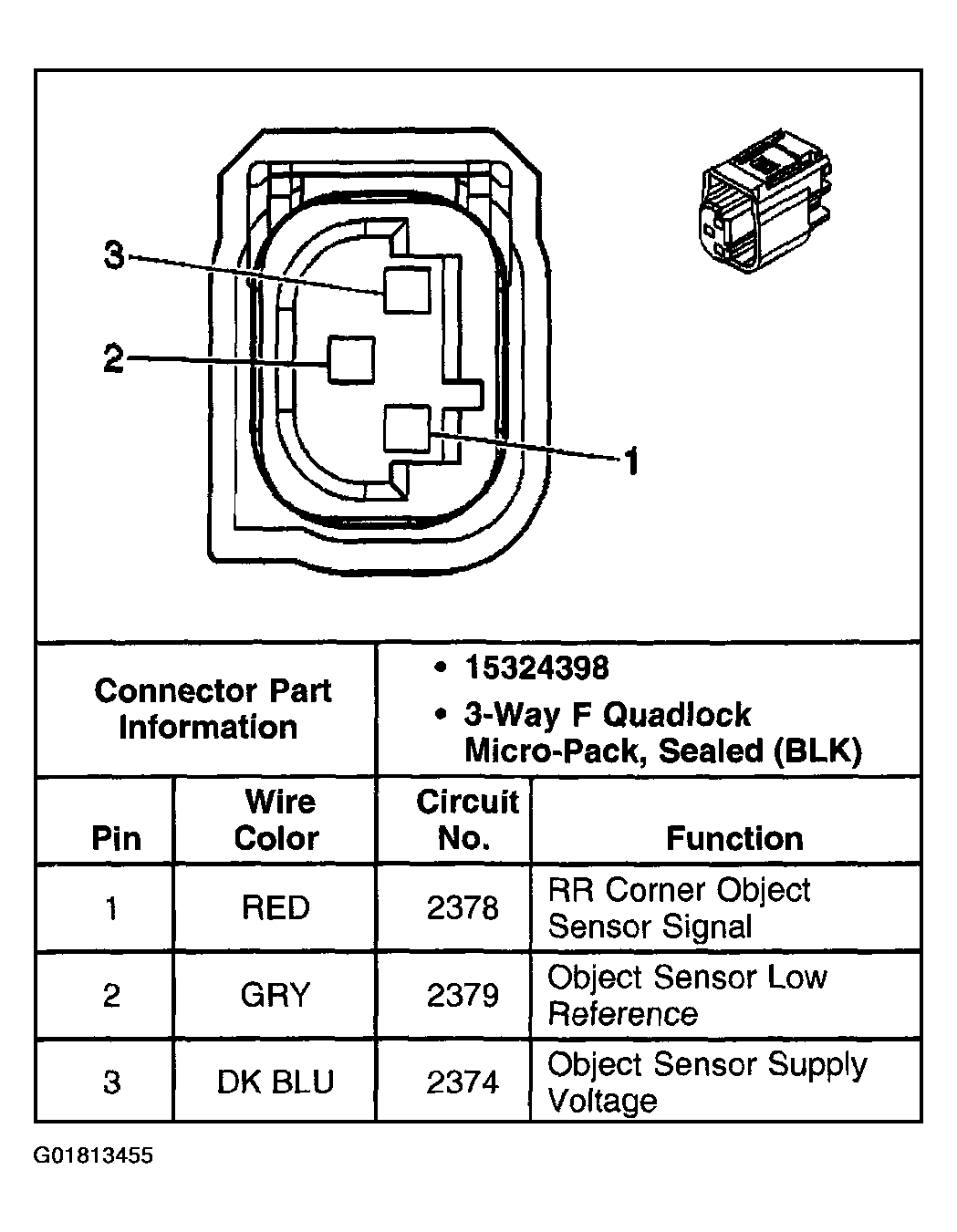

Fig 3: Object Sensor - RR Corner

Courtesy of GENERAL MOTORS CORP.

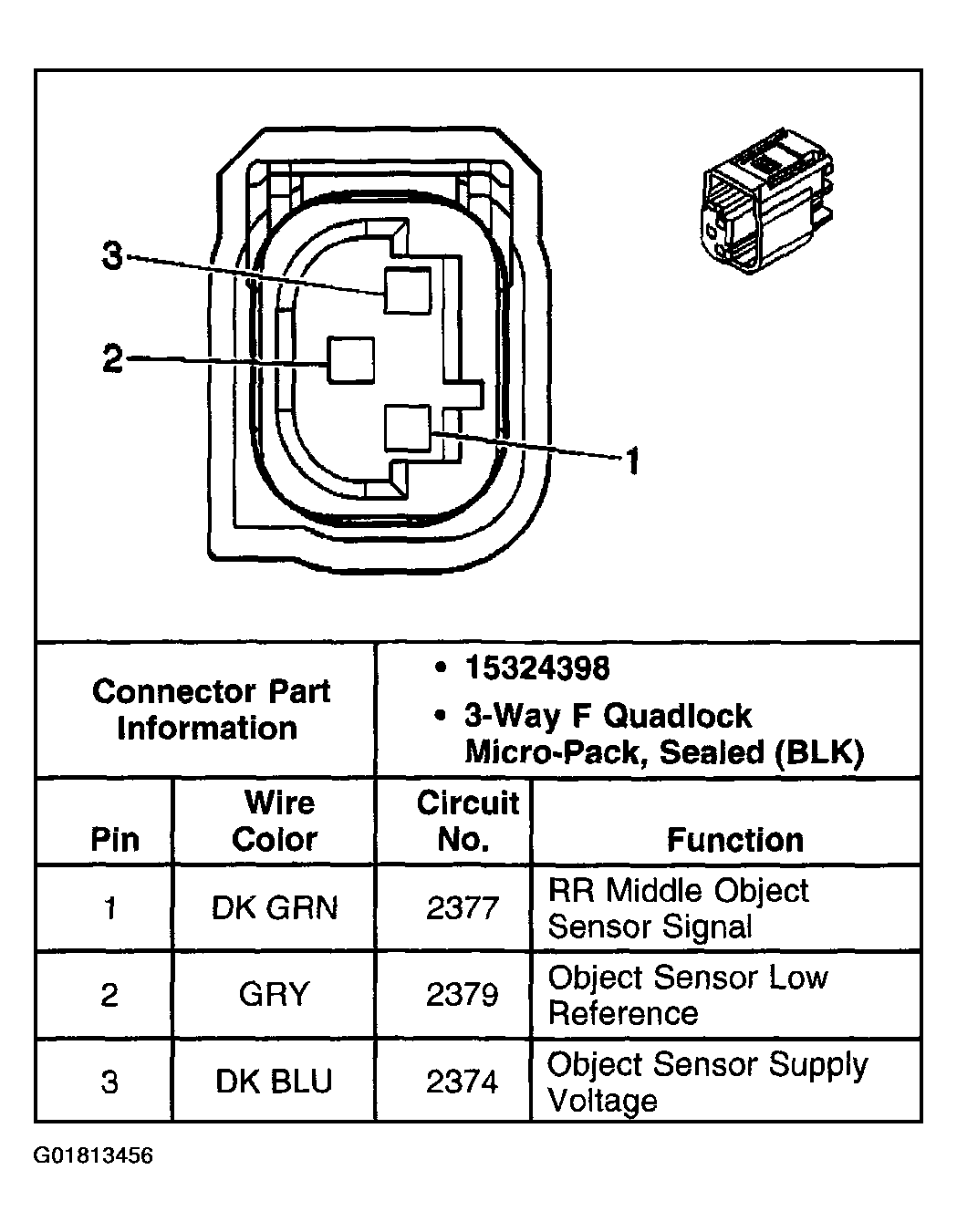

Fig 4: Object Sensor - RR Middle

Courtesy of GENERAL MOTORS CORP.

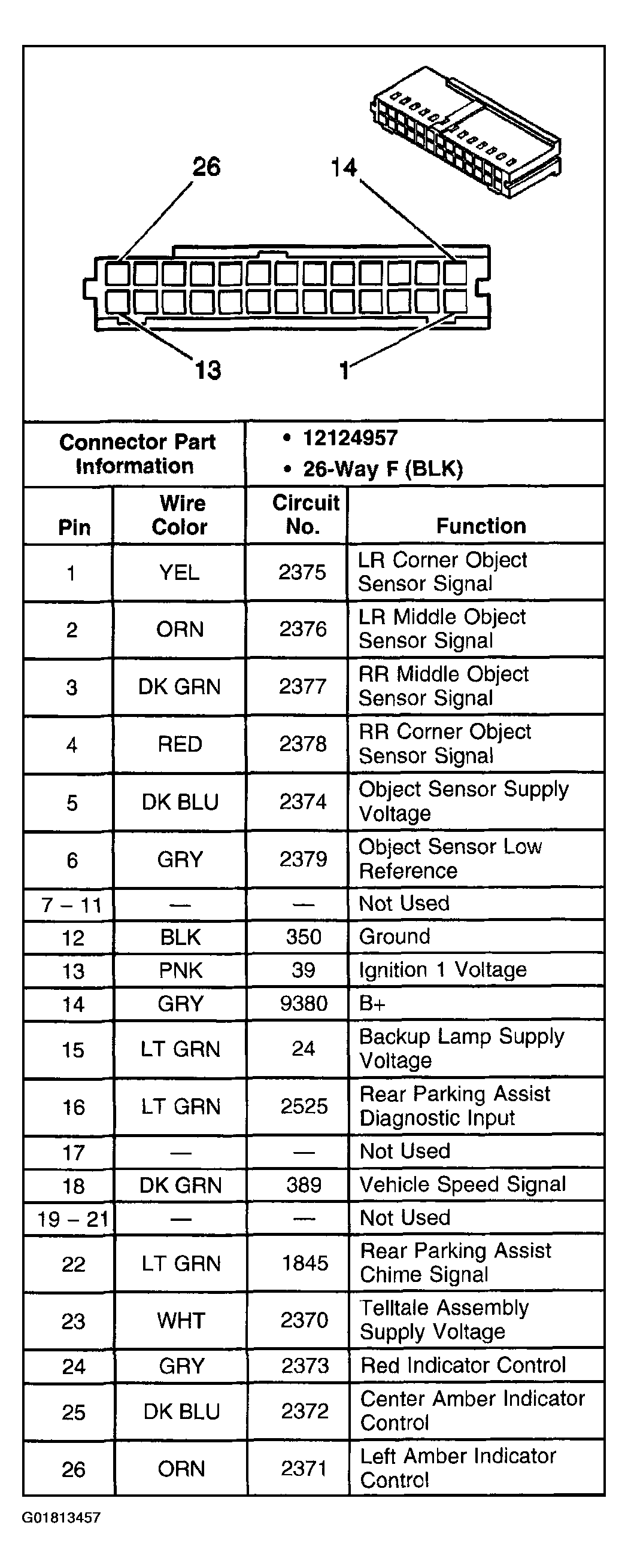

Fig 5: Rear Object Sensor Control Module

Courtesy of GENERAL MOTORS CORP.

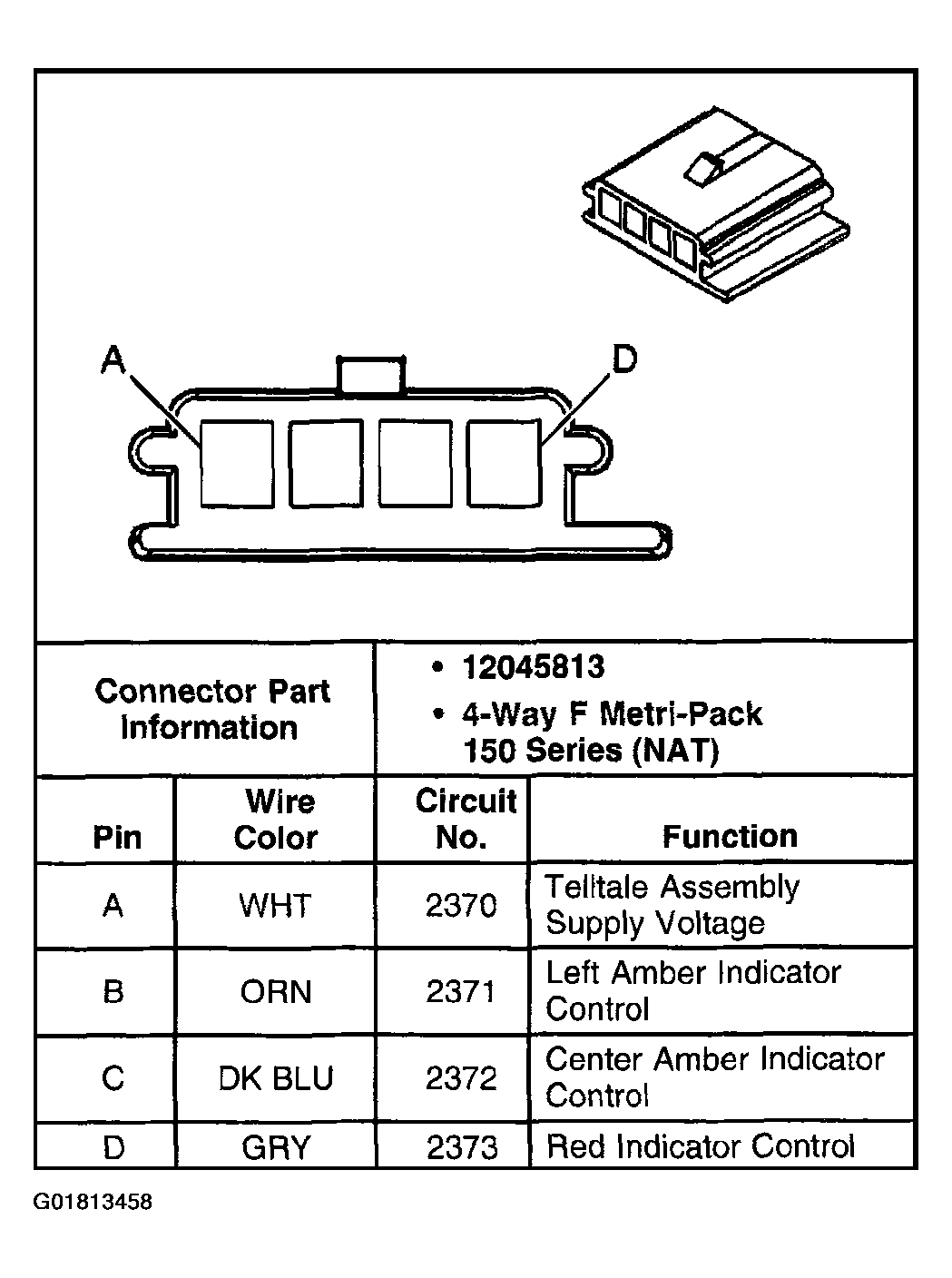

Fig 6: Rear Parking Assist (RPA) Display

Courtesy of GENERAL MOTORS CORP.
