"M" & "T" Series (Caster & Camber)

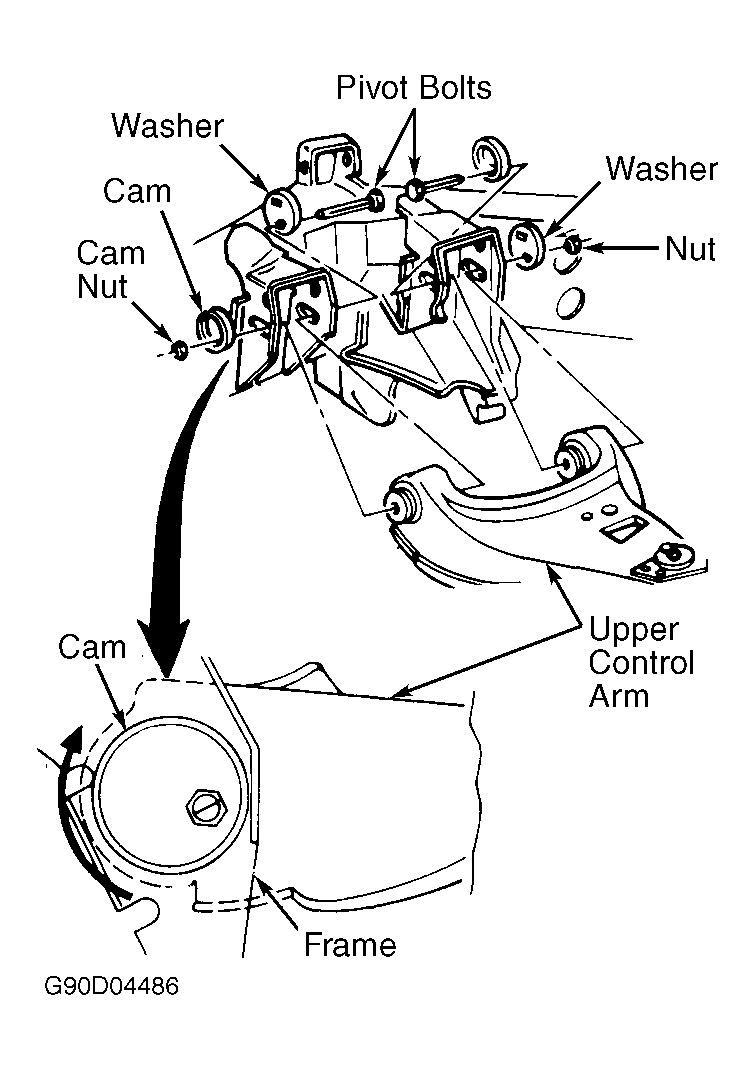

Loosen nut on end of each bolt securing upper control arm to frame brackets. See Figure and Figure . Rotate bolts until camber and caster are within specification. See WHEEL ALIGNMENT SPECIFICATIONS  table. Tighten nuts to specification. See TORQUE SPECIFICATIONS  .
