| A/C Compressor-To-Bracket Bolt |
17 (23) |
| A/C Compressor Bracket-To Block Bolt |
40 (55) |
| Camshaft Position Sensor Bolt |
11 (15) |
| Camshaft Sprocket Bolt |
58 (80) |
| Connecting Rod Nut |
33 (45) |
| Coolant By-Pass Pipe Bolt |
11 (15) |
| Crankshaft Pulley Bolt |
109 (150) |

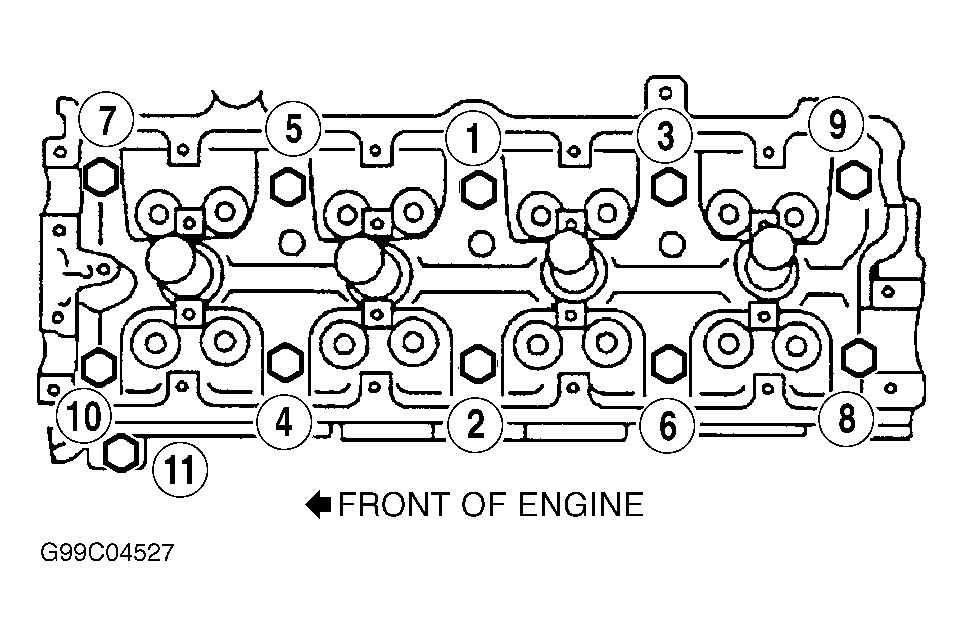

| Cylinder Head Bolt |
| Step 1 (Bolts 1-10) |
39 (53) |
| Step 2 (Bolts 1-10) |
61 (84) |
| Step 3 (Bolts 1-10) |
Fully Loosen Bolts |
| Step 4 (Bolts 1-10) |
39 (53) |
| Step 5 (Bolts 1-10) |
61 (84) |
| Step 6 (Bolts 1-10) |
76 (105) |
| Step 7 (Bolt 11) |
97 INCH lbs. (11) |
| Engine Mounts |
| Bracket-To-Block Bolt |
37 (50) |
| Bracket-To-Body Bolt |
62 (85) |
| Insulator Nuts |
37 (50) |
| Exhaust Bracket-To-Manifold Nut |
37 (50) |
| Exhaust Heat Shield Bolt (Upper & Lower) |
11 (15) |
| Exhaust Manifold-To-Cylinder Head Bolt/Nuts |
37 (50) |
| Exhaust Pipe-To-Manifold Nuts |
37 (50) |
| Flywheel/Flex Plate Bolt |
| A/T |
51 (70) |
| M/T |
51 (70) |
| Fuel Rail Banjo Fitting |
22 (30) |
| Fuel Rail-To-Cylinder Head Bolt |
17 (23) |

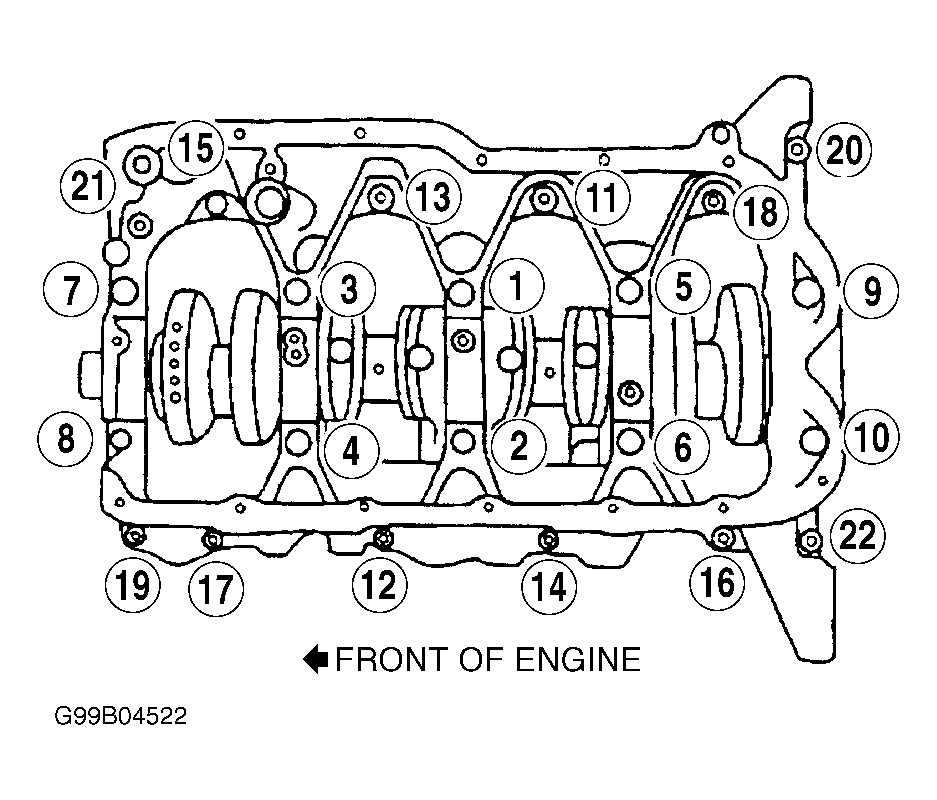

| Lower Crankcase Bolts |
| Step 1 |
14 (19) |
| Step 2 |
20 (27) |
| Idler Pulley Nut |
33 (45) |
| Intake Manifold Bolt/Nut |
19 (25) |
| Intake Manifold Support Bracket Bolt |
| Front |
33 (45) |
| Top |
11 (15) |
| Main Bearing Cap Bolt |
| Step 1 |
31 (42) |
| Step 2 |
44 (60) |
| Oil Drain Plug |
26 (35) |
| Oil Pump Bolt |
20 (27) |
| Power Steering Pump Bolt |
19 (25) |
| Serpentine Belt Tensioner Bolt |
18 (24) |
| Spark Plugs |
18 (24) |
| Starter Bolt |
22 (30) |
| Timing Chain Tensioner Nut (Camshaft) |
33 (45) |
| Transmision-To-Engine Bolt |
62 (85) |
| Water Pump Mounting Bolt |
20 (27) |
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |

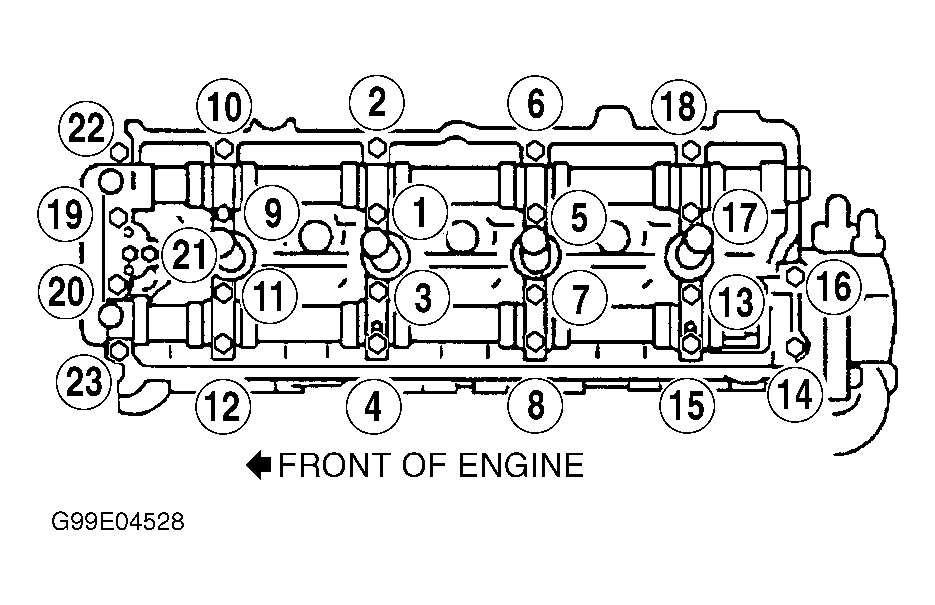

| Camshaft Bearing Cap Bolt |
97 (11) |
| Crankshaft Position Sensor Bolt |
53 (6) |
| Oil Pan Bolt |
97 (11) |
| Oil Pump Housing Bolt |
106 (12) |
| Oil Pump Pick-Up Tube Bolt |
97 (11) |
| Rear Seal Retainer Bolt |
106 (12) |
| Timing Chain Housing (Front Cover) |
97 (11) |
| Timing Chain Tensioner Bolt (Camshaft) |
97 (11) |
| Timing Chain Tensioner Bolt (Crankshaft) |
97 (11) |
| Timing Chain Tensioner Guide Bolt (Crankshaft) |
80 (9) |
| Valve Cover Bolt |
97 (11) |
| Water Pump Pulley Bolt |
97 (11) |
