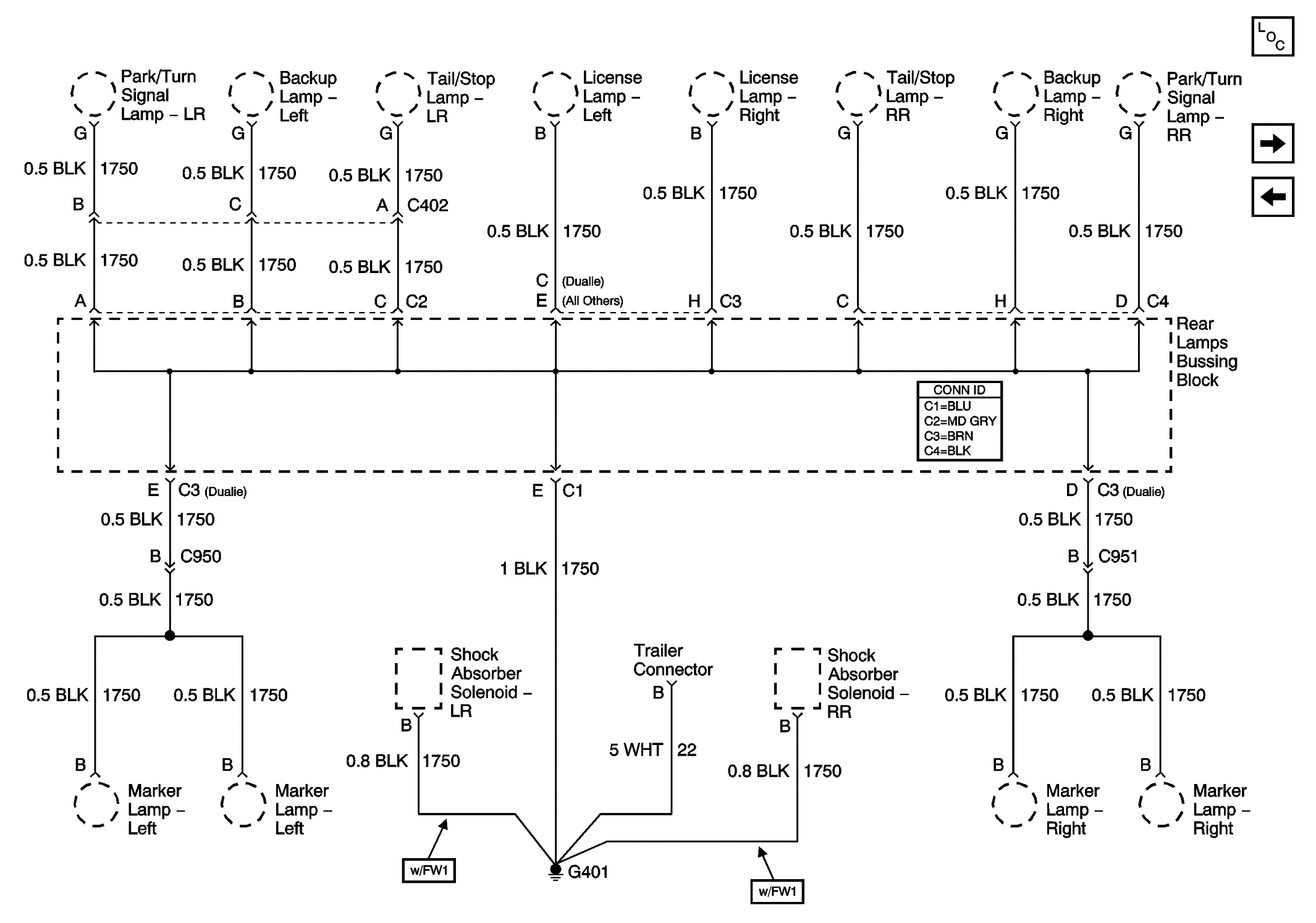

Home >> Chevrolet >> 2001 >> Silverado 1500 HD, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics and Wiring Harness Routing Diagrams >> Ground Distribution Wiring Schematics >> G401- w/Rear Bussing Block
