Turn Signal Cancel Cam and Bearing Thrust Washer - Assemble - Off Vehicle (Floor shift Export)

Tools Required

J 23653-SIR Lock Plate Compressor

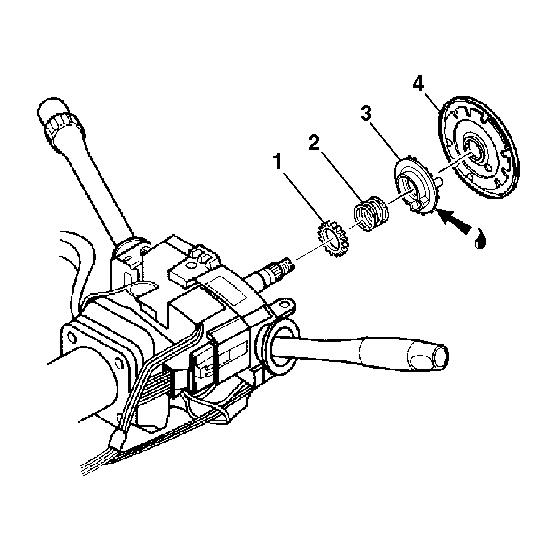

Fig 1: View Of Steering Shaft Assembly
Courtesy of GENERAL MOTORS COMPANY
1. Install the following parts onto the steering shaft assembly:
   1. The thrust washer (1).
   2. The upper bearing spring (2).
   3. Lubricate the turn signal cancel cam assembly (3) with lithium grease.
   4. The turn signal cancel cam assembly (3).
   5. The shaft lock shield assembly (4).
Fig 2: View Of Bearing Retainer
Courtesy of GENERAL MOTORS COMPANY
2. Compress the shaft lock shield assembly (2) using J 23653-SIR .
3. Install the new bearing retainer (1) onto the steering shaft assembly.
4. Firmly seat the bearing retainer (1) into the groove on the steering shaft assembly.
5. Remove J 23653-SIR from the steering shaft assembly.
6. Install the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Assemble - Off Vehicle (Floor shift Export) .
