Instrument Cluster: Installation

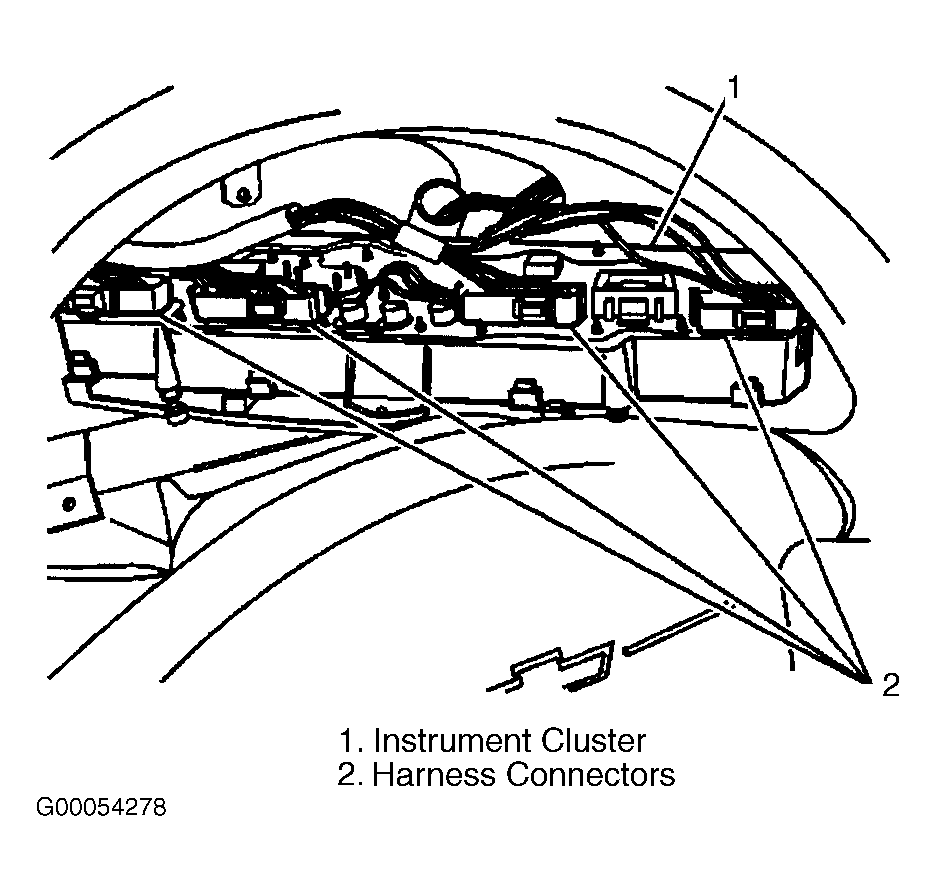

  1. Connect 4 electrical harness connectors (2) to instrument cluster assembly (1). See Figure .
  2. Install cluster assembly to instrument panel assembly.
  3. Secure assembly with 3 screws.
  4. Install instrument panel cluster trim panel. See INSTRUMENT CLUSTER TRIM PANEL - STANDARD COLUMN  or INSTRUMENT CLUSTER TRIM PANEL - TILT COLUMN  .
