Instrument Cluster Trim Panel - Standard Column: Installation

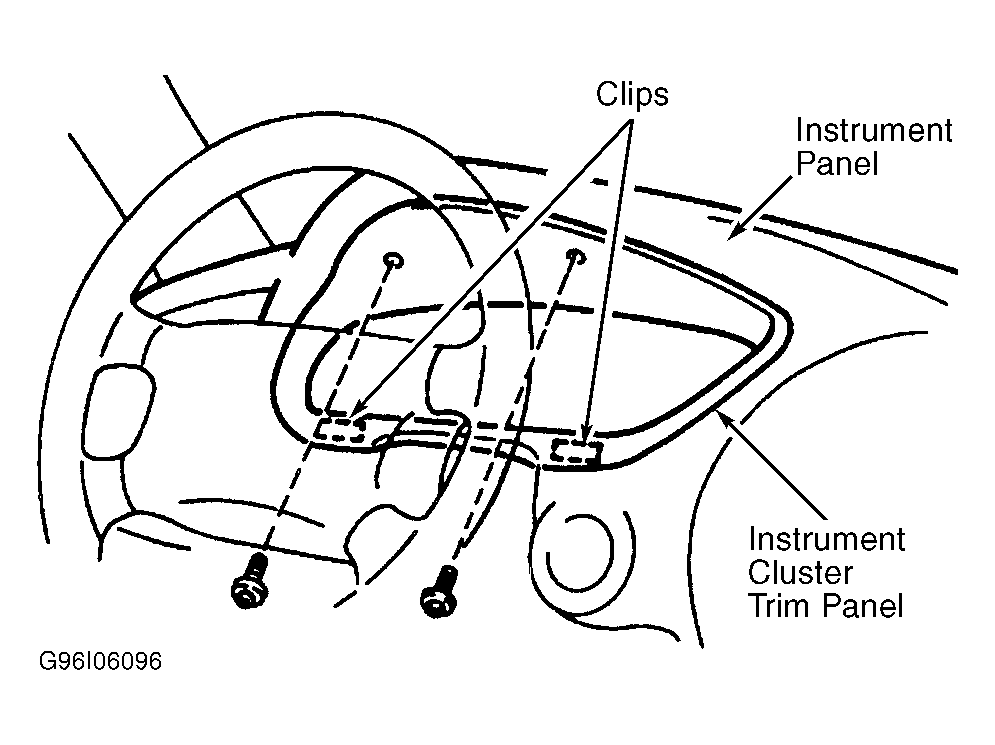

  1. Gently install instrument panel cluster trim panel by pressing into place until fully seated. Secure trim panel with 2 screws. See Figure .

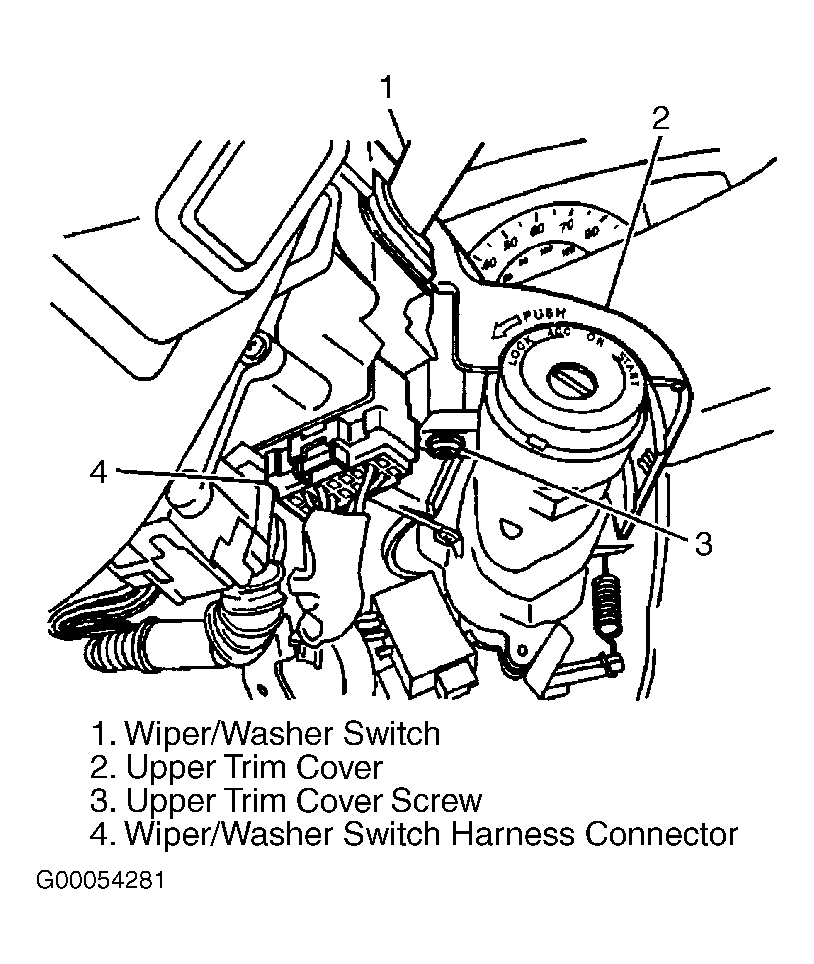

  2. Install steering column upper trim cover (2) to vehicle. Secure trim cover with screw (3). See Figure .

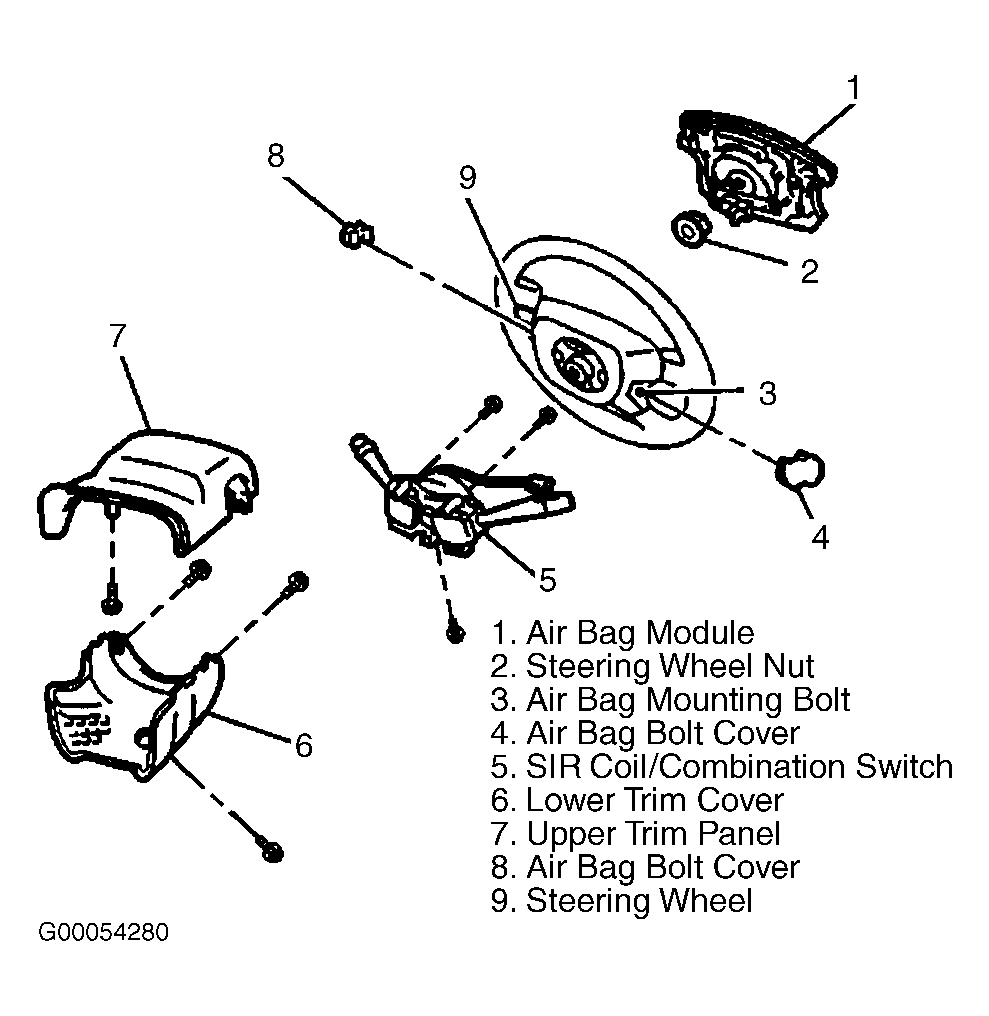

  3. Install steering column lower trim cover (6) to vehicle. See Figure . Secure trim cover with 3 screws.
  4. Enable SIR System. See appropriate AIR BAG SYSTEMS article.
