Instrument Cluster Indicators: Installation

  1. Install bulb to socket (1).

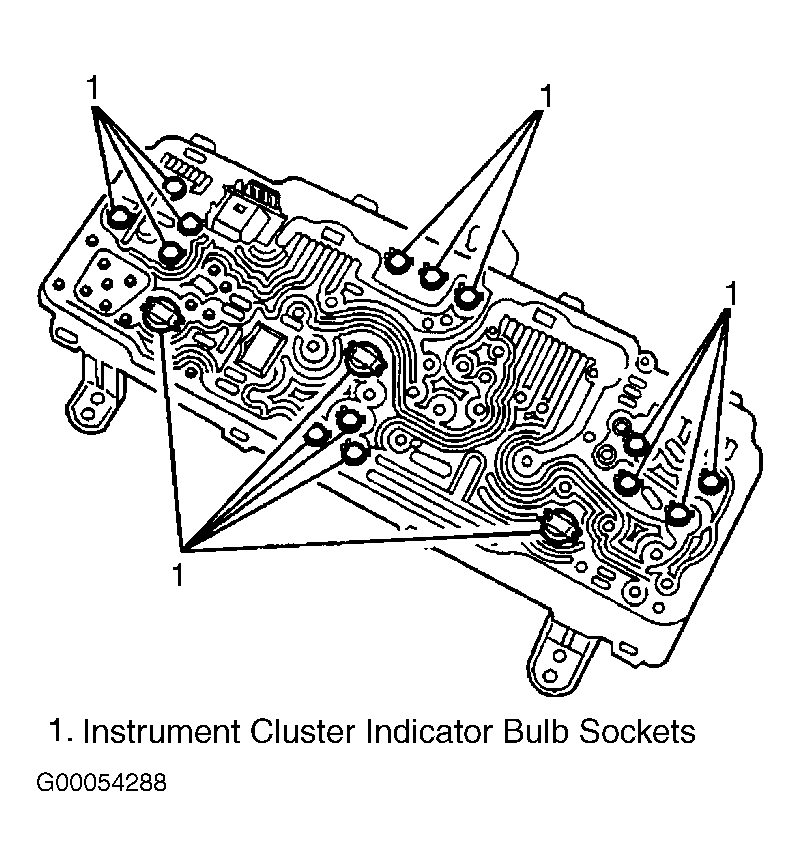

  2. Install instrument cluster bulb socket (1) to instrument cluster case by turning in a clockwise direction. See Figure .
  3. Install instrument cluster retainer. See INSTRUMENT CLUSTER BEZEL  .
