Instrument Cluster Bezel: Installation

  1. Install instrument cluster lens (2) to instrument cluster retainer (1). Ensure locking tabs are fully engaged. See Figure .

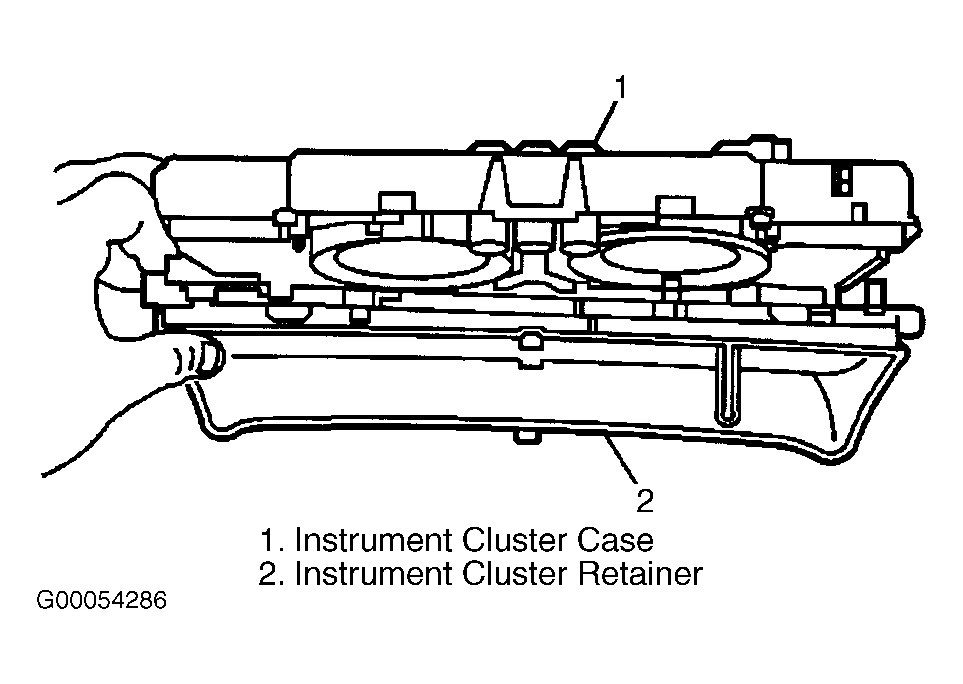

  2. Align cluster retainer (2) with cluster lens attached onto guide pins and install retainer to instrument cluster case (1). Ensure locking tabs are fully engaged. See Figure .
  3. Install instrument cluster assembly. See INSTRUMENT CLUSTER TRIM PANEL - STANDARD COLUMN  or INSTRUMENT CLUSTER TRIM PANEL - TILT COLUMN  .
