Automatic Transmission System Hydraulic Diagrams

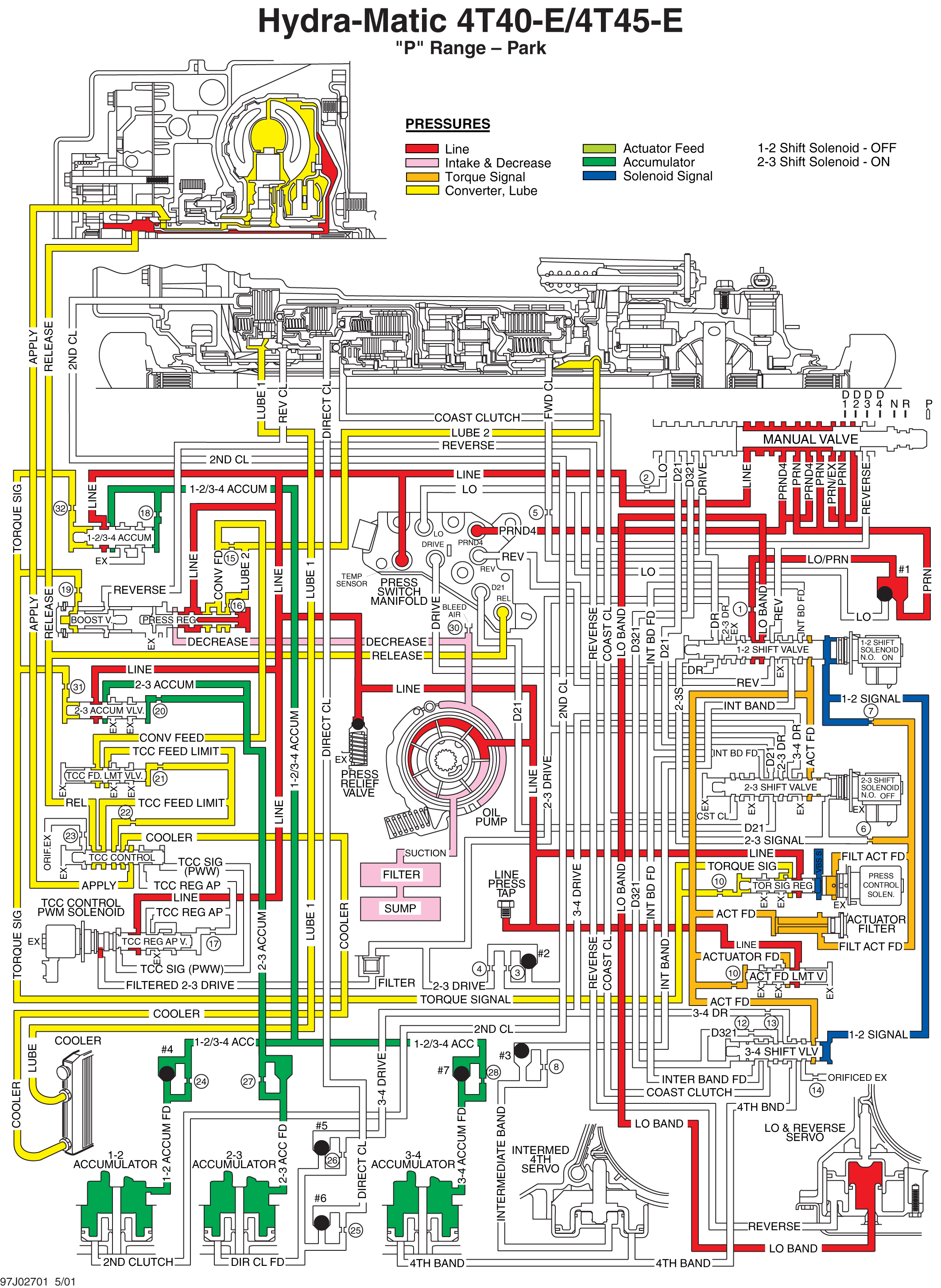

Fig 1: "P" Range - Park

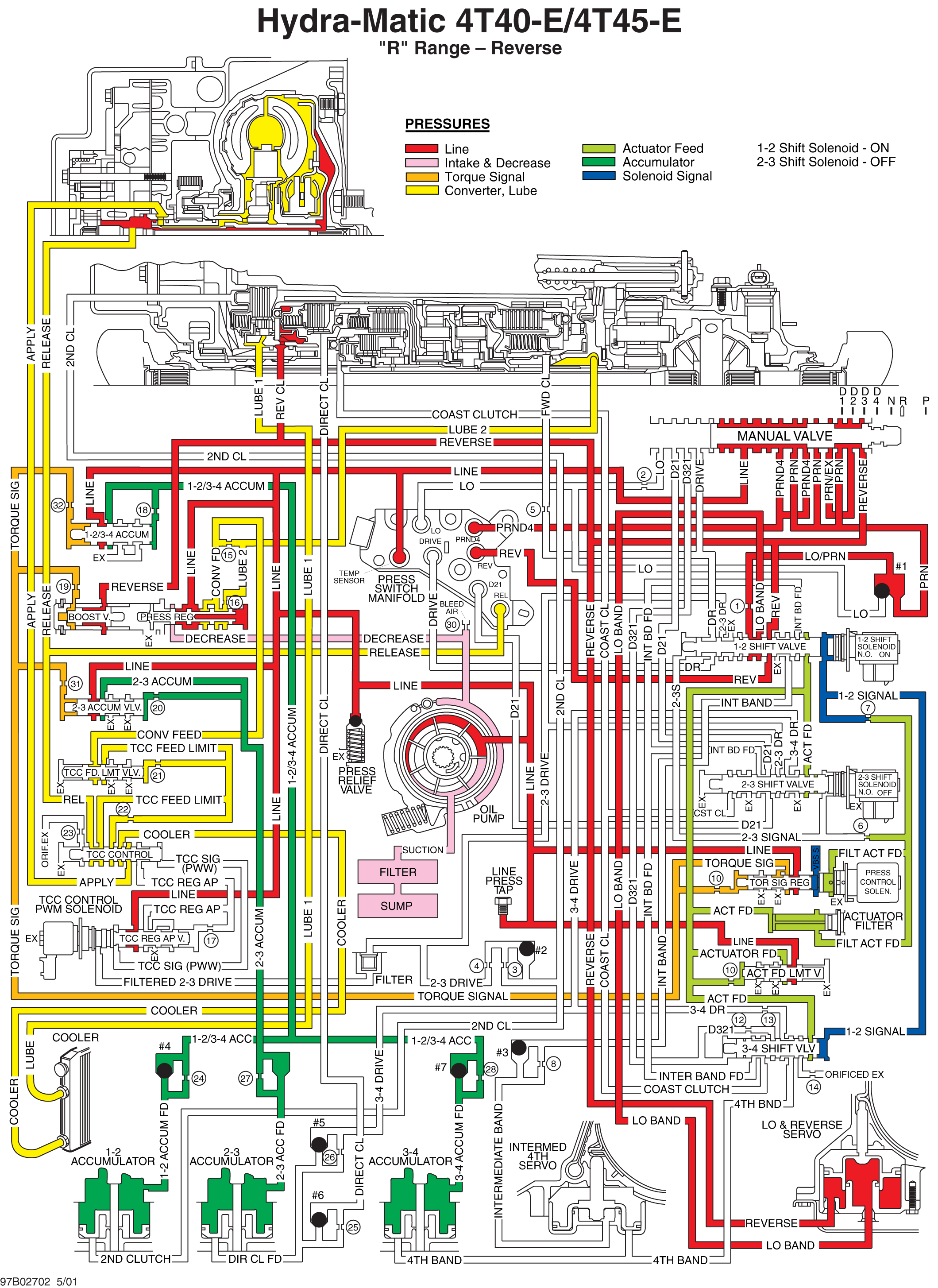

Fig 2: "R" Range - Reverse

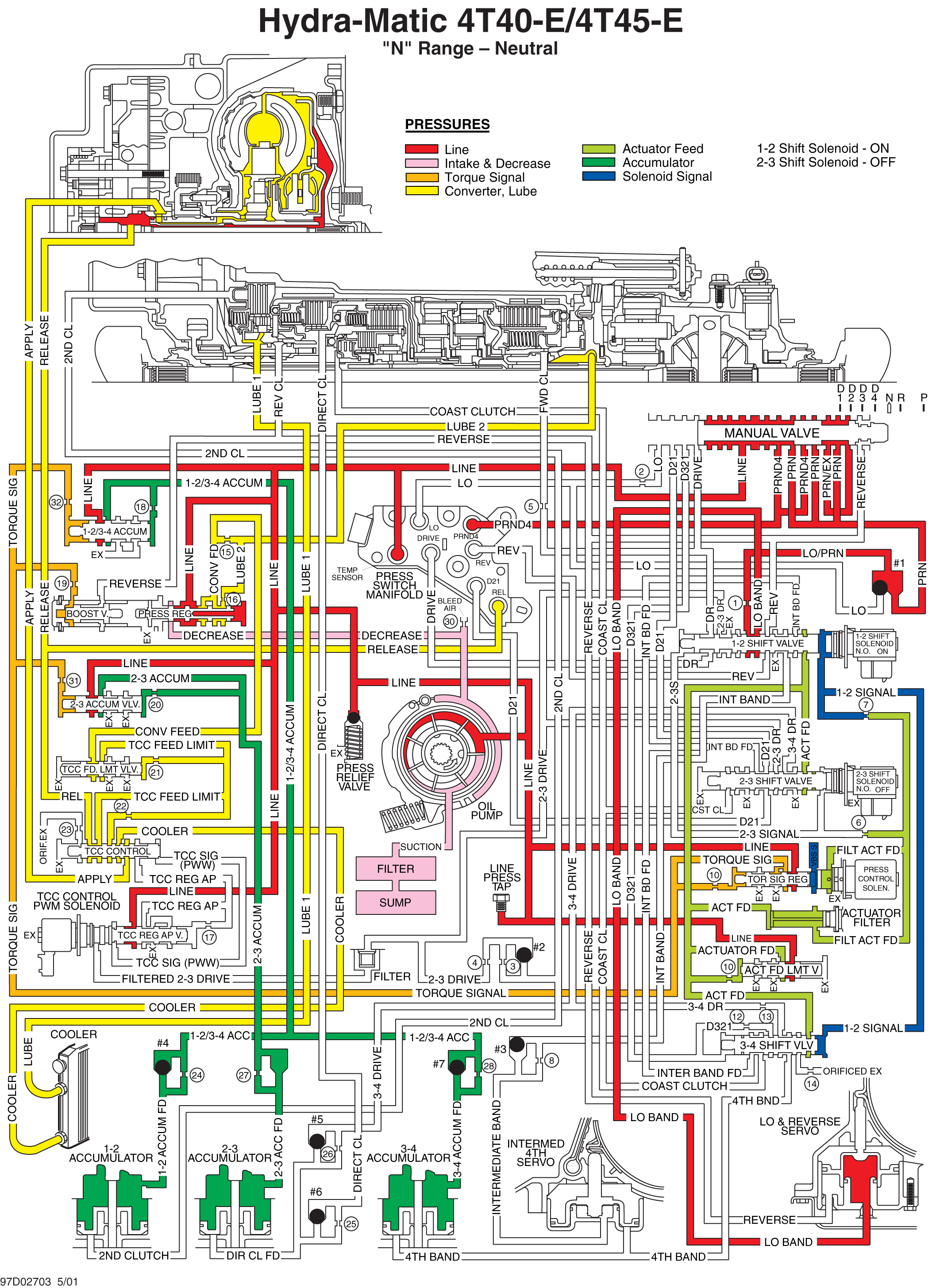

Fig 3: "N" Range - Neutral

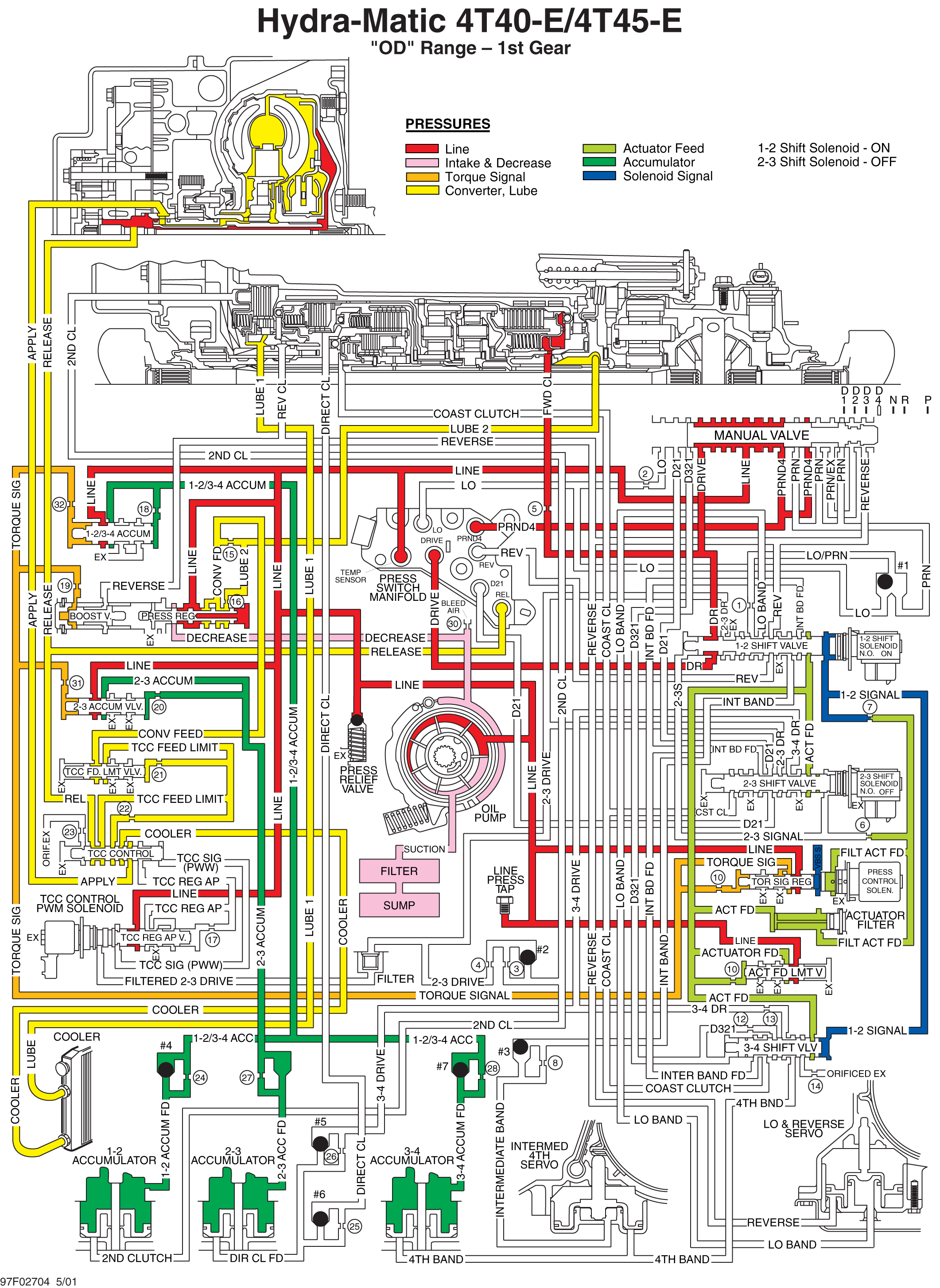

Fig 4: "OD" Range - 1st Gear

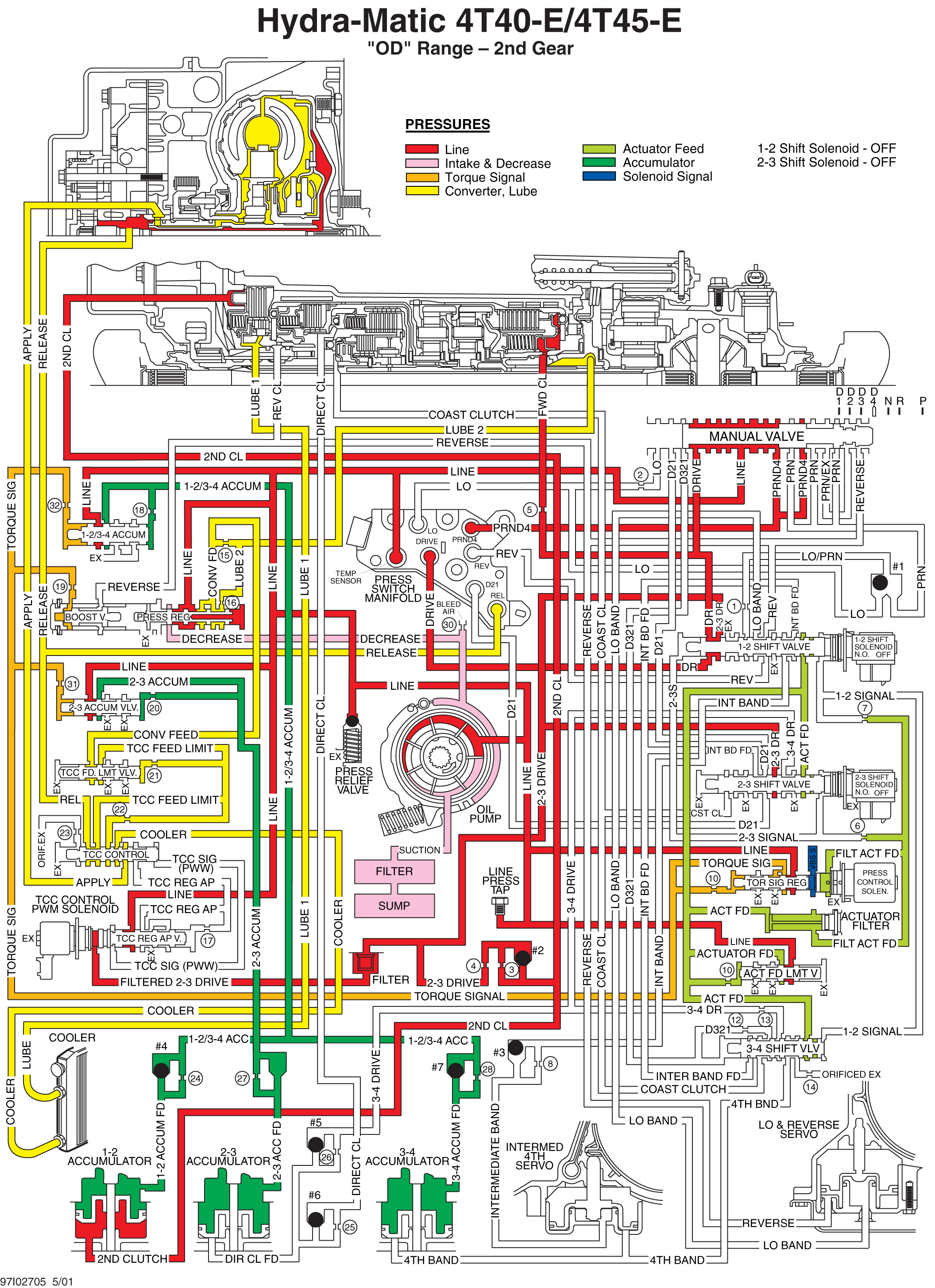

Fig 5: "OD" Range - 2nd Gear

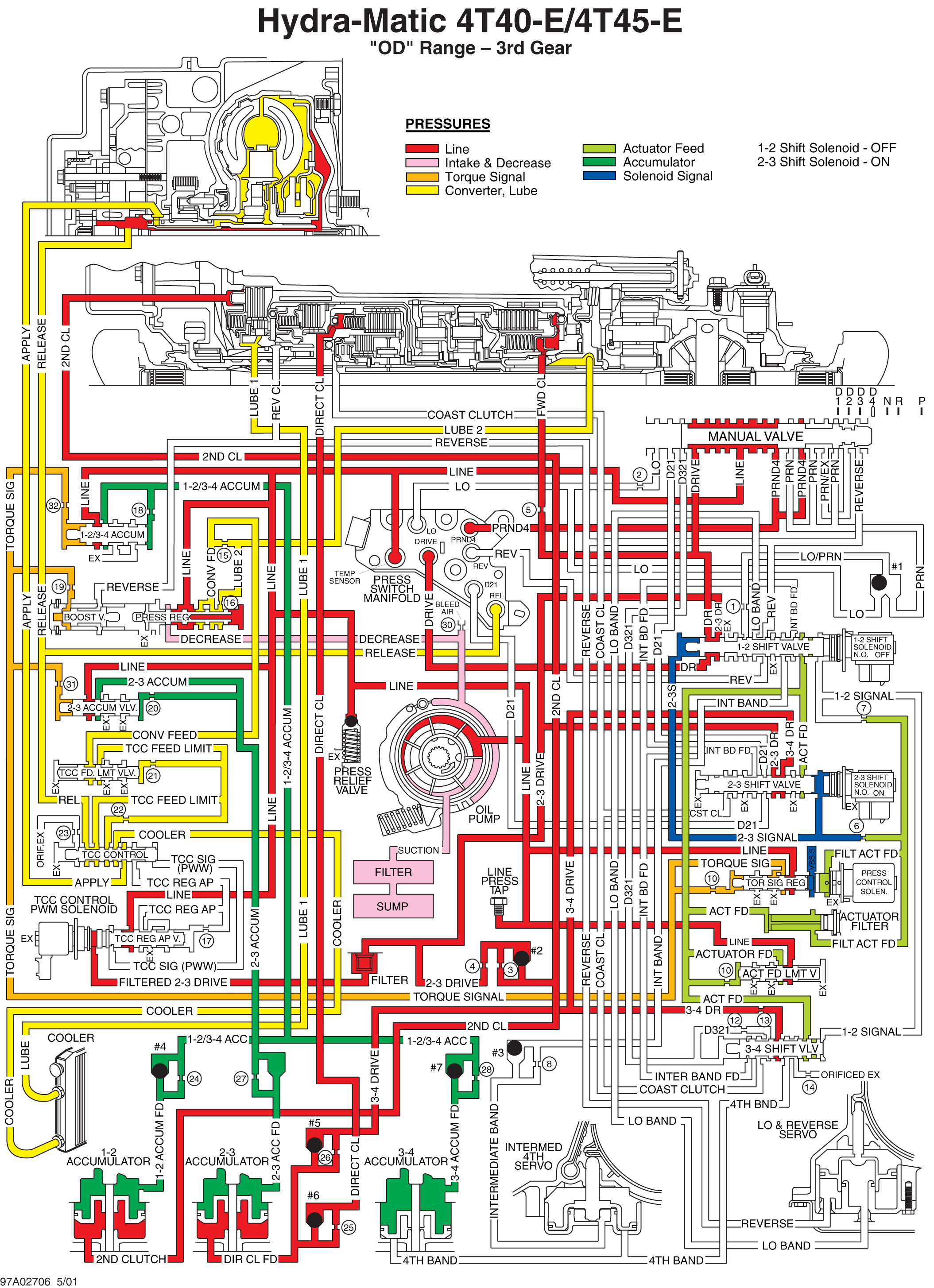

Fig 6: "OD" Range - 3rd Gear

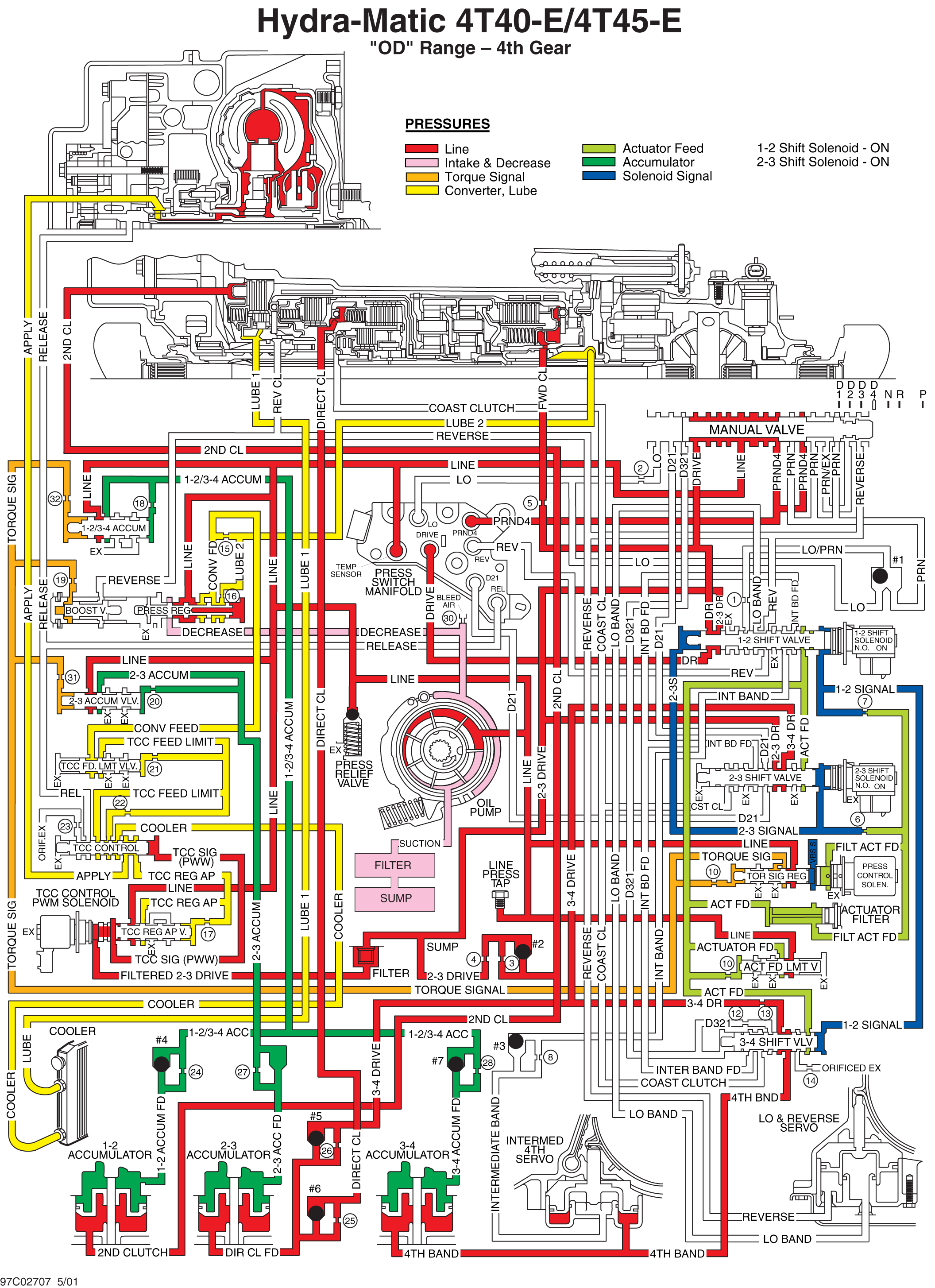

Fig 7: "OD" Range - 4th Gear

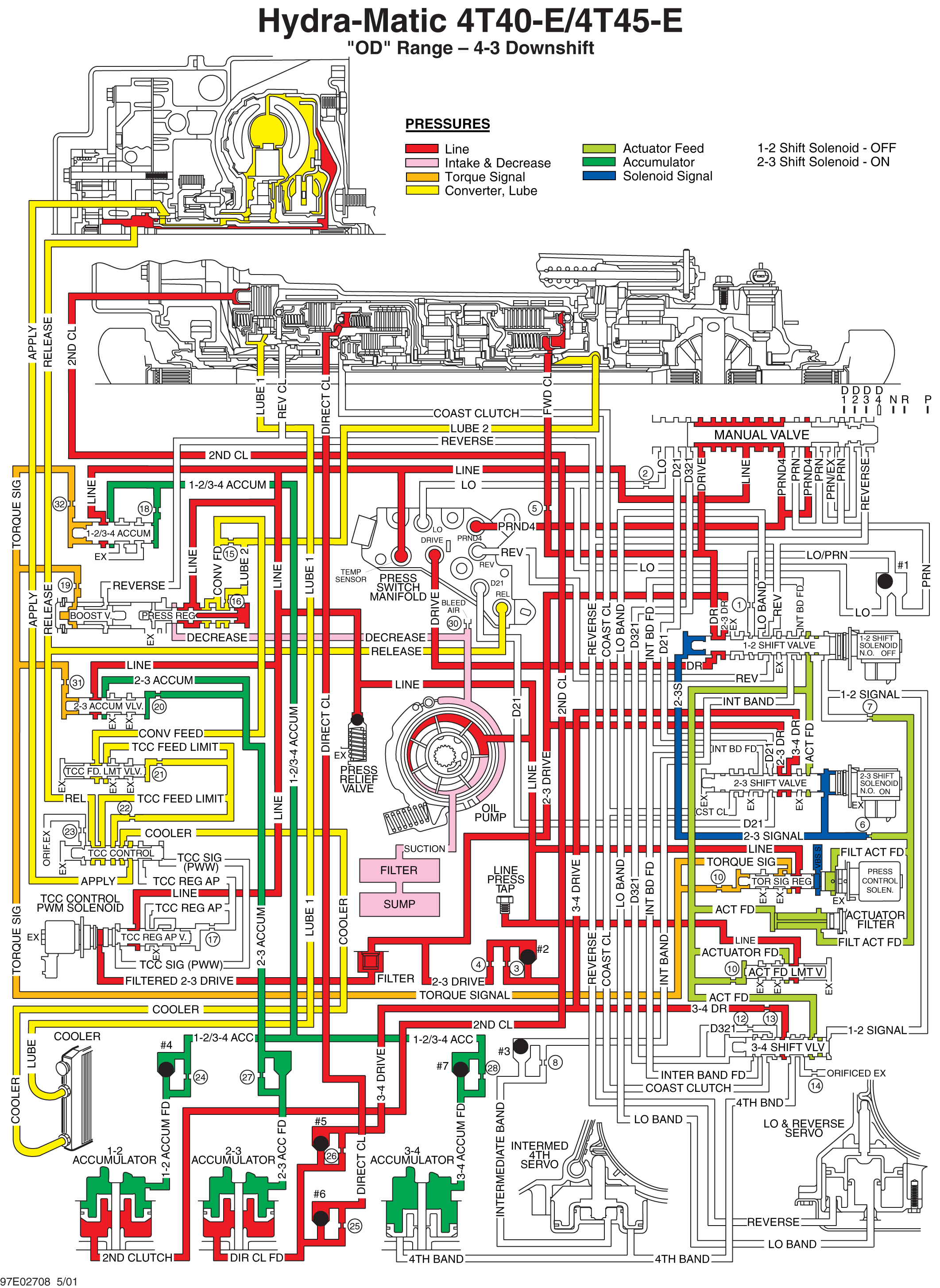

Fig 8: "OD" Range - 4-3 Downshift

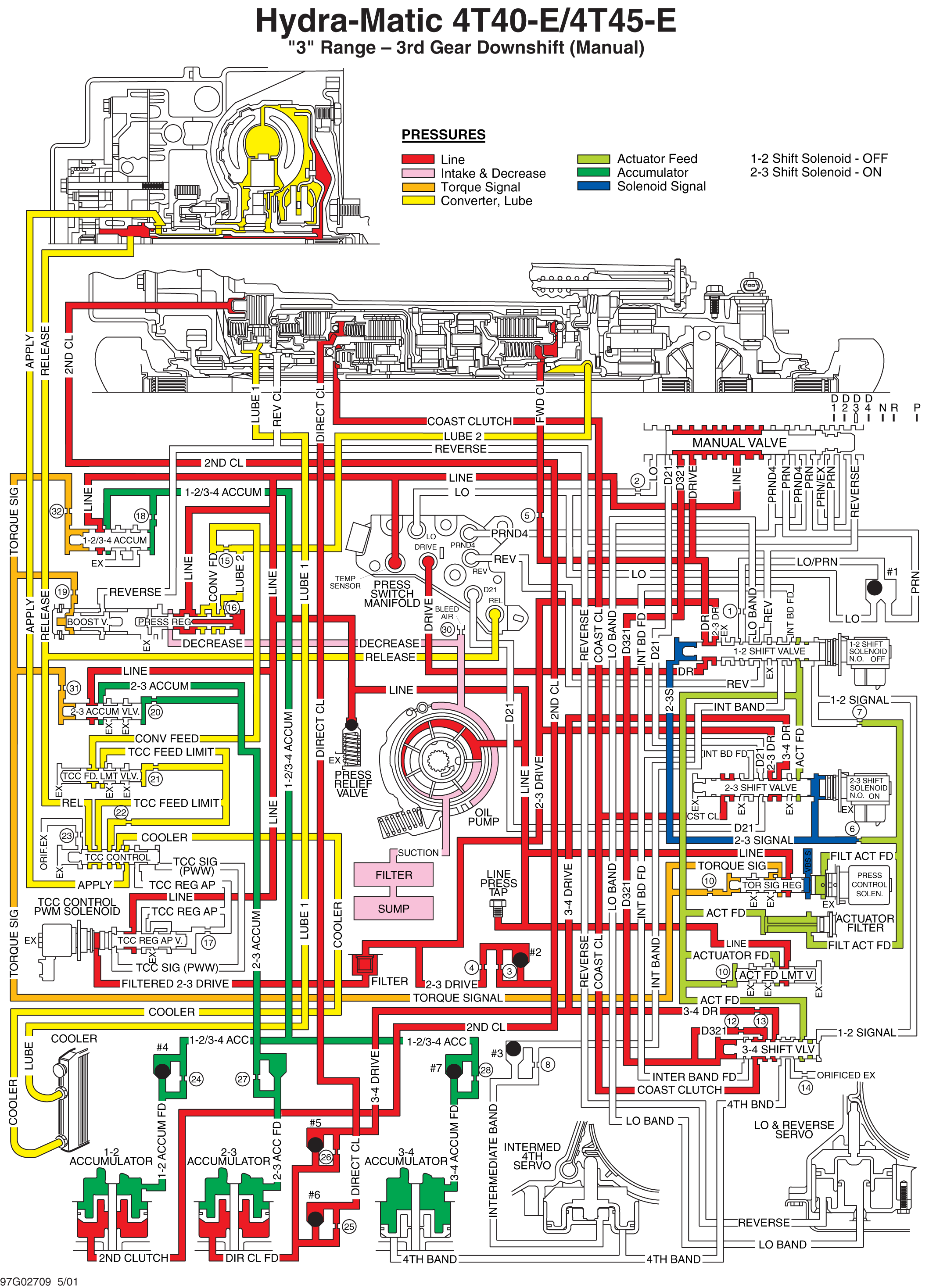

Fig 9: "3" Range - Manual 3rd Gear Downshift (Manual)

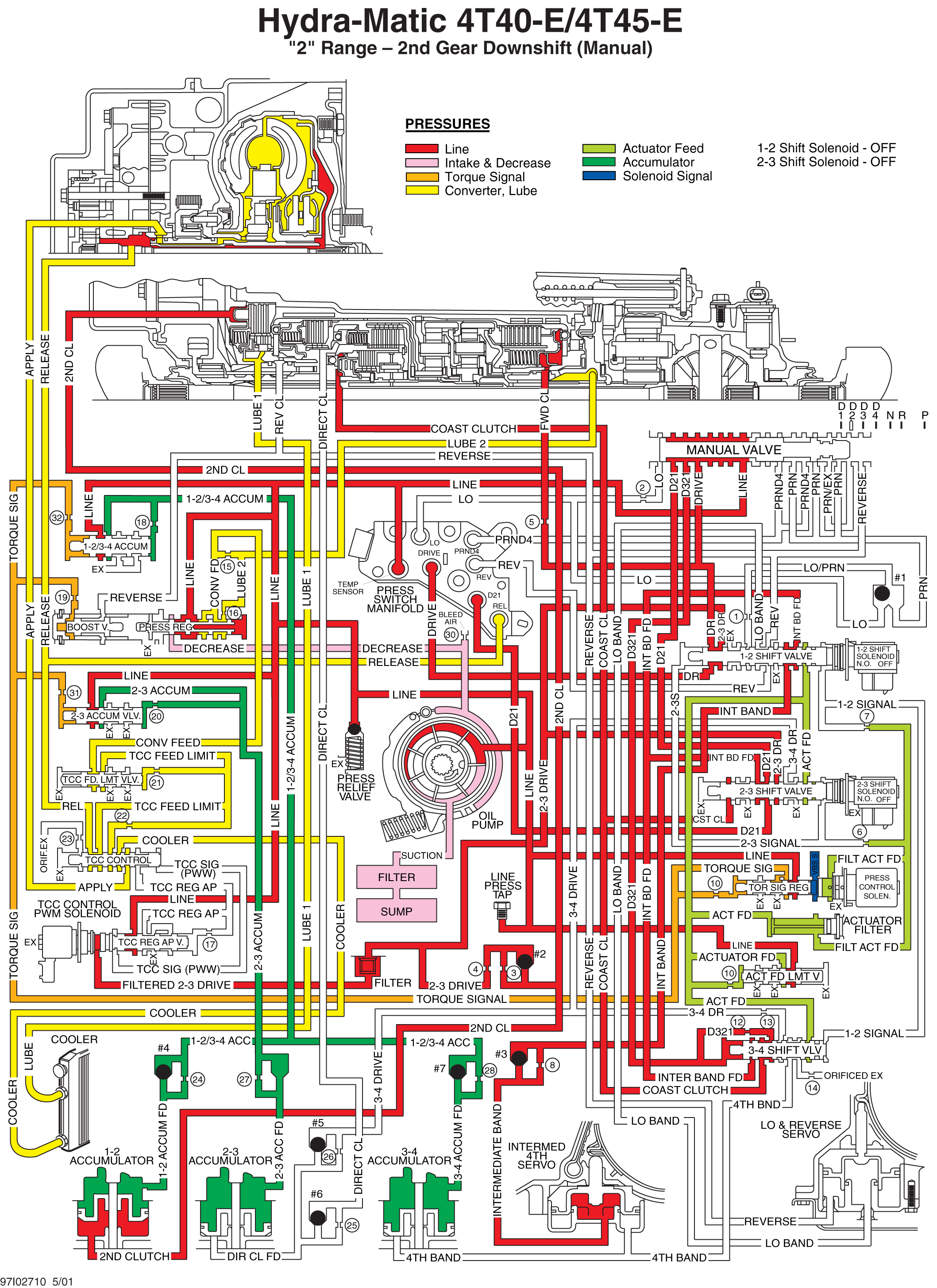

Fig 10: "2" Range - Manual 2nd Gear Downshift (Manual)

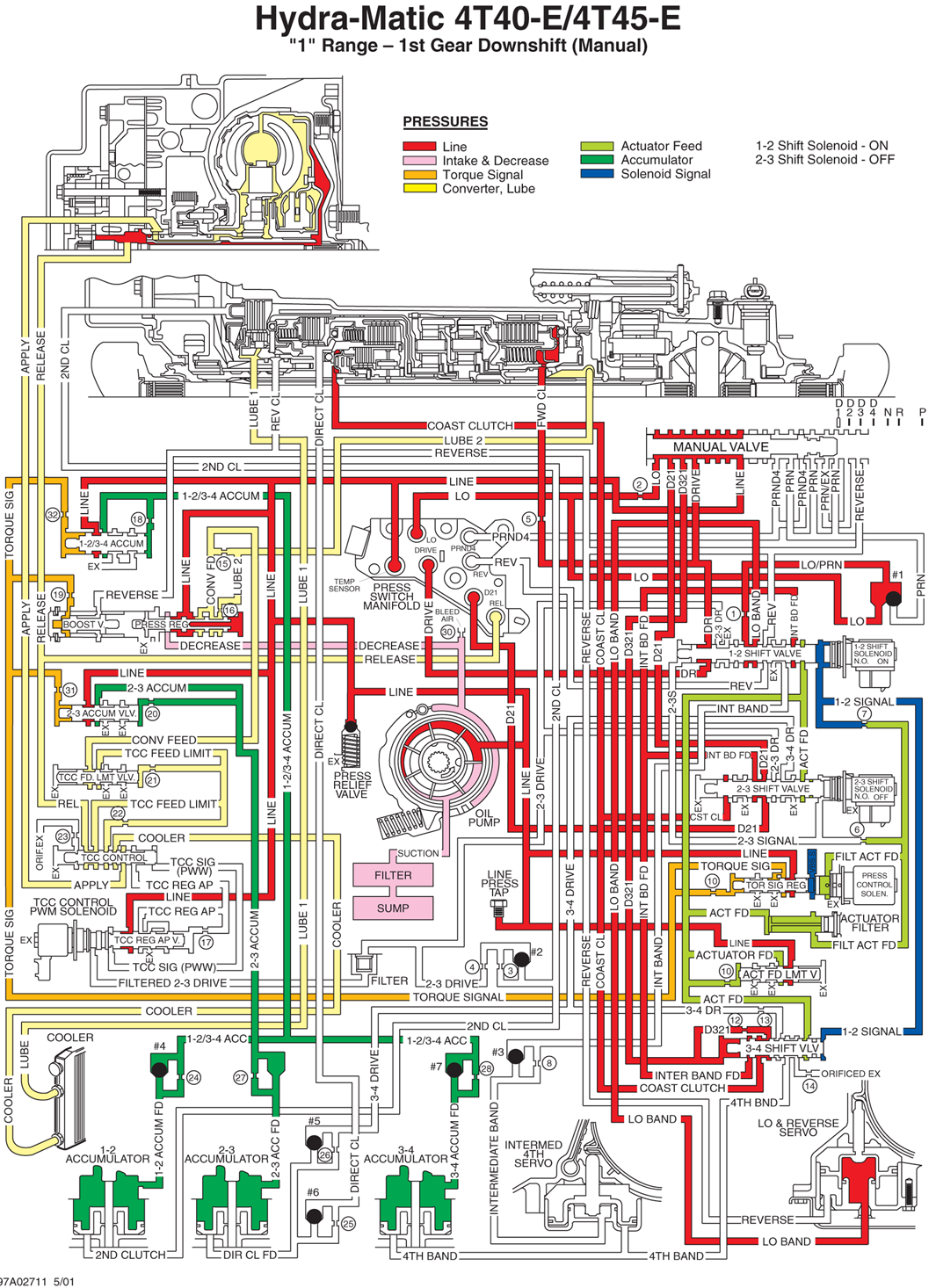

Fig 11: "1" Range - Manual 1st Gear Downshift (Manual)
