Instrument Cluster: Installation

  1. Connect electrical connector.

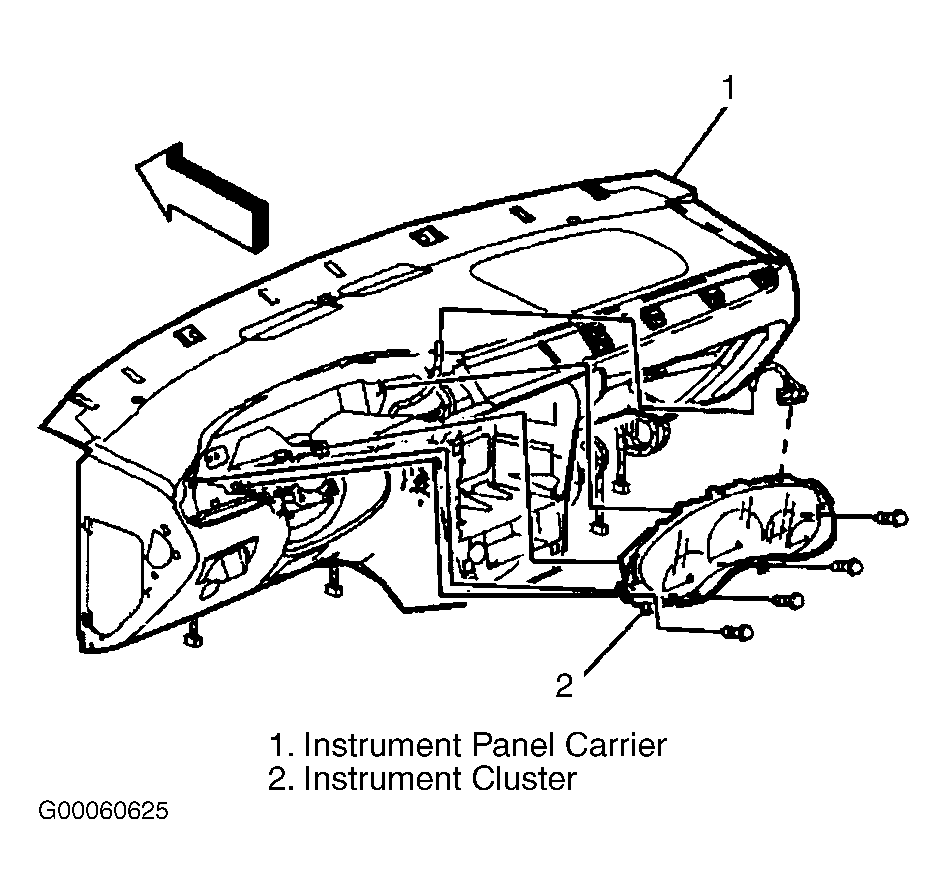

  2. Install instrument cluster (2) to instrument panel carrier (1). See Figure .
  3. Install instrument cluster bolts. Tighten bolts to 2 N.m (18 lb in).
  4. Install cluster trim plate.
