Torque Specifications
WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Camshaft Sprocket Bolt |
103 (140) |
| Connecting Rod Bearing Bolt |
| First Pass |
18 (25) |
| Final Pass |
Additional 100 Degrees |
| Coolant Drain Plug |
14 (19) |
| Coolant Temperature Sensor |
17 (23) |
| Crankshaft Balancer Bolt |
76 (103) |
| Crankshaft Oil Deflector Nut |
18 (25) |
| Cylinder Head Bolt (NEW Bolts) |
| First Pass |
|
| Final Pass |
|
| Drive Belt Idler Pulley Bolt |
37 (50) |
| Drive Belt Tensioner Bolt |
37 (50) |
| EGR Valve Adapter Pipe-to-Exhaust Manifold Nut |
18 (25) |
| EGR Valve to EGR Valve Pipe Bolt |
22 (30) |
| Engine Flywheel Bolt |
52 (71) |
| Engine Front Cover Bolt |
| Large |
41 (55) |
| Small |
20 (27) |
| Engine Mount Bracket Bolt |
43 (58) |
| Engine Mount Lower Nut |
32 (43) |
| Engine Mount Strut and Lift Bracket Bolt (Engine Left Rear) |
52 (70) |
| Engine Mount Strut Bolt/Nut |
35 (48) |
| Engine Mount Strut Bracket Bolt (Upper Radiator Support) |
21 (28) |
| Engine Mount Strut Bracket Bolt (Vehicle Right Side) |
37 (50) |
| Engine Mount Upper Nut |
35 (47) |
| Engine Oil Pressure Indicator Switch |
12 (16) |
| Fuel Line Bracket Bolt/Stud |
15 (20) |
| Knock Sensor |
14 (19) |
| MAP Sensor Bracket Bolt |
18 (25) |
| Oil Filter Bypass Hole Plug |
14 (19) |
| Oil Filter Fitting |
29 (39) |
| Oil Level Indicator Tube Bolt |
18 (25) |
| Oil Pan Bolt |
18 (25) |
| Oil Pan Drain Bolt |
37 (50) |
| Oil Pump Drive Clamp Bolt |
27 (36) |
| Oil Pump Mounting Bolt |
30 (41) |
| Timing Chain Dampener Bolt |
15 (21) |
| Transmission to Engine Bolts/Stud |
55 (75) |
| Upper Intake Manifold Bolt/Stud |
18 (25) |
| Water Outlet Bolt |
18 (25) |
| Water Pump Pulley Bolt |
18 (25) |
| INCH Lbs. (N.m) |
| Camshaft Position Sensor Bolt |
89 (10) |
| Camshaft Thrust Plate Bolt |
89 (10) |
| Crankshaft Position Sensor Bolt (Front Cover) |
89 (10) |
| Crankshaft Position Sensor Shield Bolt |
98 (11) |
| Drive Belt Shield Bolt |
89 (10) |
| Engine Wiring Harness Bracket Bolt |
115 (13) |
| Fuel Pipe Clip Bolt |
71 (8) |
| Intake Manifold Coolant Pipe Bolt |
89 (10) |

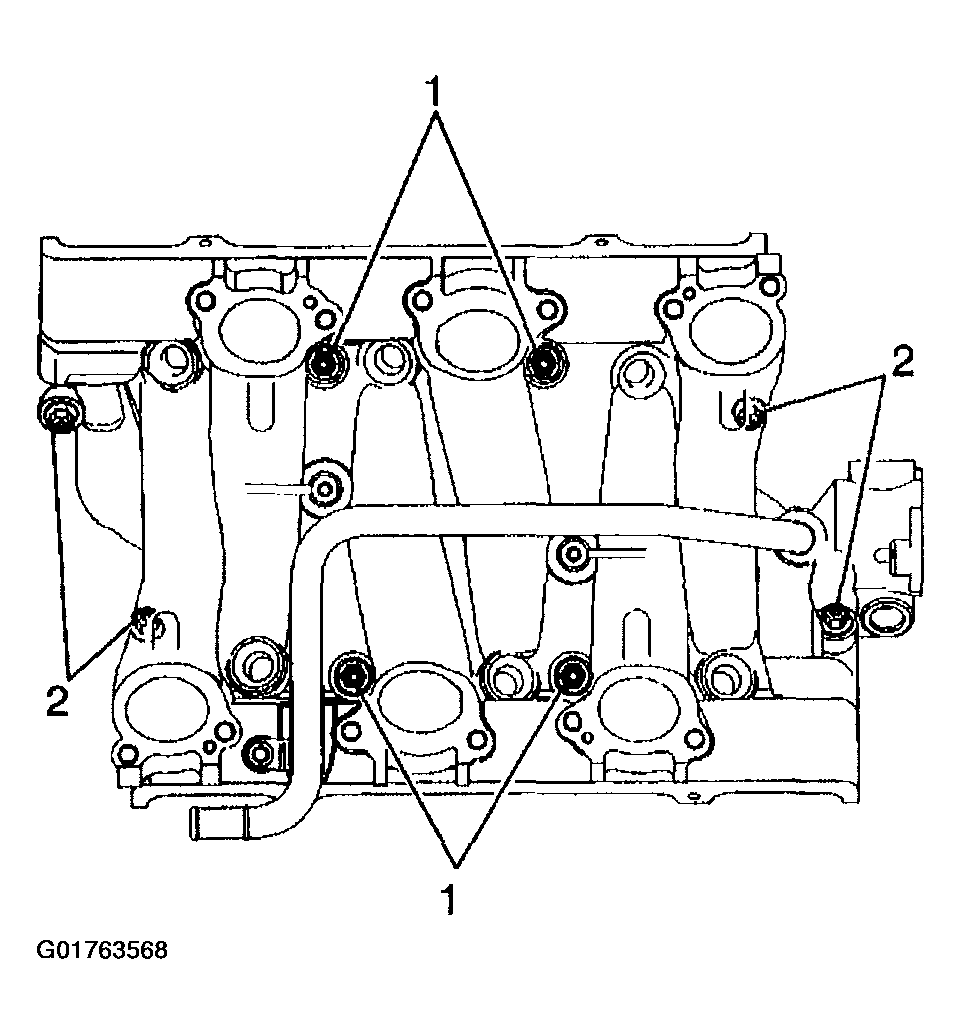

| Lower Intake Manifold Bolt |
| MAP Sensor Bolt |
44 (5) |
| Oil Level Sensor Bolt |
89 (10) |
| Valve Lifter Guide Bolt |
89 (10) |
| Valve Rocker Arm Bolt |
| First Pass |
124 (14) |
| Final Pass |
Additional 30 Degrees |
| Valve Rocker Arm Cover Bolt |
89 (10) |
| Water Pump Bolt |
89 (10) |
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
