Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine oil level sensor to the oil pan.
  2. Install the engine oil level sensor bolt.

    Tighten:

    Tighten the bolt to 10 N.m (89 in lbs)

  3. Connect the engine oil level sensor electrical connector.

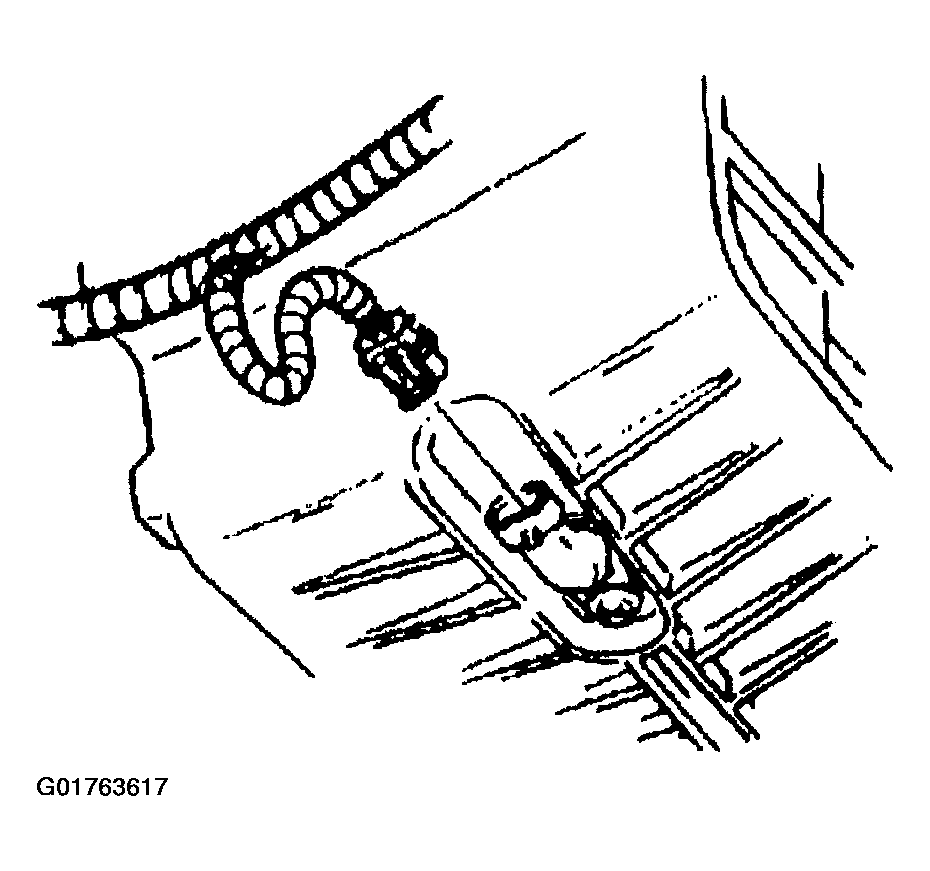

    Fig 1: Engine Oil Level Sensor Electrical Connector
    G01763617Courtesy of GENERAL MOTORS CORP.
  4. Install the engine oil drain plug.

    Tighten:

    Tighten the engine oil drain plug to 25 N.m (18 ft lbs)

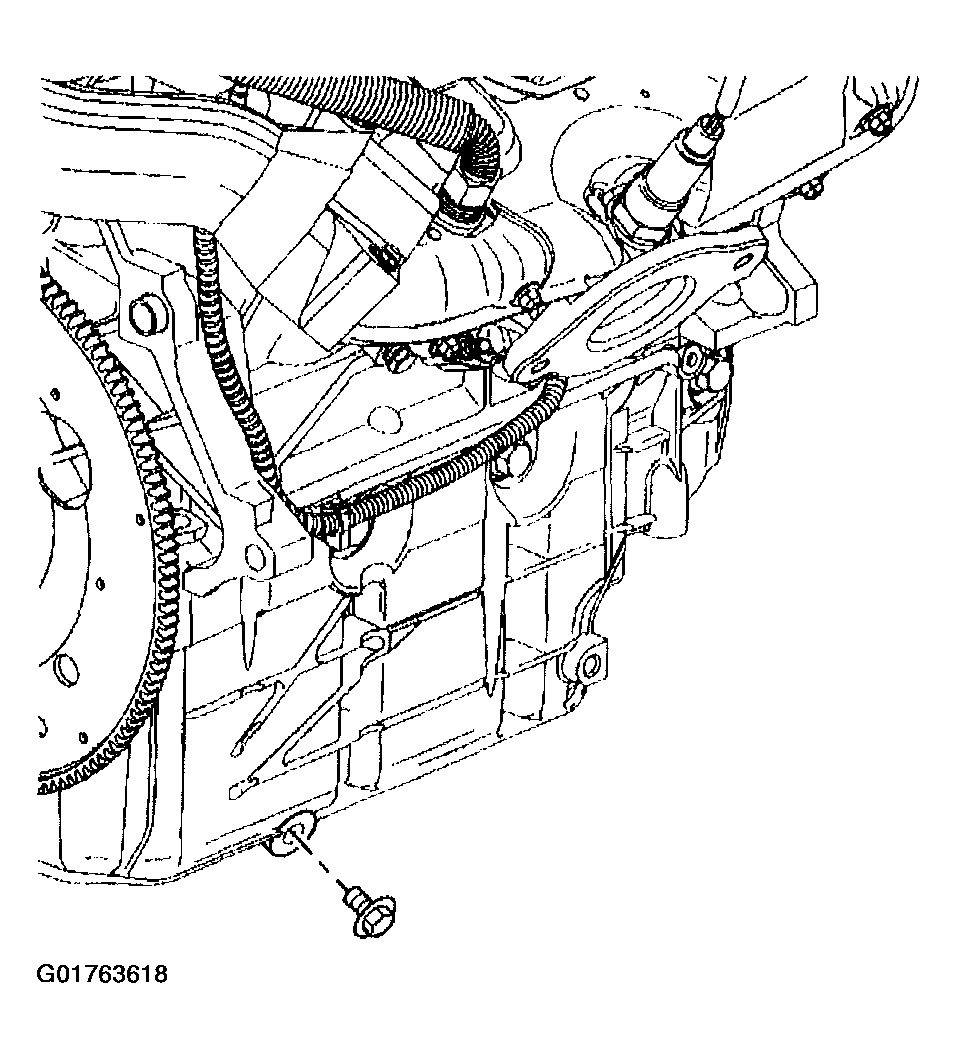

    Fig 2: Engine Oil Drain Plug
    G01763618Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
  6. Fill the crankcase with engine oil. Refer to Engine Oil and Oil Filter Replacement .
