Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel and the retainer.
  2. Install the engine flywheel bolts. Use the J 37096 to prevent flywheel rotation.

    Tighten:

    Tighten the bolts to 71 N.m (52 ft lbs)

  3. Install the automatic transaxle. Refer to TRANSMISSION REPLACEMENT in AUTOMATIC TRANSAXLE REMOVAL & INSTALLATION .

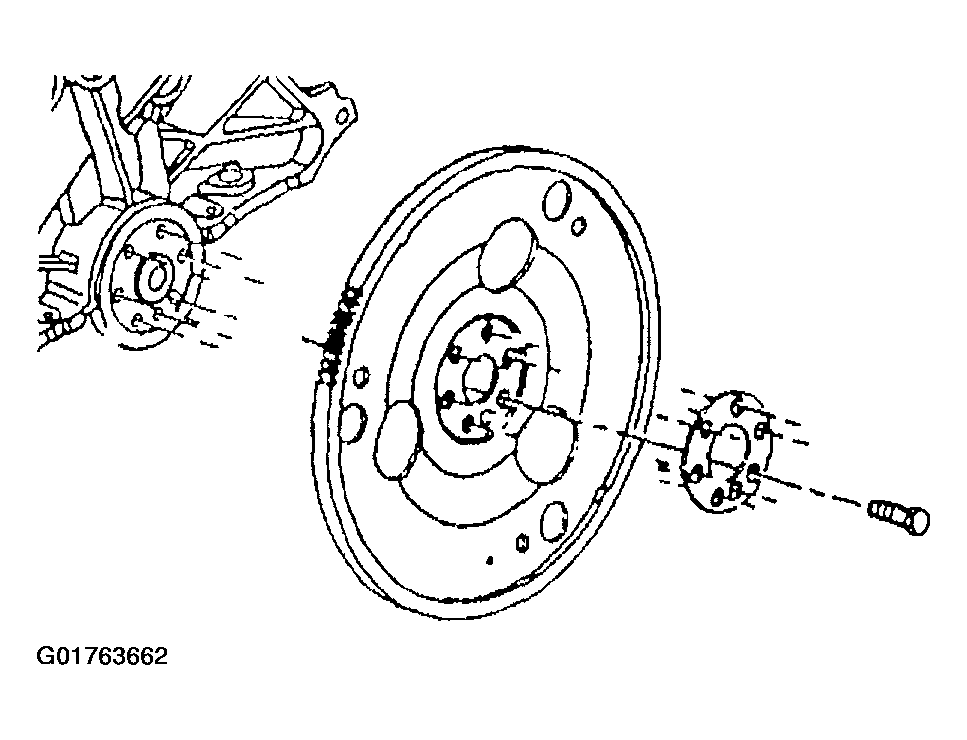

    Fig 1: Engine Flywheel
    G01763662Courtesy of GENERAL MOTORS CORP.
