SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|
| A/C Refrigerant Pressure Sensor | On left side of engine compartment, on accumulator. |
| Ambient Air Temperature Sensor | Behind front fascia, mounted to radiator air baffle. |
| Ambient Light Sensor | On top center of dash. |
| Automatic Transmission Fluid Temperature (TFT) Sensor | Inside transaxle. |
| Automatic Transmission Input Shaft Speed (ISS) Sensor | Inside transaxle. |
| Brake Fluid Pressure Sensor | On brake pressure modulator valve. |
| Camshaft Position (CMP) Sensor | At right front corner of engine, on cam carrier. See Figure . |
| Crankshaft Position (CKP) Sensor | Left side of engine, near base of engine oil level indicator. See Figure . |
| Engine Coolant Temperature (ECT) Sensor | Right rear of engine, below throttle body. See Figure . |
| Fuel Pump & Sender Assembly | In fuel tank. |
| Fuel Tank Pressure (FTP) Sensor | On top of fuel tank. |
| Heated Oxygen Sensor (HO2S) 1 | In right side exhaust manifold. See Figure . |
| Heated Oxygen Sensor (HO2S) 2 | In exhaust system, behind catalytic converter. |
| Inside Air Temperature Sensor | Behind dash, between radio & knee bolster. |
| Intake Air Temperature (IAT) Sensor | Left front of engine compartment, in air cleaner duct. |
| Knock Sensor (KS) | On lower right side of engine block. |
| Manifold Absolute Pressure (MAP) Sensor | Top rear of engine, near throttle body assembly. |

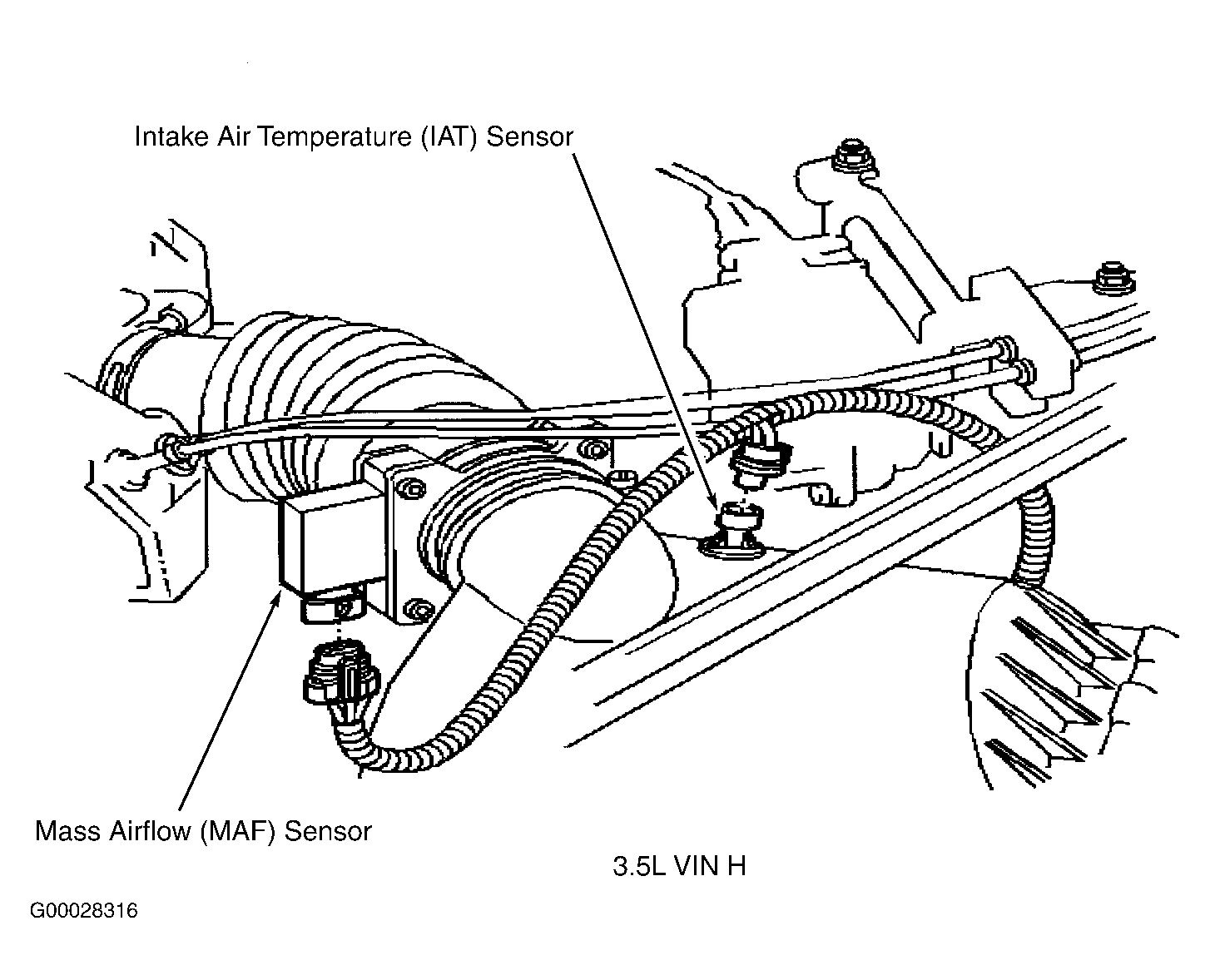

| Mass Airflow (MAF) Sensor | Left front side of engine compartment, on air cleaner duct. See Figure . |
| Passlock Sensor | Part of ignition switch. |
| Steering Angle Sensor | Near base of steering column. |
| Sun Load Sensor | On top right center of dash. |
| Throttle Position (TP) Sensor | On throttle body assembly. See Figure . |
| Vehicle Speed Sensor (VSS) | Lower right side of engine compartment, on transaxle. See Figure . |
| Wheel Speed Sensor (WSS) (Left Front) | On left front wheel hub. |
| Wheel Speed Sensor (WSS) (Left Rear) | On left rear wheel hub. |
| Wheel Speed Sensor (WSS) (Right Front) | On right front wheel hub. |
| Wheel Speed Sensor (WSS) (Right Rear) | On right rear wheel hub. |
| Yaw & Lateral Acceleration Sensor | In center console. |
