BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|
| A/C CLU Relay | On underhood fuse block. |
| Blower Motor Relay | Behind right side of dash, integral to blower motor resistor assembly. |
| COOL FAN 1 Relay | On underhood fuse block. |
| COOL FAN 2 Relay | On underhood fuse block. |
| COOL FAN 3 Relay | On underhood fuse block. |
| FOG LP Relay | On underhood fuse block. |
| F/PMP Relay | On underhood fuse block. |

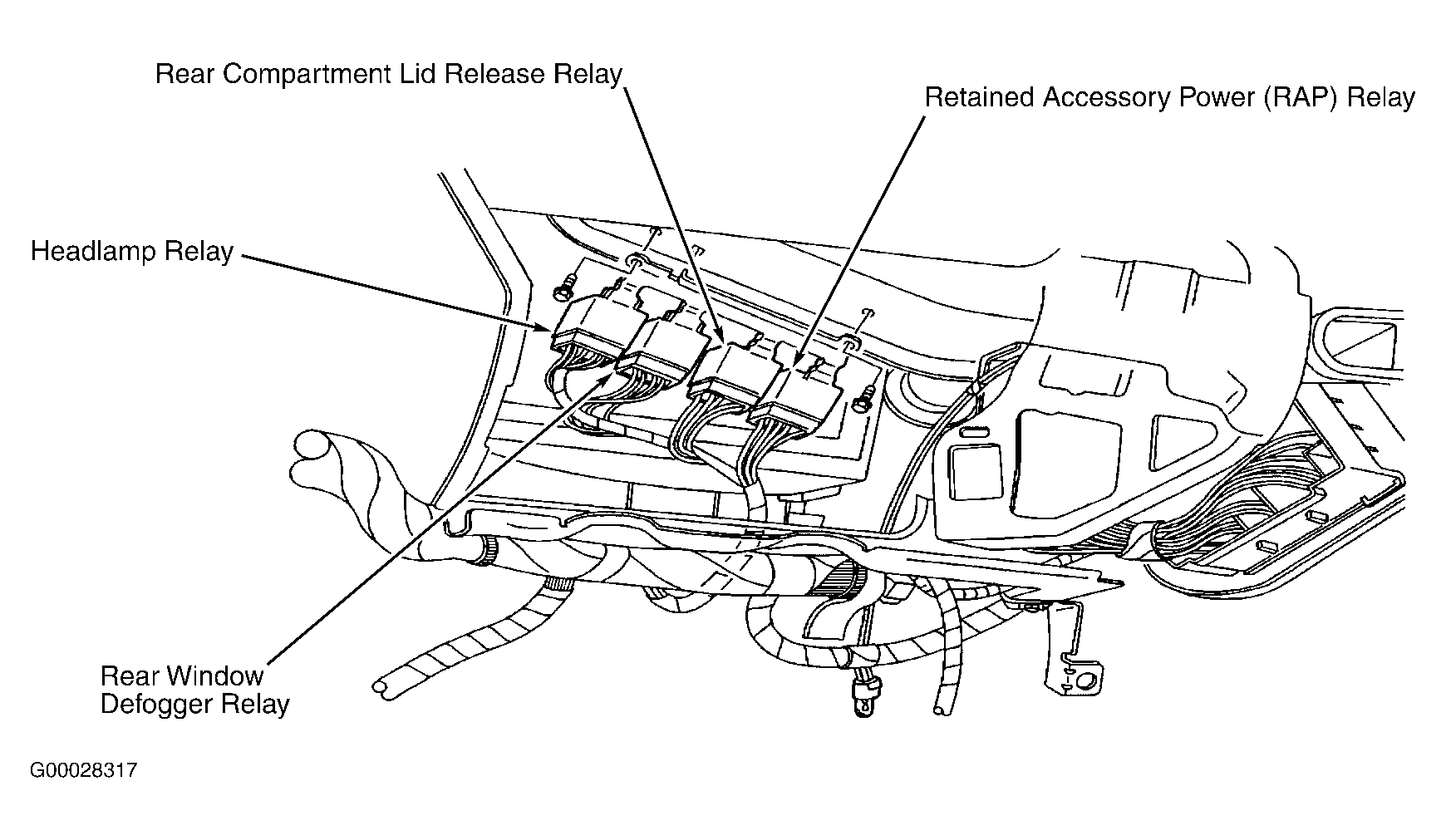

| Headlamp Relay | Behind glove box. See Figure . |
| HORN Relay | On underhood fuse block. |
| IGN MAIN Relay | On underhood fuse block. |
| Park Lamp Relay | Behind left end of dash. |
| Rear Compartment Lid Release Relay | Behind lower right side of dash. See Figure . |
| Rear Window Defogger Relay | Behind glove box. See Figure . |
| Retained Accessory Power (RAP) Relay | Behind glove box. See Figure . |
| SECONDARY AIR PUMP Relay | On underhood accessory junction block. |
| STARTER Relay | On underhood fuse block. |
