Powertrain Control Module
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue and 2001 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

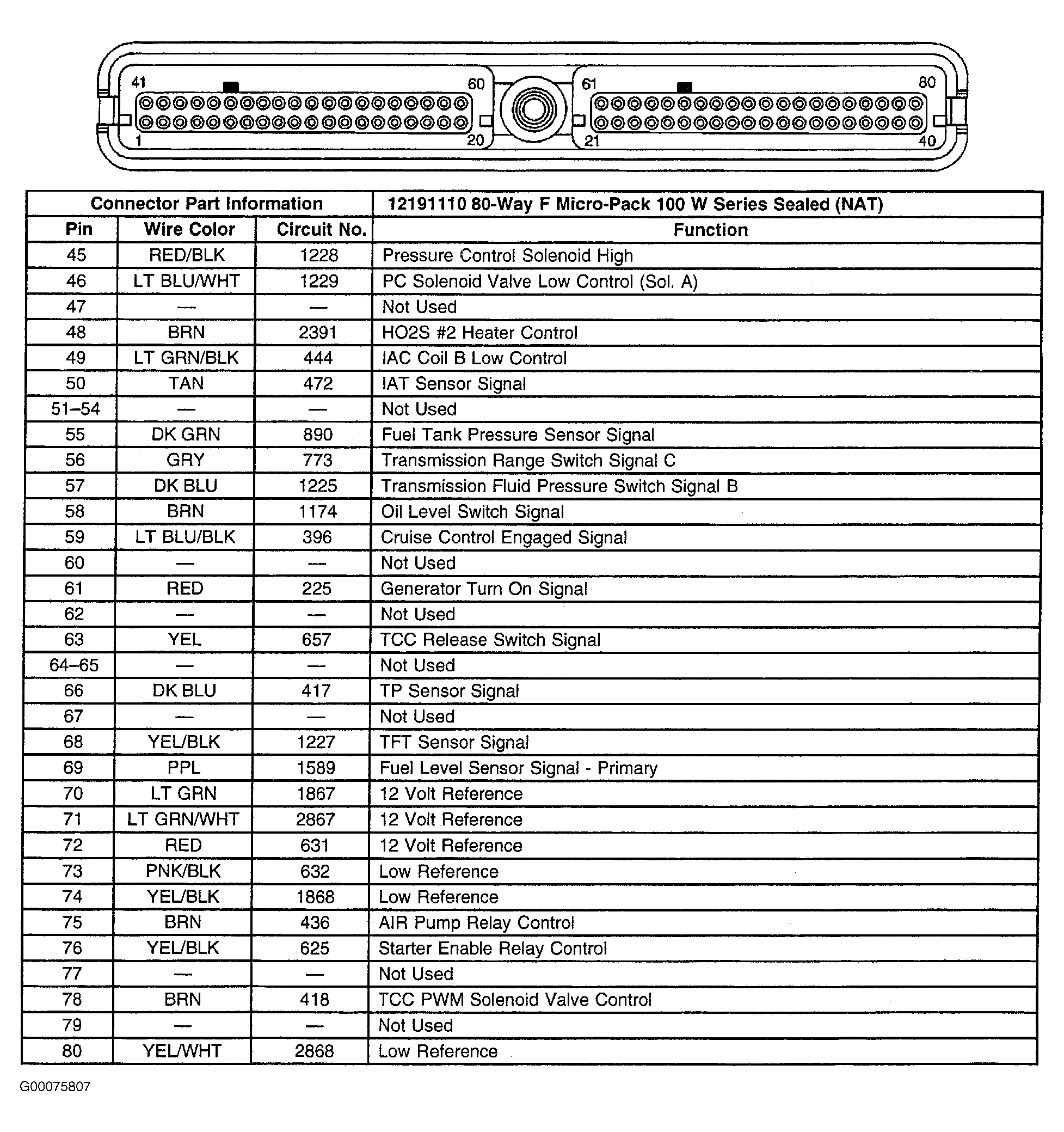

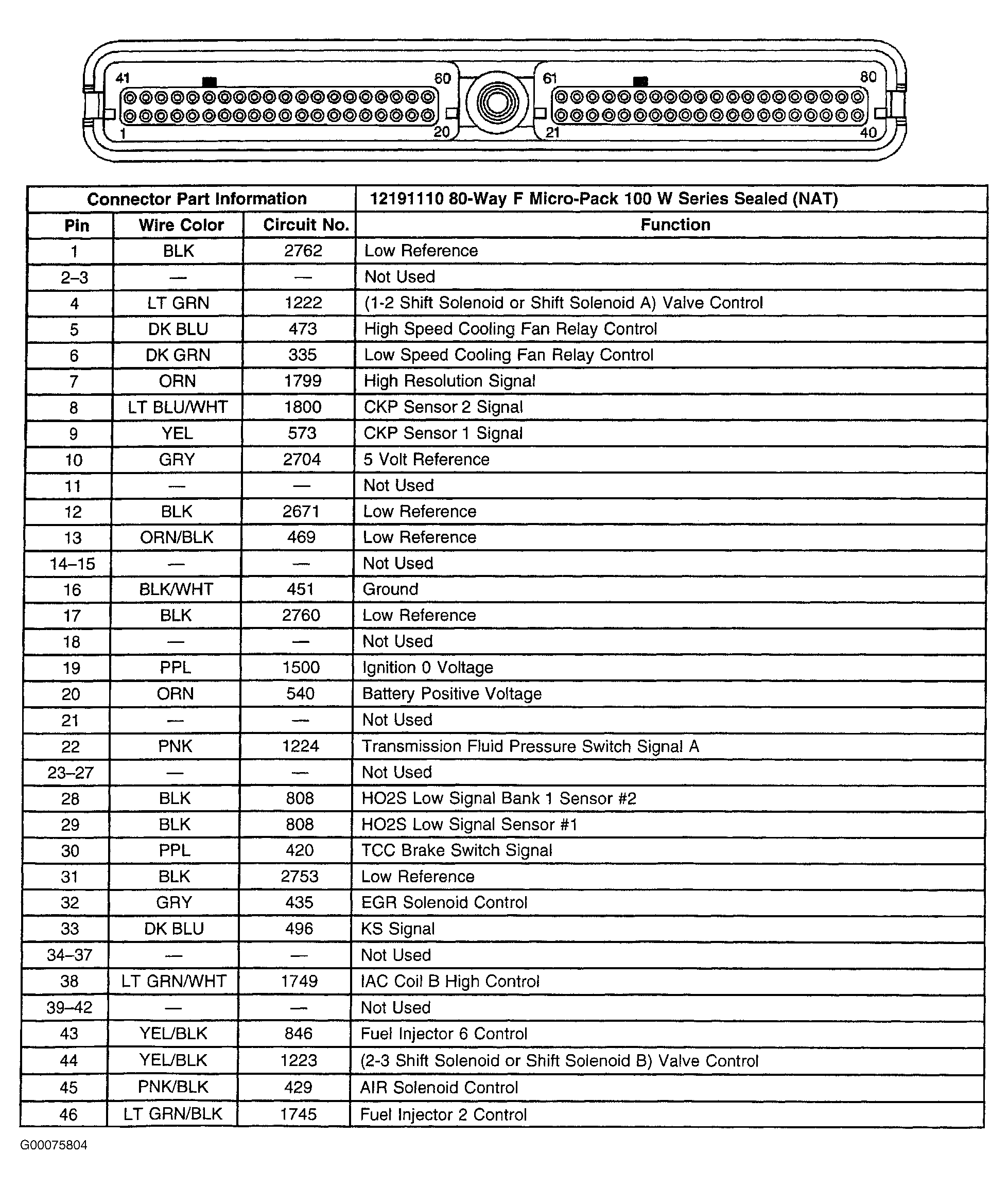

PCM controls ignition, fuel and emission devices related to engine and transaxle operation. PCM receives electronic signals from sensors and switches. Input signals enable PCM to determine when to operate various relays and solenoids related to engine and transaxle control. PCM utilizes 2 different colored 80-way connectors. See Figure -Figure .
POWERTRAIN CONTROL MODULE LOCATION
| Application | Location |
|---|---|
| Intrigue | Left Side Of Engine Compartment, In Air Cleaner |
