Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Disconnect all of the rear compartment lid electrical connectors.
  3. Disconnect the wiring harness retainers from the rear compartment lid.
  4. Disconnect the wiring harness retainers in the rear compartment.
  5. Remove the wiring harness from the vehicle.

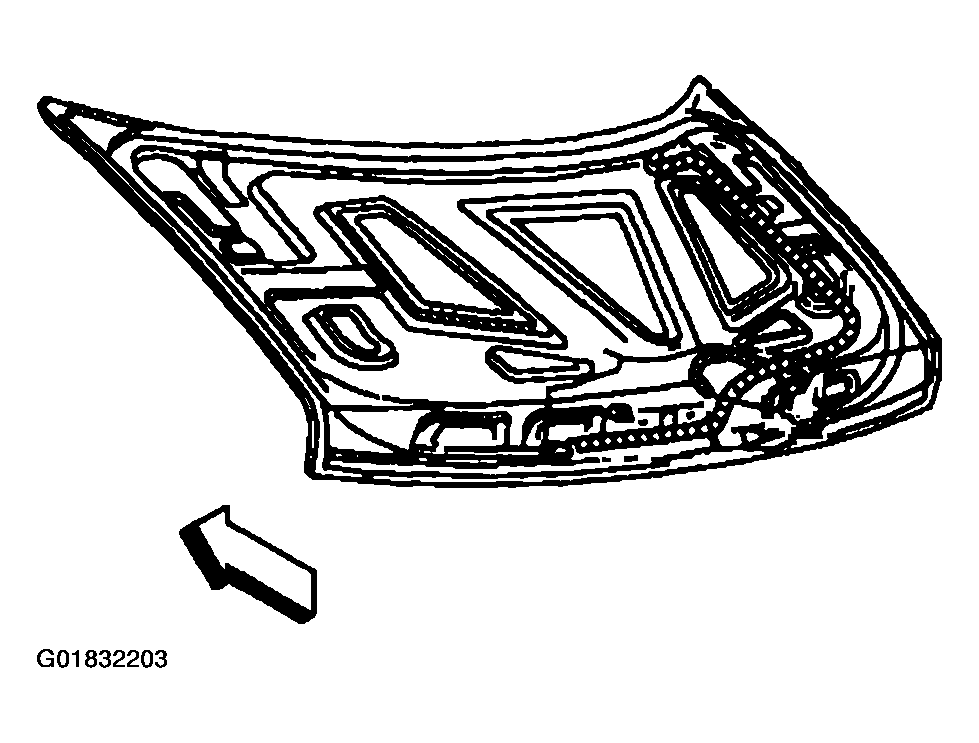

    Fig 1: Disconnecting All Rear Compartment Lid Electrical Connectors
    G01832203Courtesy of GENERAL MOTORS CORP.
