Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the wiring harness through the rear compartment lid.
  2. Connect the wiring harness connectors to the electrical connectors attached to the rear compartment lid.
  3. Connect the wiring harness retainers to the rear compartment lid.
  4. Connect the wiring harness retainers in the rear compartment.
  5. Close the rear compartment.

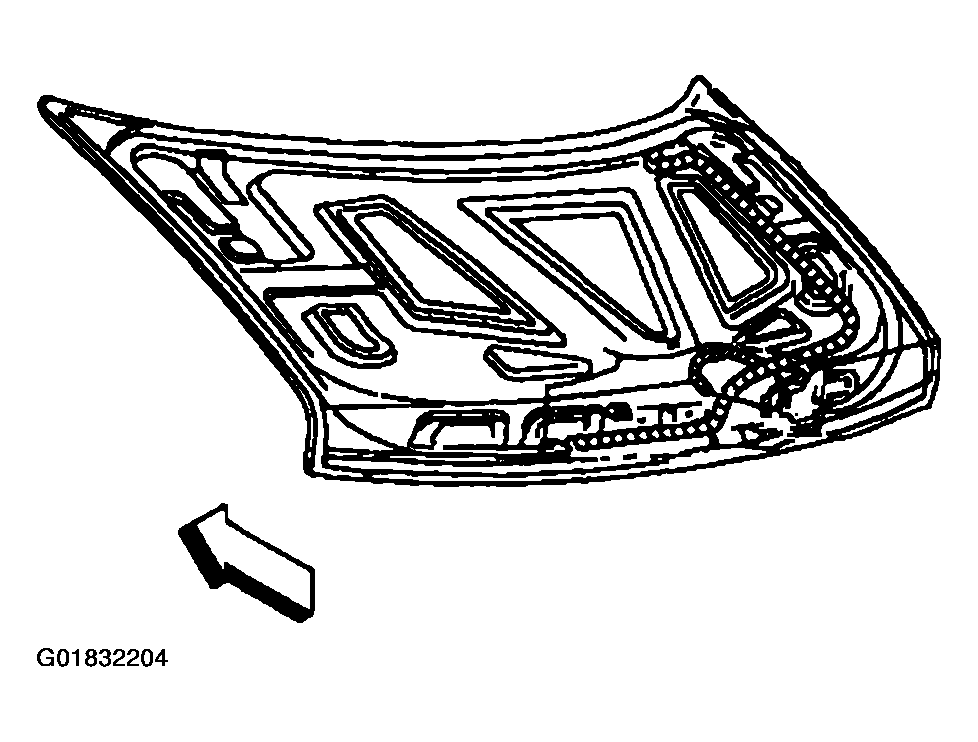

    Fig 1: Connecting All Rear Compartment Lid Electrical Connectors
    G01832204Courtesy of GENERAL MOTORS CORP.
