Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Grasp the rear compartment weatherstrip and pull up to remove the rear compartment weatherstrip from the pinch-weld flange.
  3. Remove the rear compartment weatherstrip from the rear compartment pinch-weld.

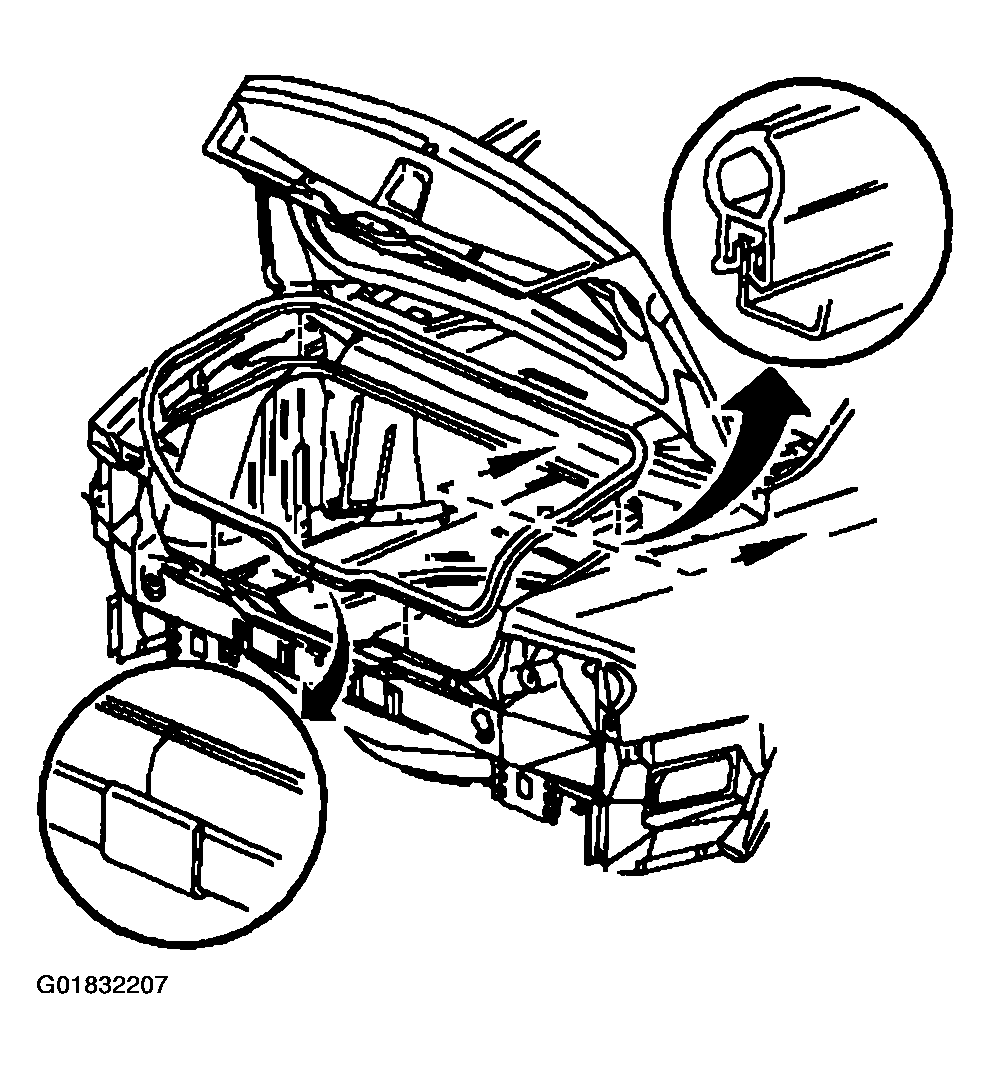

    Fig 1: Removing Rear Compartment Weatherstrip From Rear Compartment Pinch-Weld
    G01832207Courtesy of GENERAL MOTORS CORP.
