Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear compartment weatherstrip to the pinch-weld flange.
  2. Locate the color mark on the rear compartment weatherstrip to body centerline at the front of the rear compartment lid opening.
  3. Apply pressure to rear compartment weatherstrip onto the rear compartment pinch-weld flange, starting at the top center of the lid opening and working toward bottom center.

    Use a rubber mallet to ensure the rear compartment weatherstrip is fully seated to the pinch-weld flange.

  4. Close the rear compartment.

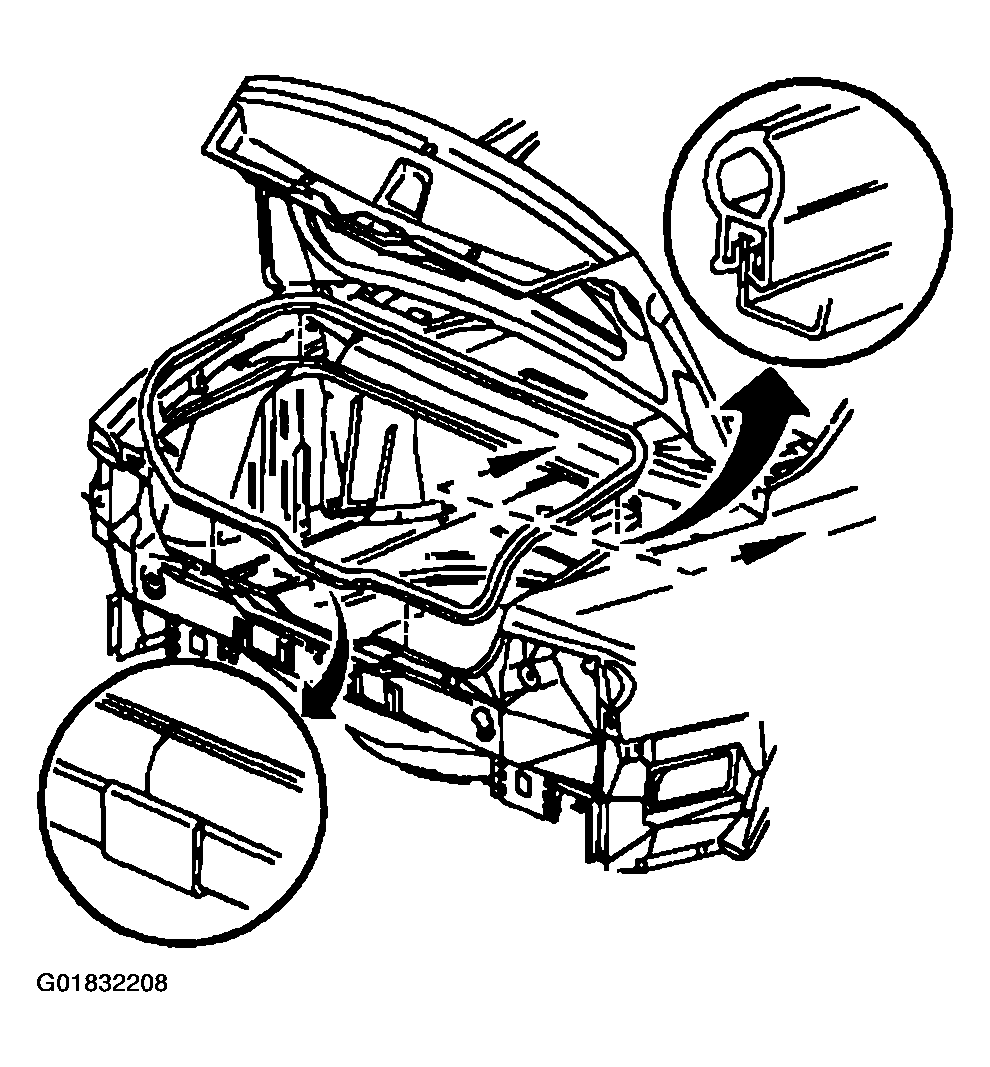

    Fig 1: Installing Rear Compartment Weatherstrip To Rear Compartment Pinch-Weld
    G01832208Courtesy of GENERAL MOTORS CORP.
