Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear compartment lid strut to the rear compartment lid hinge.
  2. Apply pressure to the rear compartment lid strut lower ball stud until fully seated.
  3. Apply pressure to the rear compartment lid strut upper ball stud until fully seated.
  4. Install the rear compartment lid strut upper and lower ball stud to rear compartment lid hinge locking clips.
  5. Remove the rear compartment lid support.
  6. Close the rear compartment.

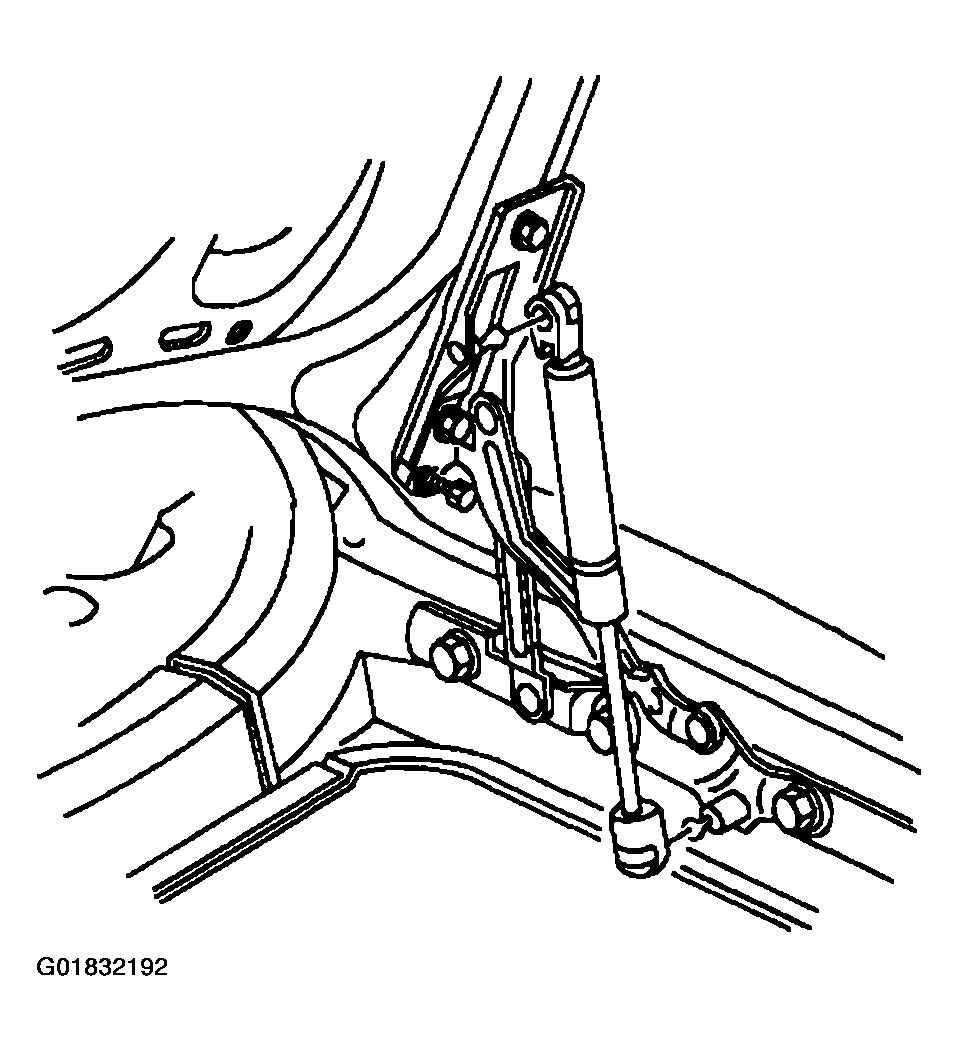

    Fig 1: Installing Rear Compartment Lid Strut Upper And Lower Ball Stud To Rear Compartment Lid Hinge Locking Clips
    G01832192Courtesy of GENERAL MOTORS CORP.
