Rear Wheelhouse Liner Panel Replacement: Notes

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the rear tires and wheels. Refer toTIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the rear bumper fascia to rear wheelhouse liner screws.
  4. Remove the rocker panel to rear wheelhouse liner screws.
  5. Remove the rear wheelhouse liner to rear wheelhouse palnuts.
  6. Remove the rear wheelhouse liner from the vehicle.

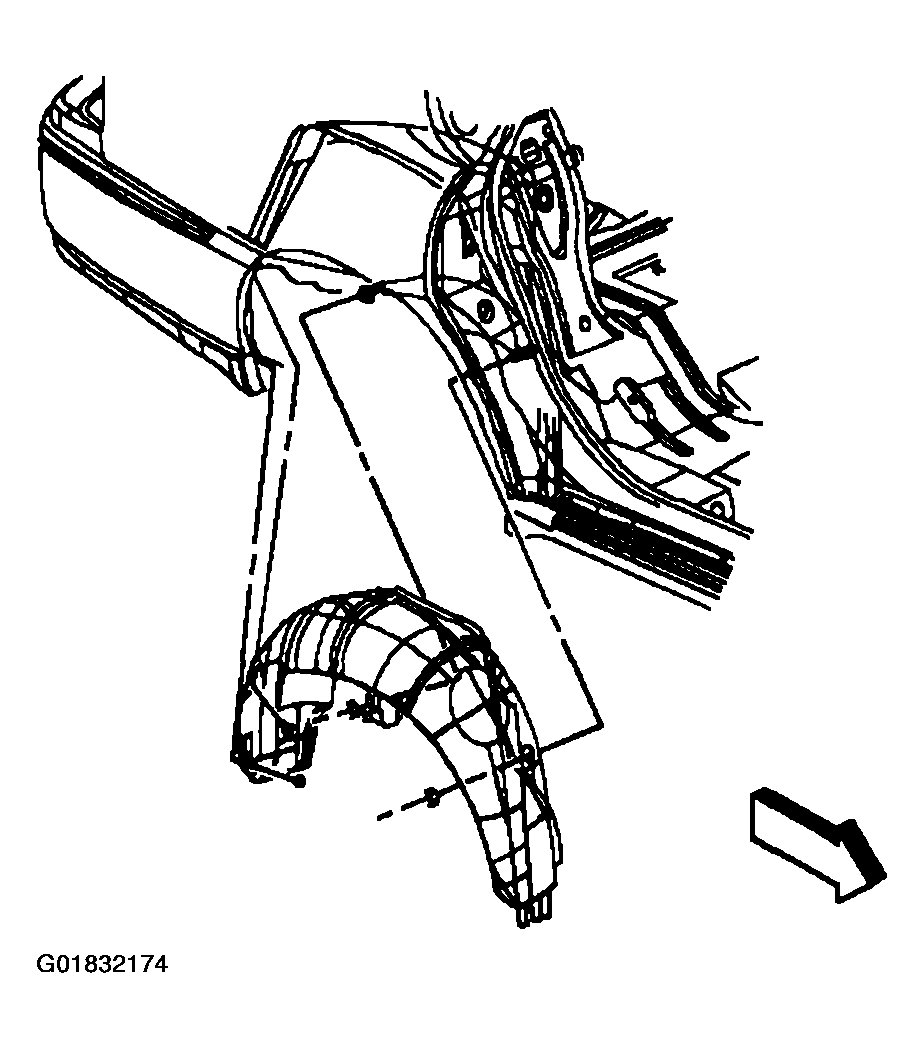

    Fig 1: Removing Rear Wheelhouse Liner From Vehicle
    G01832174Courtesy of GENERAL MOTORS CORP.
