Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear wheelhouse liner to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear wheelhouse liner to rear wheelhouse palnuts.

    Tighten

    Tighten the rear wheelhouse liner to rear wheelhouse palnuts to 2 N.m (18 lb in).

  3. Install the rocker panel to rear wheelhouse liner screws.

    Tighten

    Tighten the rocker panel to rear wheelhouse liner screws to 2 N.m (18 lb in).

  4. Install the rear bumper fascia to rear wheelhouse liner screws.

    Tighten

    Tighten the rear bumper fascia to rear wheelhouse liner screws to 2 N.m (18 lb in).

  5. Install the rear tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

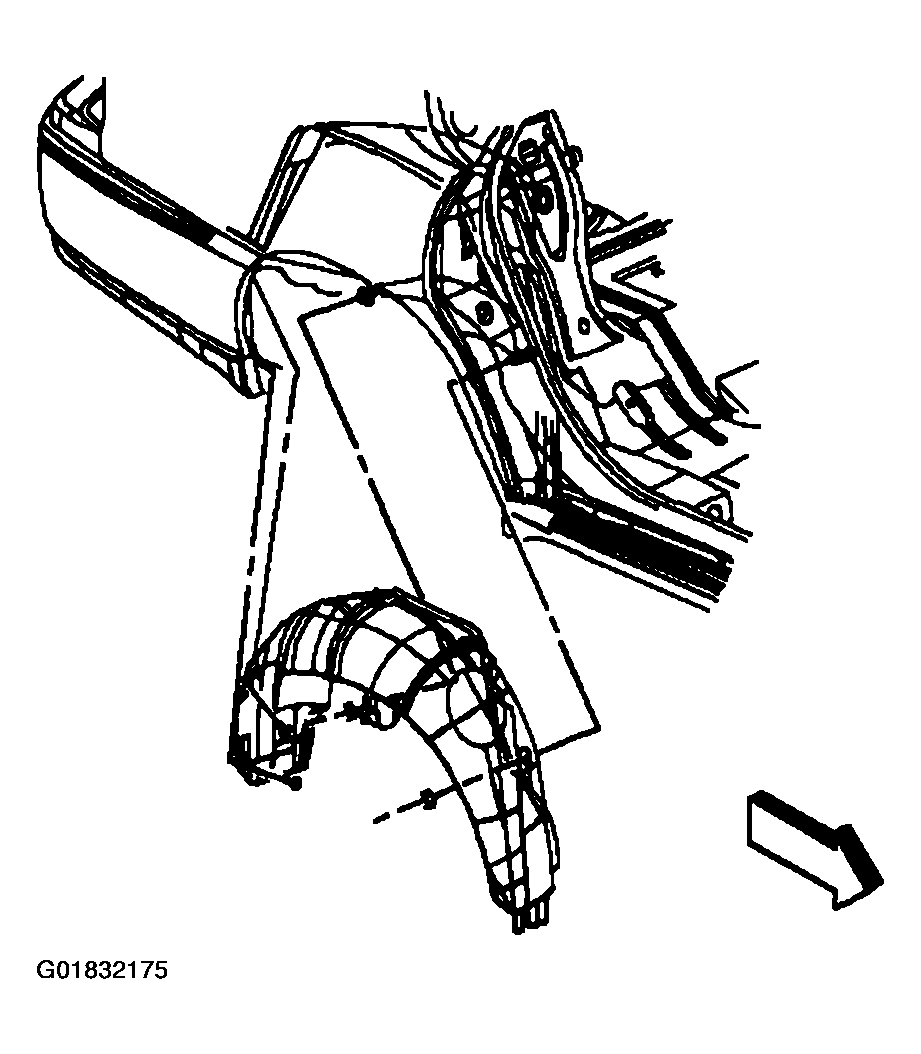

    Fig 1: Installing Rear Wheelhouse Liner To Vehicle
    G01832175Courtesy of GENERAL MOTORS CORP.
