Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP switch bank. Refer to IP MULTIFUNCTION SWITCH ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
  2. Use a small flat-bladed tool to release the retaining tabs of the fuel door/trunk lid switch.

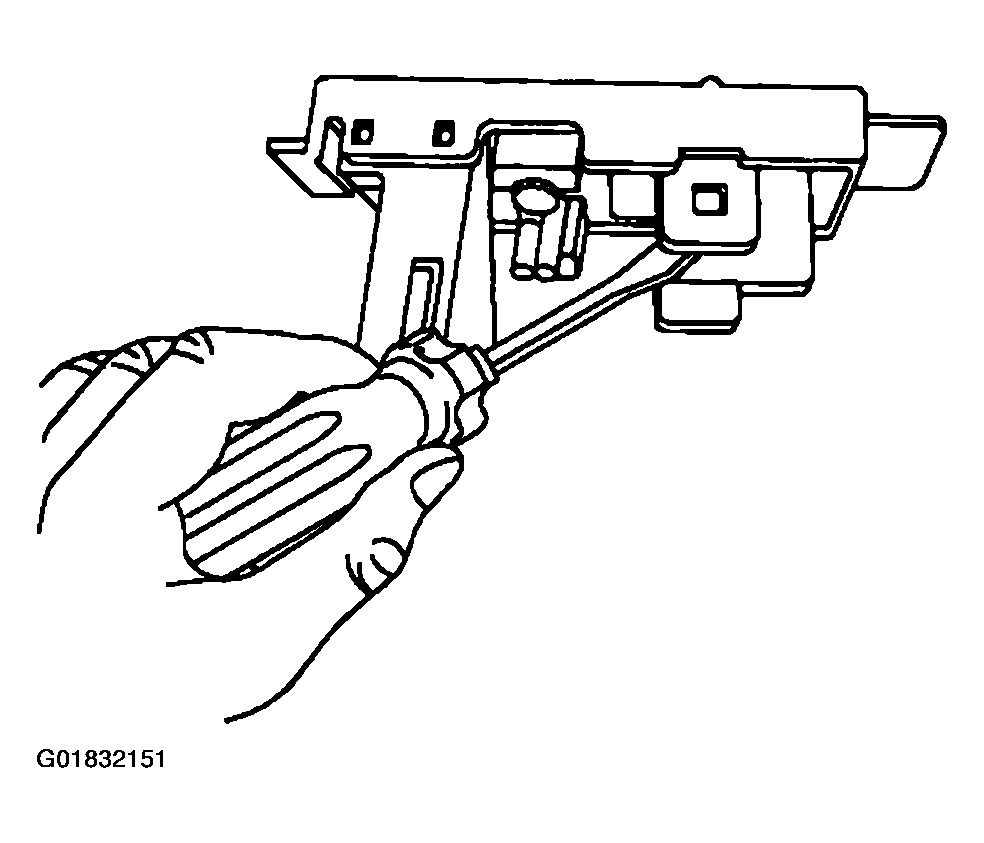

    Fig 1: Releasing Retaining Tabs Of Fuel Door/Trunk Lid Switch
    G01832151Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel door/trunk lid switch from the switch bank.

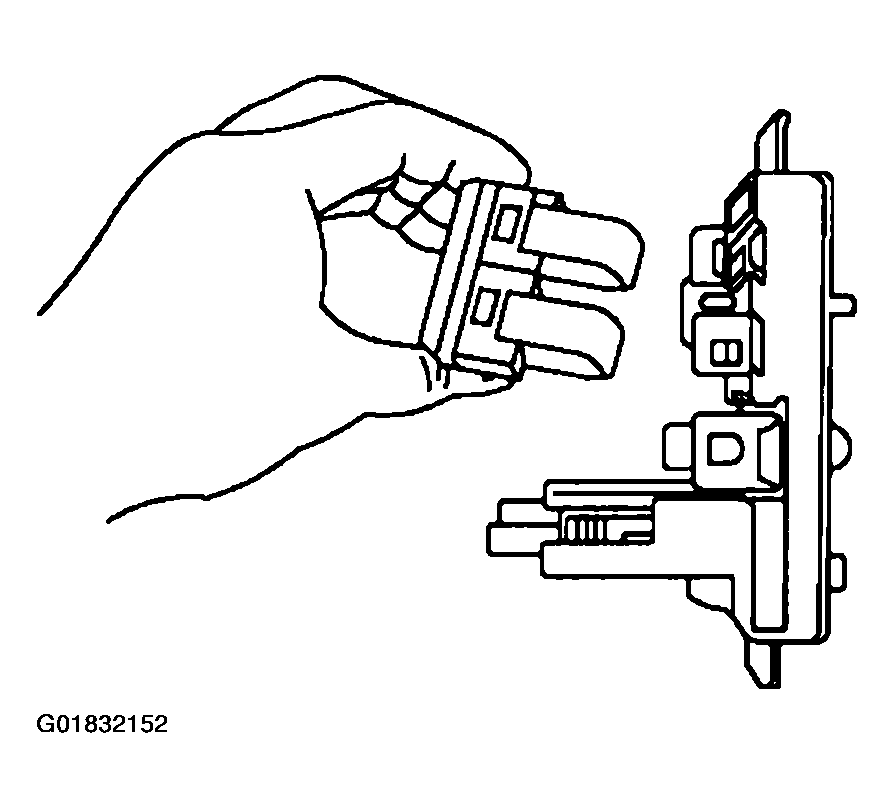

    Fig 2: Removing Fuel Door/Trunk Lid Switch From Switch Bank
    G01832152Courtesy of GENERAL MOTORS CORP.
