Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the retaining tabs of the fuel door/trunk lid switch to the IP switch blank.
  2. Install the fuel door/trunk lid switch to the IP switch blank.
  3. Install the IP switch bank. Refer to IP MULTIFUNCTION SWITCH ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.

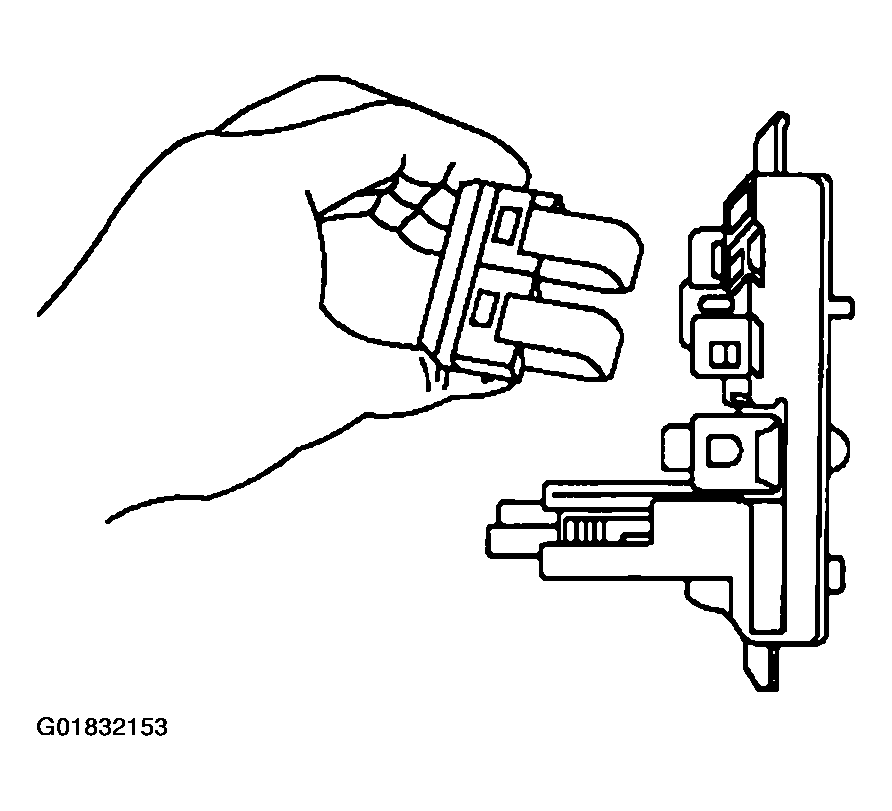

    Fig 1: Installing Fuel Door/Trunk Lid Switch To IP Switch Blank
    G01832153Courtesy of GENERAL MOTORS CORP.
