Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid .
  3. Remove the rear compartment lid ajar lamp/switch to rear compartment lid latch screw (5).
  4. Remove the compartment lid ajar lamp/switch (6) from the rear compartment lid latch (8).

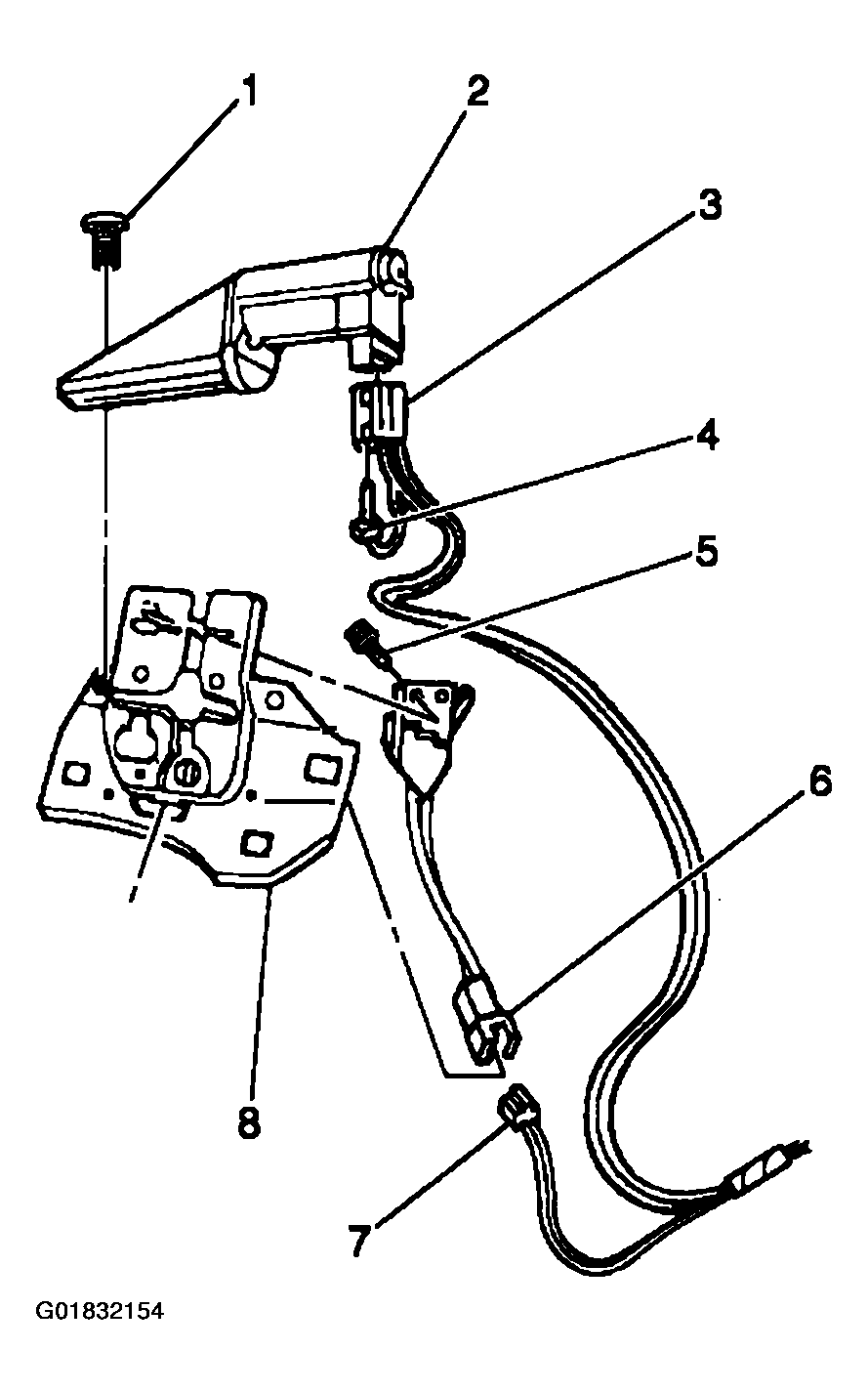

    Fig 1: Removing Compartment Lid Ajar Lamp/Switch From Rear Compartment Lid Latch
    G01832154Courtesy of GENERAL MOTORS CORP.
