Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid ajar lamp/switch (6) to the rear compartment lid latch (8).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear compartment lid ajar lamp/switch to rear compartment lid latch screw (5).

    Tighten

    Tighten the rear compartment lid ajar switch screw to 5 N.m (44 lb in).

  3. Install the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid
  4. Close the rear compartment.

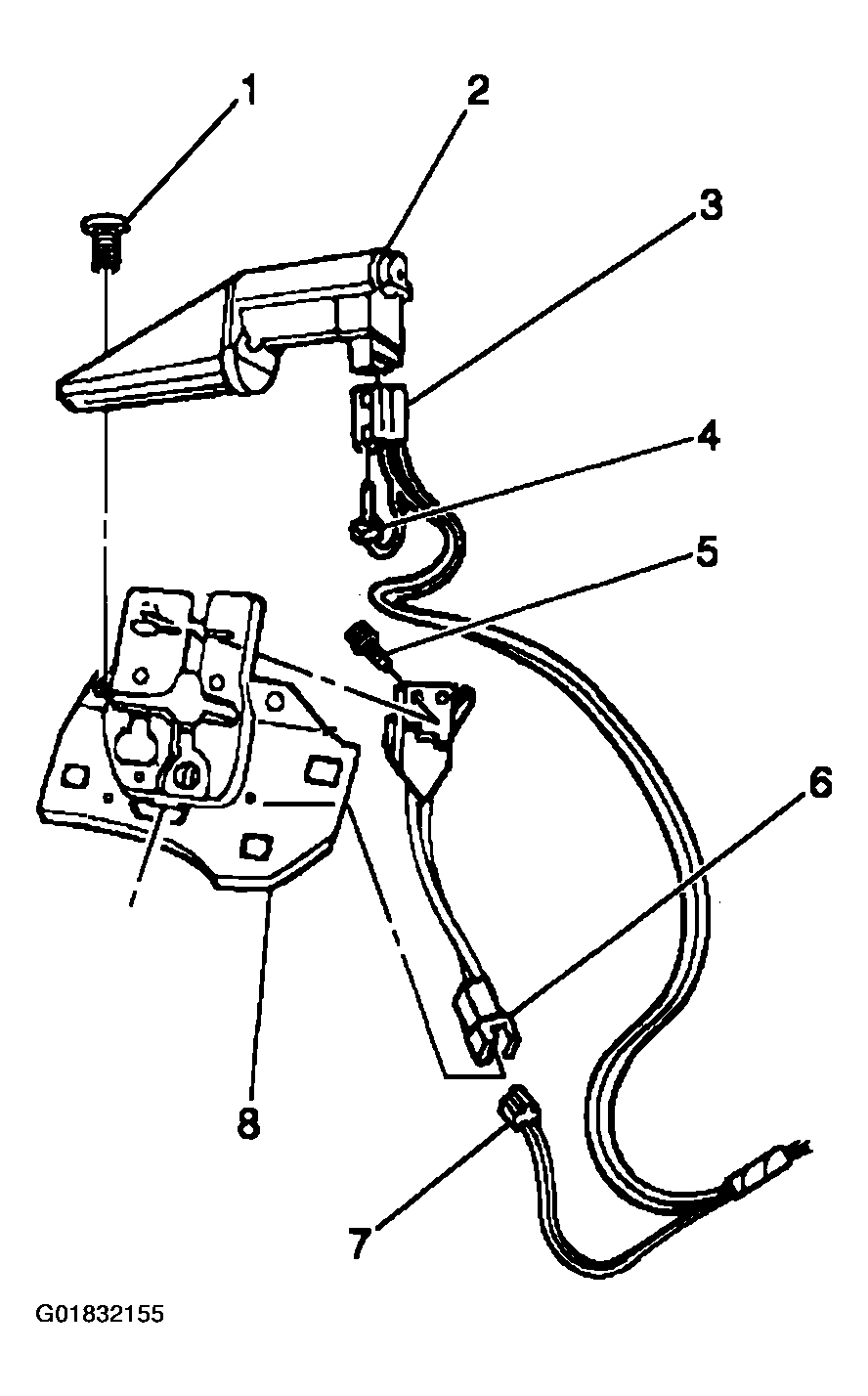

    Fig 1: Installing Compartment Lid Ajar Lamp/Switch From Rear Compartment Lid Latch
    G01832155Courtesy of GENERAL MOTORS CORP.
