Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER in Bumpers.
  3. Pull back the right side rear compartment trim as needed to access the pressure relief valve. Refer to Compartment Trim Panel Replacement - Rear .
  4. Use a small flat-bladed tool to remove the upper and lower retainers on the pressure release valve.
  5. Remove the pressure relief valve from the right lower quarter panel.

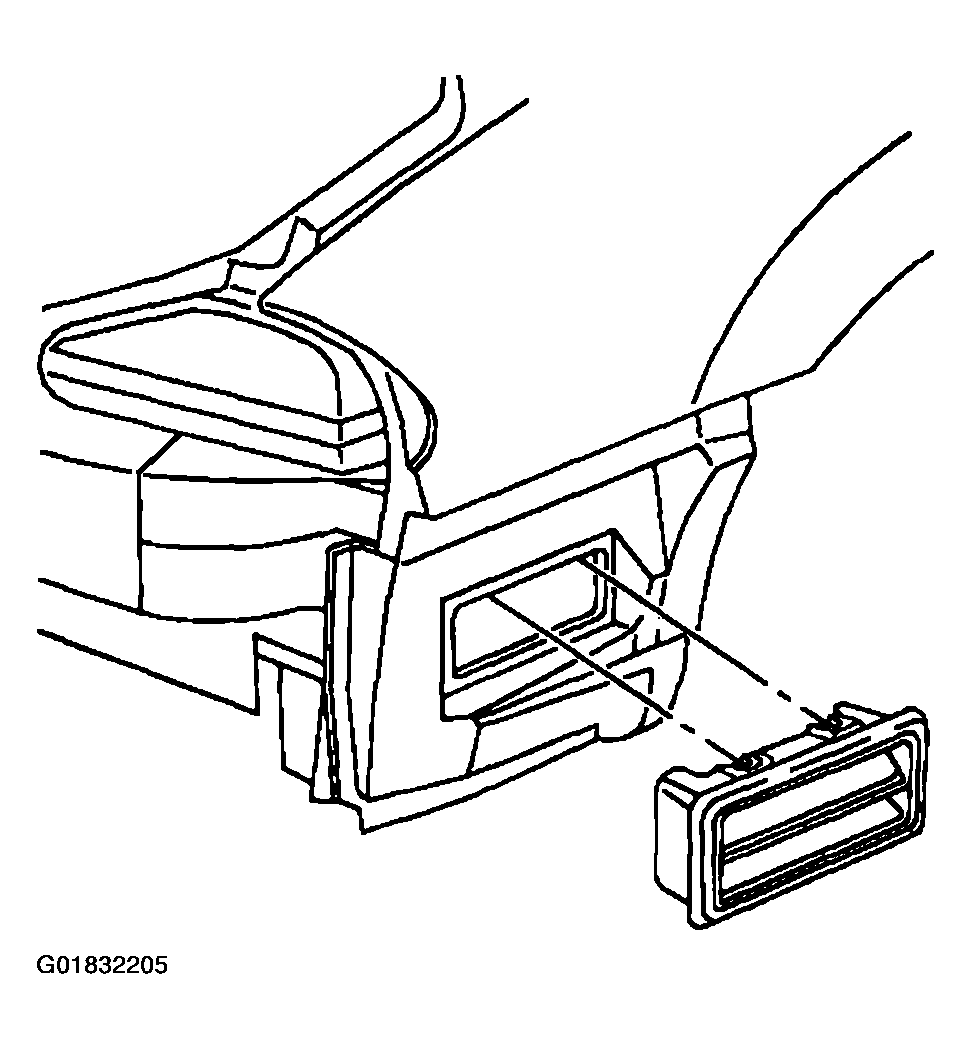

    Fig 1: Removing Pressure Relief Valve From Right Lower Quarter Panel
    G01832205Courtesy of GENERAL MOTORS CORP.
